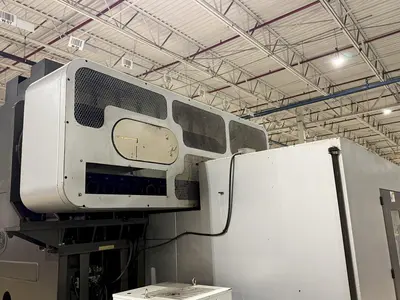

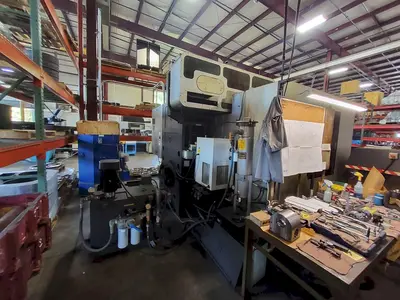

USED 2006 TOYODA BM-1600
Overview
Description

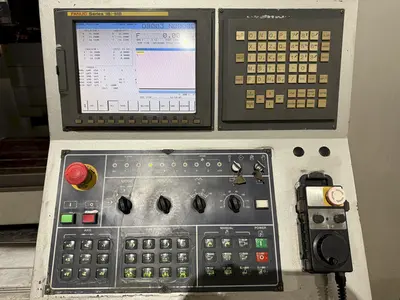

Fanuc 18i-MB CNC Control
Geared Head | CAT 50
Box Ways
Coolant Thru Spindle
Data Server
4th Axis Ready

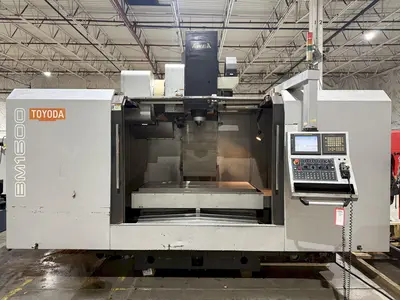

The Toyoda BM-1600 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
Specifications
CNC Control: yes
Control Type: Fanuc 18i-MB
# Axis: 3

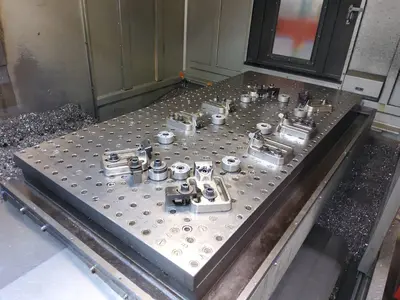

Table Size: 67" X 31.5"
Table Capacity: 4,409 pounds
X-Axis Travel: 63"
Y-Axis Travel: 31.5"
Z-Axis Travel: 31.5"
Rapid Traverse Rate (X/Y/Z): 787 ipm
Spindle Taper: CAT 50
Spindle Speed: 6,000 rpm
Main Motor: 25 hp
Tool Changer Capacity: 30
Coolant Thru Spindle: yes
Machine Dimensions: 185" x 128" x 122"
Machine Weight: 33,000 pounds
Equipped With

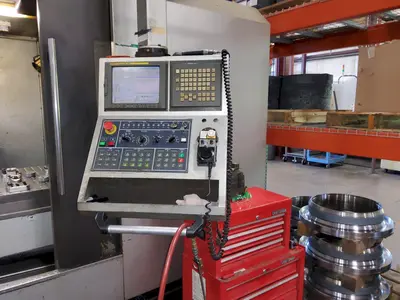

- Fanuc 18i-MB CNC Control
- Manual Guide
- Geared Head
- Coolant Thru Spindle

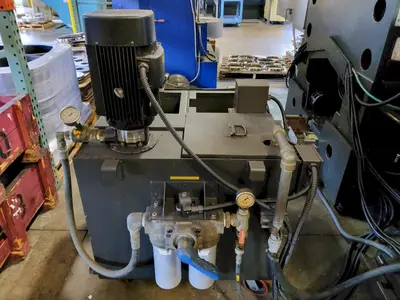

- Coolant unit with Filtration

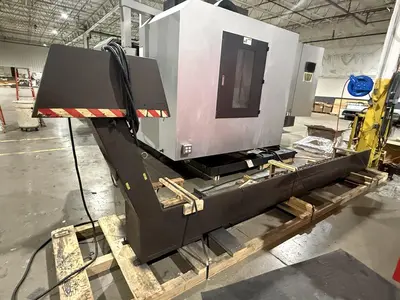

- Chip Conveyor
- Coolant Tank & Pump
