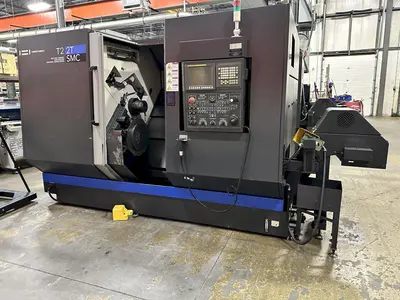

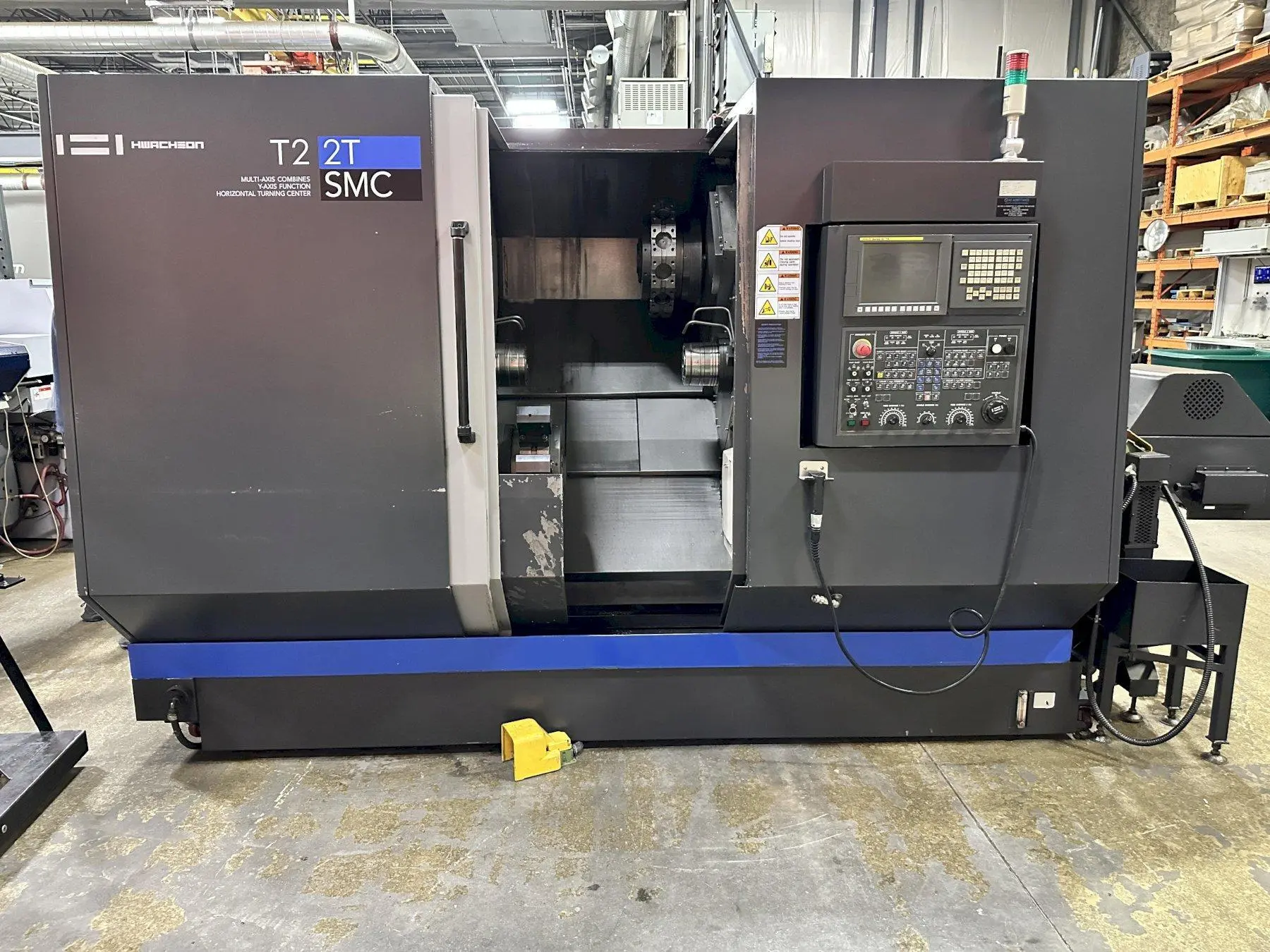

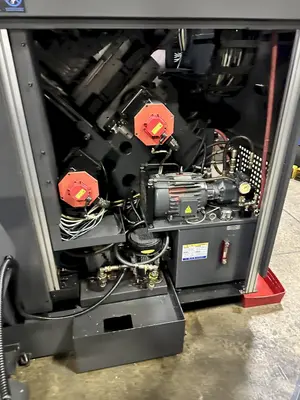

USED 2013 HWACHEON T2-2T SMC

- Fanuc 0i-TD CNC Control

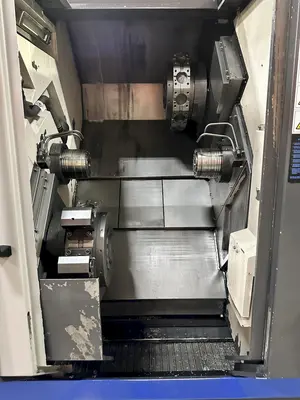

- Twin Spindle Twin Turret

- Live Tooling

- Tool Presetter

- Chip Conveyor

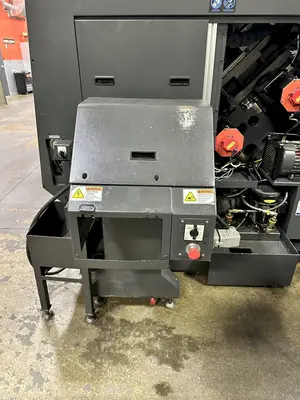

- Parts Conveyor
The Hwacheon T2-2T SMC is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

CNC Control: yes

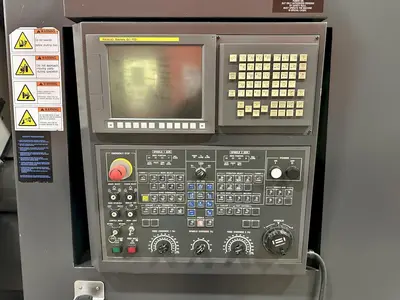

Control Type: Fanuc 0i-TD
# Axis: 7
Chuck Size: 8"
Swing: 34.6"
Turning Diameter: 18.1"
Center Distance: 24.5"
Bar Capacity: 2.56"
X Axis Travel: 9.65"
X2 Travel: 8.27"
Z Axis Travel: 20.47"
Z2 Travel: 20.47"
C1/C2 Axis Index: 0.001°
B Axis Travel (Sub Spindle): 21.62"
Y Axis: no
Spindle Nose: A2-6
Spindle Speed: 5,000 rpm
Main Motor: 20 hp

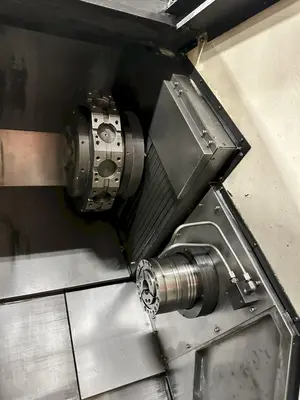

Sub Spindle: yes
Sub Spindle Chuck Size: 8"
Sub Spindle Speed: 5,000 rpm
Sub Spindle Motor: 20 hp
Live Tooling: yes
Live Tooling Speed: 6,000 rpm
Tailstock (Yes/No): no

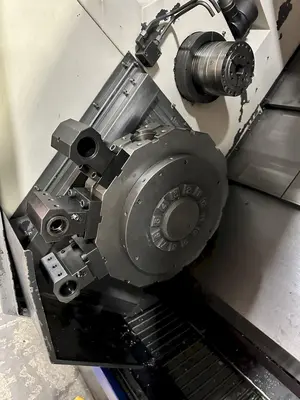

Number Of Turrets: 2
Turret Capacity: 12+12
Machine Dimensions: 122" x 86" x 83"
Machine Weight: 21,000 pounds

- Fanuc 0i-TD

- Live Tooling (Tools Included)

- Dual Spindle

- Twin Turret

- Box ways

- Transformer

- Chip Conveyor

- Draiken Oil Chiller

- Parts Conveyor
