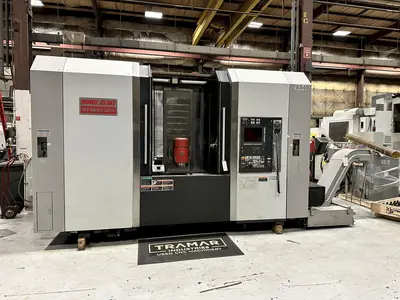

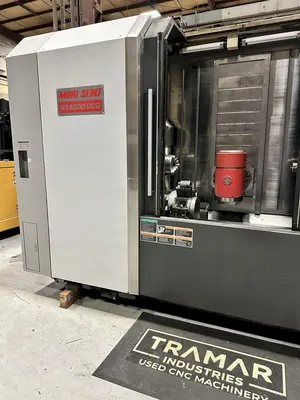

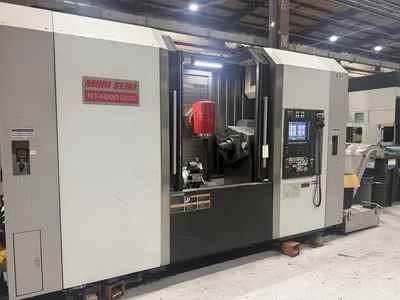

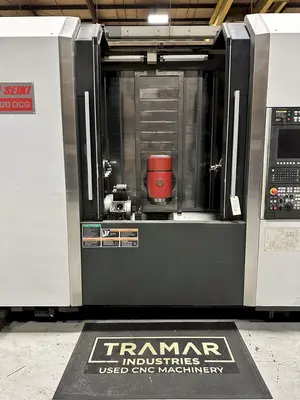

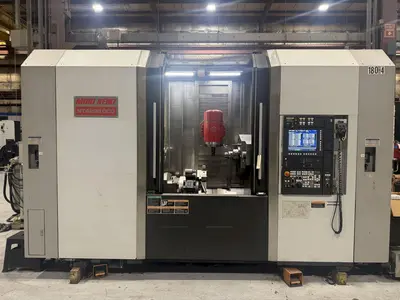

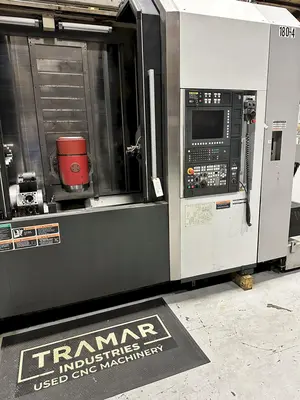

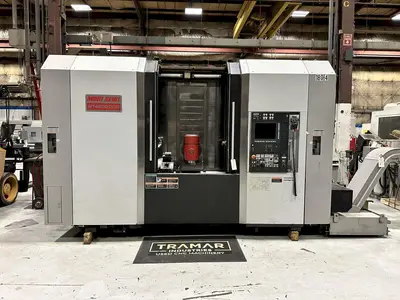

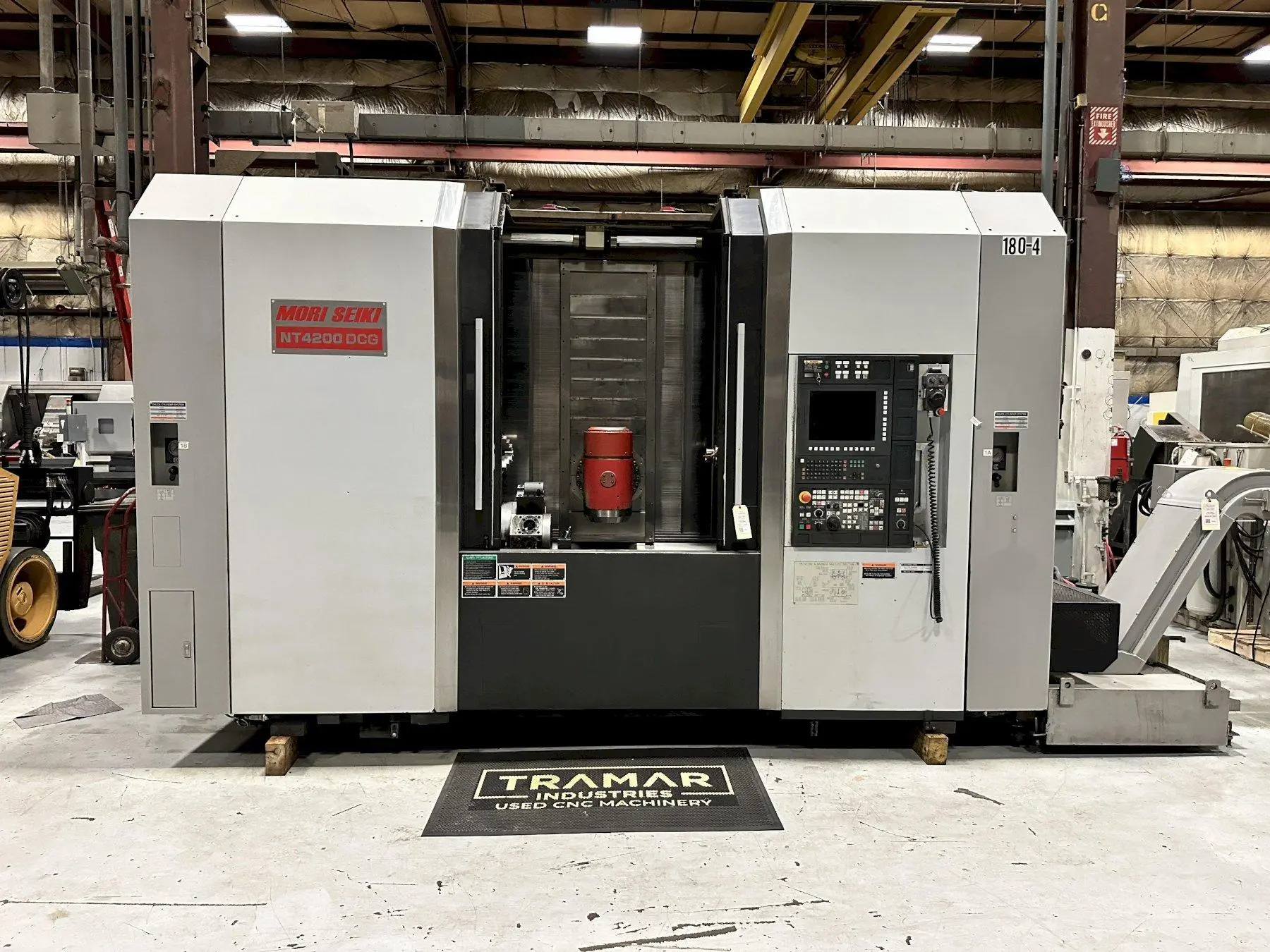

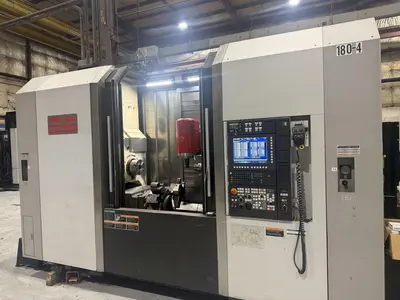

USED 2007 MORI SEIKI NT4200/1000SZ

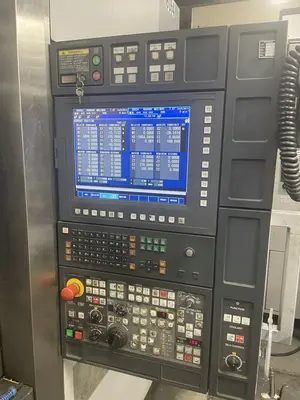

Fanuc Control

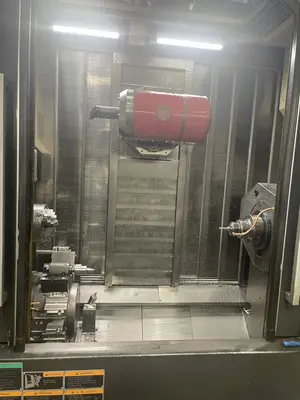

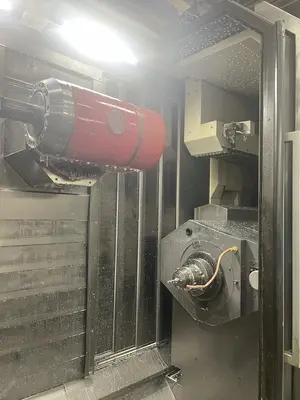

Milling Spindle

Y Axis | Sub Spindle

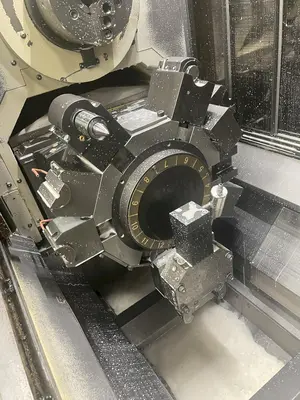

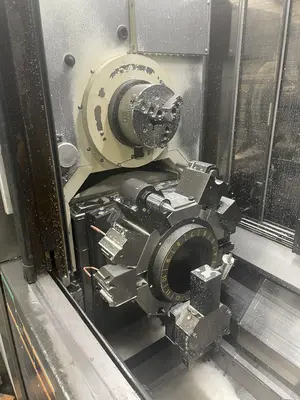

Lower Turret w/Hyd. Steady Rest

HP Coolant Thru Spindle
The Mori Seiki NT4200/1000SZ is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

CNC Control: yes

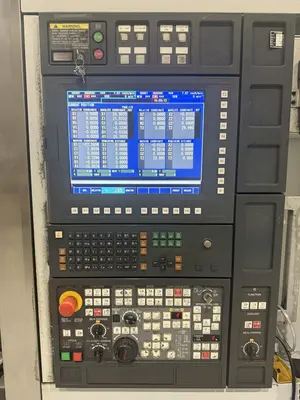

Control Type: Fanuc

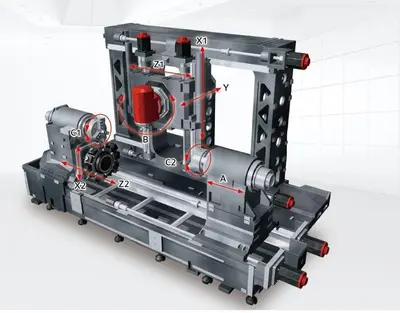

# Axis: 9
Swing: 28.7"
Turning Diameter: 25.9"
Turning Diameter Lower Turret: 13.7"
Center Distance: 42.5"
Bar Capacity: 2.5"
X Axis Travel: 29.5"
X2 Axis Travel: 7.7"
Y Axis Travel: 8.3"
Z Axis Travel: 44.1"
Z2 Axis Travel: 39.8"
B Axis Indexing: +/- 120°
C1/C2 Axis Index: 0.0001°
Spindle Nose: A2-6
Spindle Speed: 5,000 rpm
Main Motor: 30 hp
Tailstock: no
Y Axis: yes
Live Tooling: yes
Milling Spindle Taper: Capto C6
Live Tooling Speed: 12,000 rpm - Milling Spindle
Live Tooling Motor: 25 hp
Sub Spindle: yes
Sub Spindle Bar Capacity: 2.5"
Sub Spindle Nose: A2-6
Sub Spindle Speed: 5,000 rpm
Sub Spindle Motor (HP): 30 hp
Turret Capacity: 12 Stations Lower Turret
ATC Capacity: 100 Stations
Machine Weight: 49,700 pounds

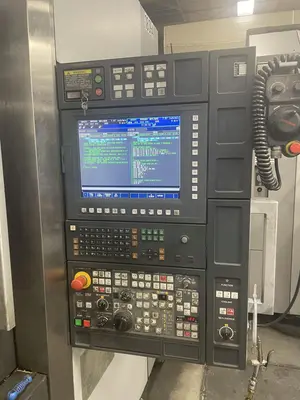

- Fanuc CNC Control
- MAPPS Conversational Programing

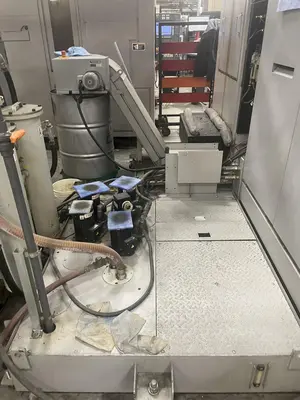

- Chip Conveyor
- Coolant Tank & Pump
- Milling Spindle
- Lower Turret
- Sub Spindle
- Y Axis
- Hyd. Steady Rest on Lower Turret

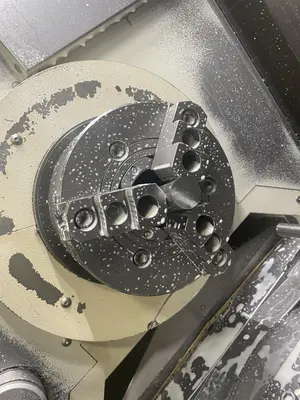

- 8" Chuck on Main Spindle

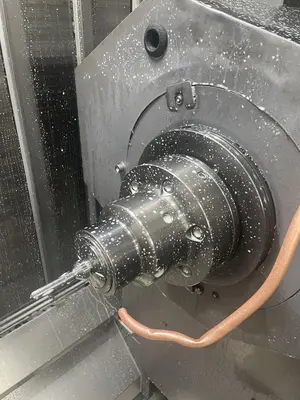

- Collet Chuck on Sub Spindle
- Probing
- Coolant Thru Spindle - High Pressure
- Chip Blaster Unit
- Dimensions are 116"W x 232"L x 116"H
