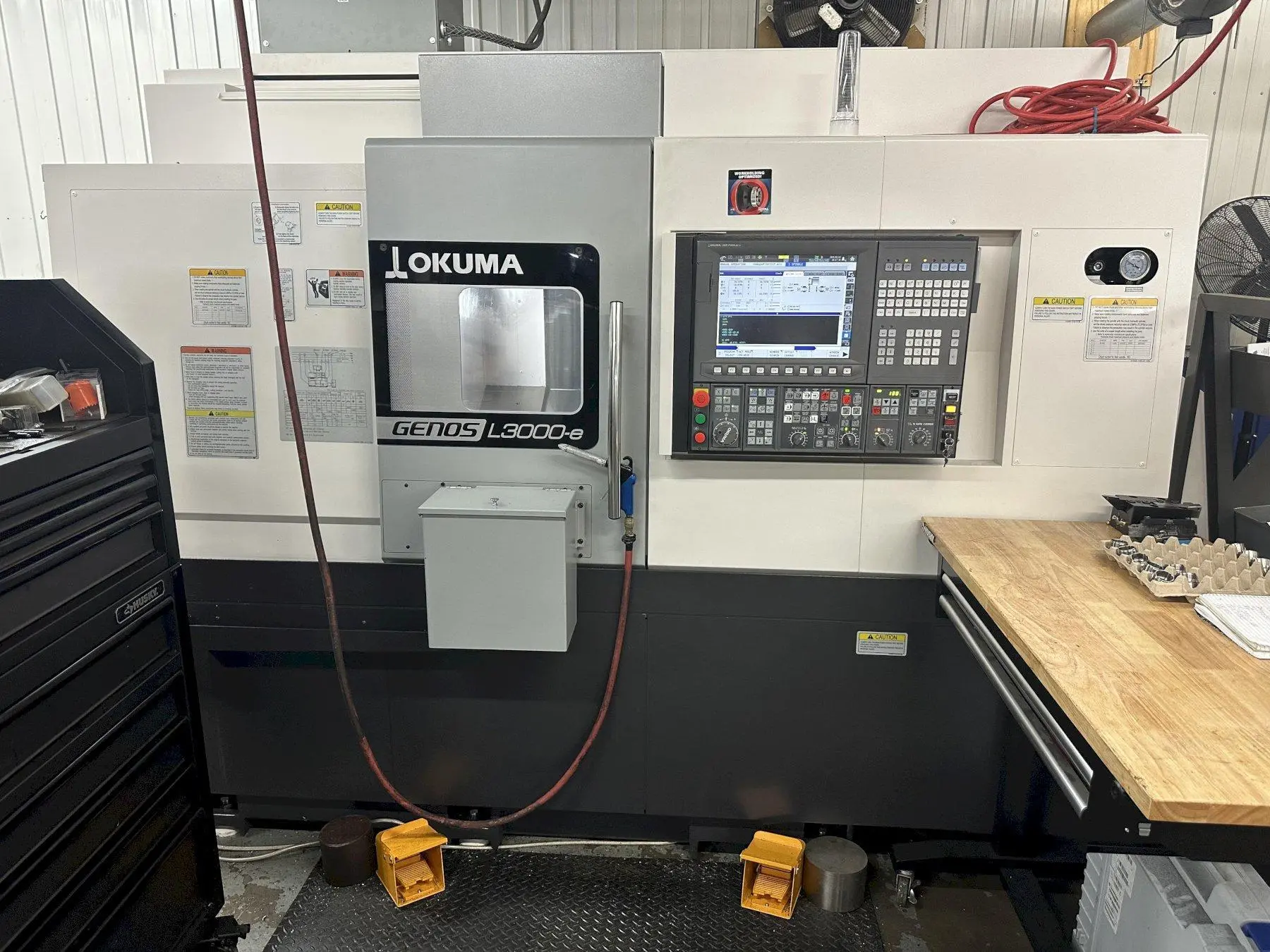

USED 2024 OKUMA GENOS L3000MYW

- LIKE NEW - Only 35 Cutting Hours

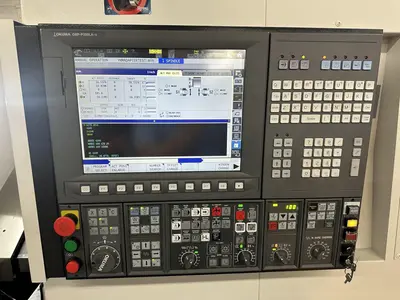

- Okuma OSP-P300LA-e CNC Control

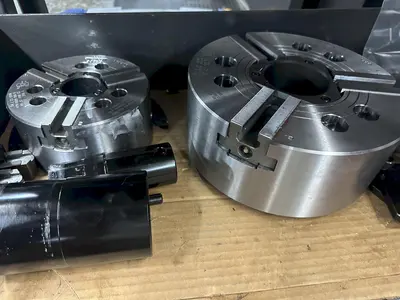

- 10" 3-Jaw Hydraulic Chuck (Main Spindle)

- 6" 3-Jaw Hydraulic Chuck (Sub Spindle)

- Bar Feed Interface

- Parts Catcher

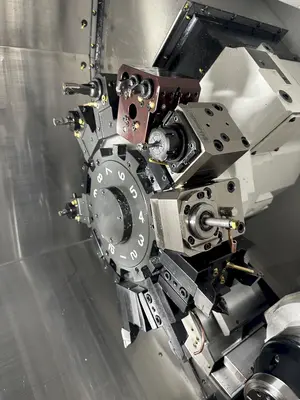

- Live Tooling

- Sub Spindle

- Y Axis

- One Touch IGF

- (4) Live Tool Holders Included

- Static Holders As Shown on Turret Included
The Okuma Genos L3000MYW is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

CNC Control: yes
Control Type: OSP-P300LA-e
# Axis: 5
Swing: 20.47"
Turning Diameter: 15.35"
Center Distance: 20.47"
Chuck Size: 10"
Bar Capacity: 3.15"
X Axis Travel: 9.25"
Y Axis Travel: 3.94"
Z Axis Travel: 18.11"
B Axis Travel (Sub Spindle): 20.47"
C Axis Index: 0.001°
Spindle Nose: A2-8
Spindle Speed: 3,800 rpm
Main Motor: 30 hp
Tailstock: no
Y Axis: yes
Live Tooling: yes
Live Tooling Speed: 6,000 rpm
Live Tooling Motor: 7.5 hp
Sub Spindle: yes
Sub Spindle Nose: 140 Flat
Sub Spindle Chuck: 6"
Sub Spindle Bar Capacity: 2.09"
Sub Spindle Speed: 6,000 rpm
Sub Spindle Motor (HP): 10 hp
Turret Capacity: 12
Machine Dimensions: 120" x 79" x 90"
Machine Weight: 13,200 pounds

-
LIKE NEW -
Only 35 Cutting Hours
- Okuma OSP-P300LA-e CNC Control

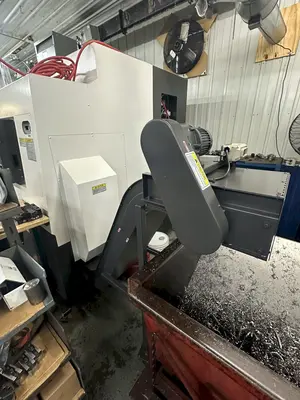

- Chip Conveyor
- 10" 3-Jaw Hydraulic Chuck (Main Spindle)
- 6" 3-Jaw Hydraulic Chuck (Sub Spindle)
- Bar Feed Interface
- Parts Catcher
- (4) Live Tool Holders
- Static Holders As Shown on Turret Included
- Live Tooling
- Sub Spindle
- Y Axis
- One Touch IGF (Conversational Programming)
- Collet Chuck Shown
NOT INCLUDED
