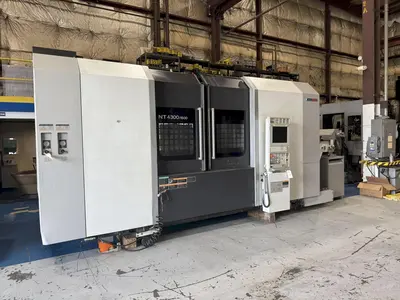

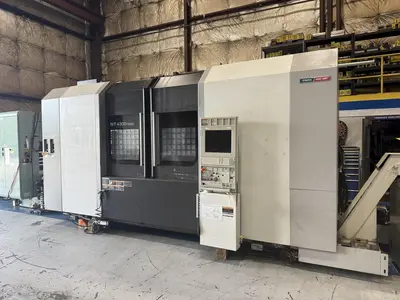

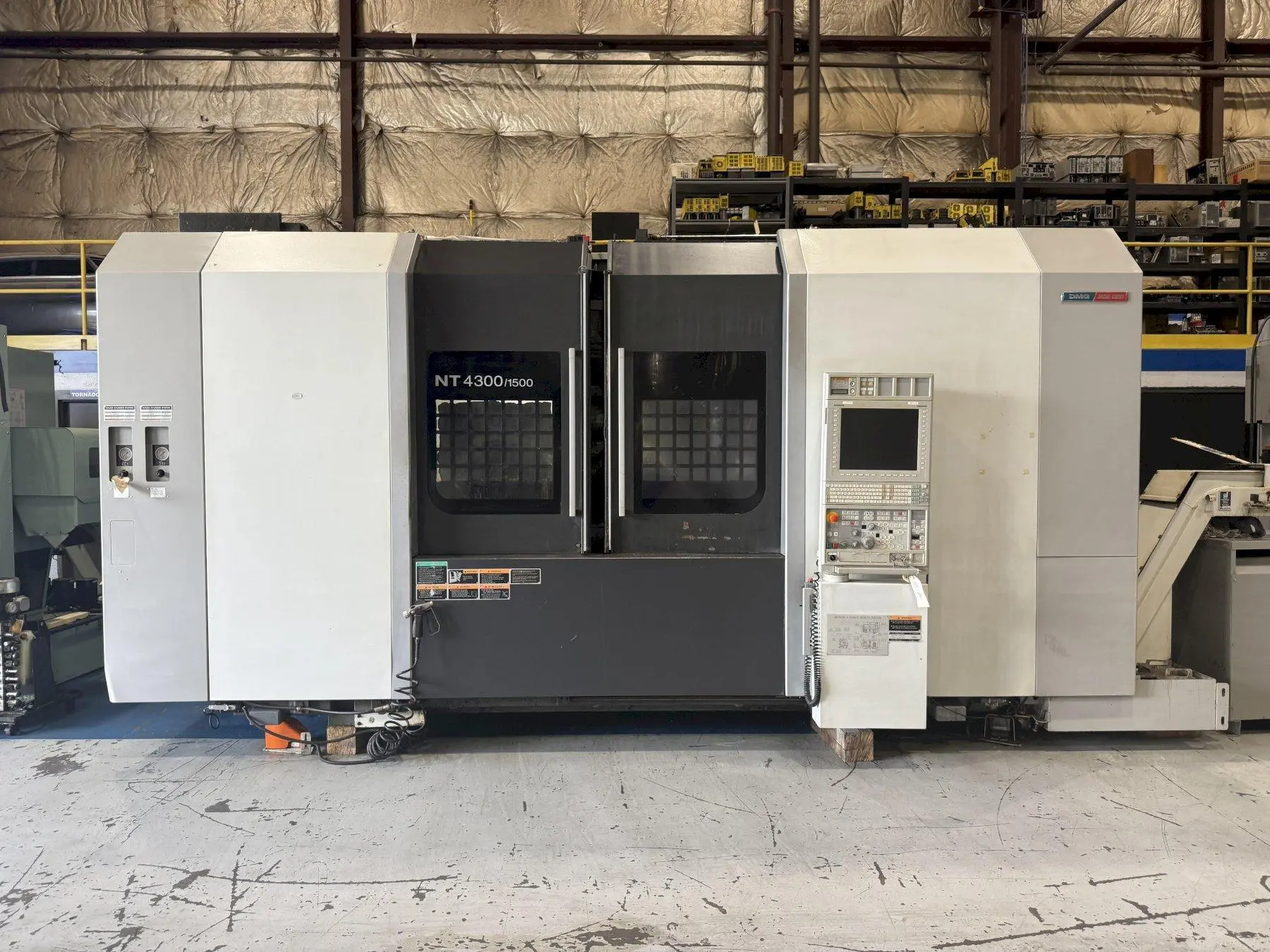

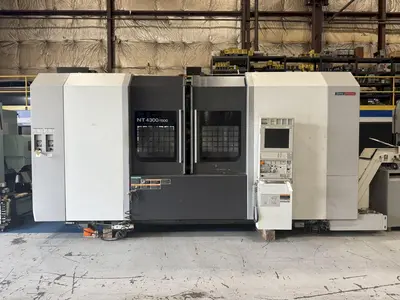

USED 2013 MORI SEIKI NT4300DCG/1500 SZ
Overview
Description
Fanuc 31iA CNC Control

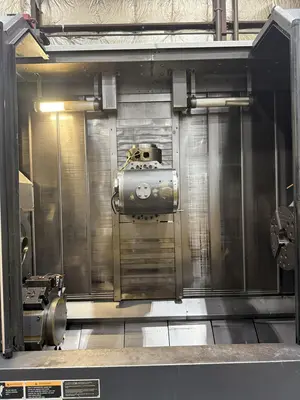

B-Axis Milling Head +/-120°
12,000 rpm Milling Spindle
100 Station ATC - CAPTO C6
Renishaw Probing

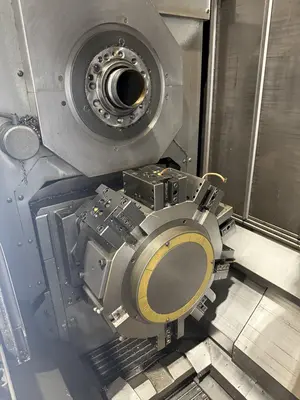

Lower Turret & Sub Spindle
The Mori Seiki NT4300DCG/1500 SZ is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
Specifications
CNC Control: yes
Control Type: Fanuc 31iA
# Axis: 9
Swing: 28.7"
Turning Diameter: 25.9"
Turning Diameter Lower Turret: 13.78"
Sub Spindle Motor (HP): 30/25 hp"

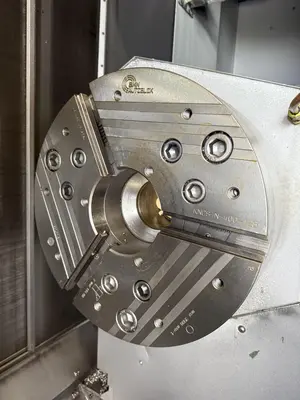

Chuck Size: 15"
Bar Capacity: 3.54"
X Axis Travel: 29.53"
X2 Axis Travel: 7.68"
Y Axis Travel: 8.27"
Z Axis Travel: 61.02"
Z2 Axis Travel: 60.04"
B Axis Rotation Range: +/- 120°
B Axis Indexing: 0.0001°
C1/C2 Axis Index: 0.001°
Spindle Speed: 4,000 rpm
Main Motor: 30 hp
Sub Spindle: yes

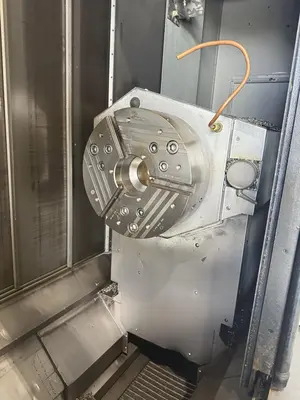

Sub Spindle Chuck: 15"
Sub Spindle Speed: 4,000 rpm
Milling Spindle Taper: Capto C6

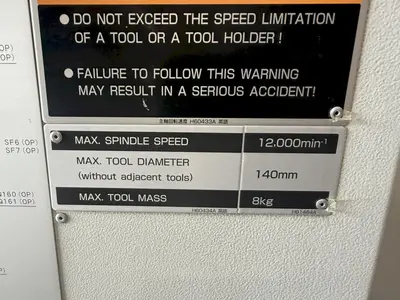

Milling Spindle Speed: 12,000 rpm

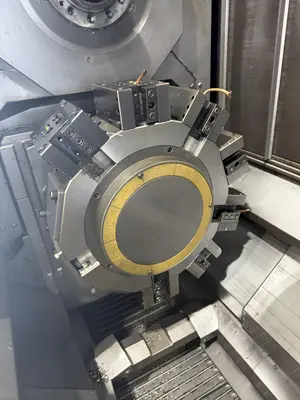

Turret Capacity: 10 Stations - Lower Turret
Tailstock: no
Y Axis: yes
Machine Weight: 59,000 pounds
Equipped With
- Fanuc 31iA CNC Control
- Full B Axis Milling Head
- Renishaw Probing (Receiver)
- Scale Feedback on X
- Chip Blaster High Pressure Coolant Unit
- Chip Conveyor
- Tool Presetter
- 100 Station Automatic Tool Changer ATC (Option)
- Assorted Capto Tools
- Hobbing Function Software ($$ OPTION)
- Transformer
- Chiller
