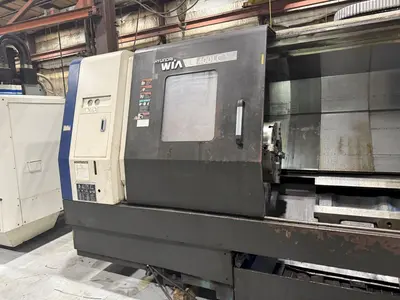

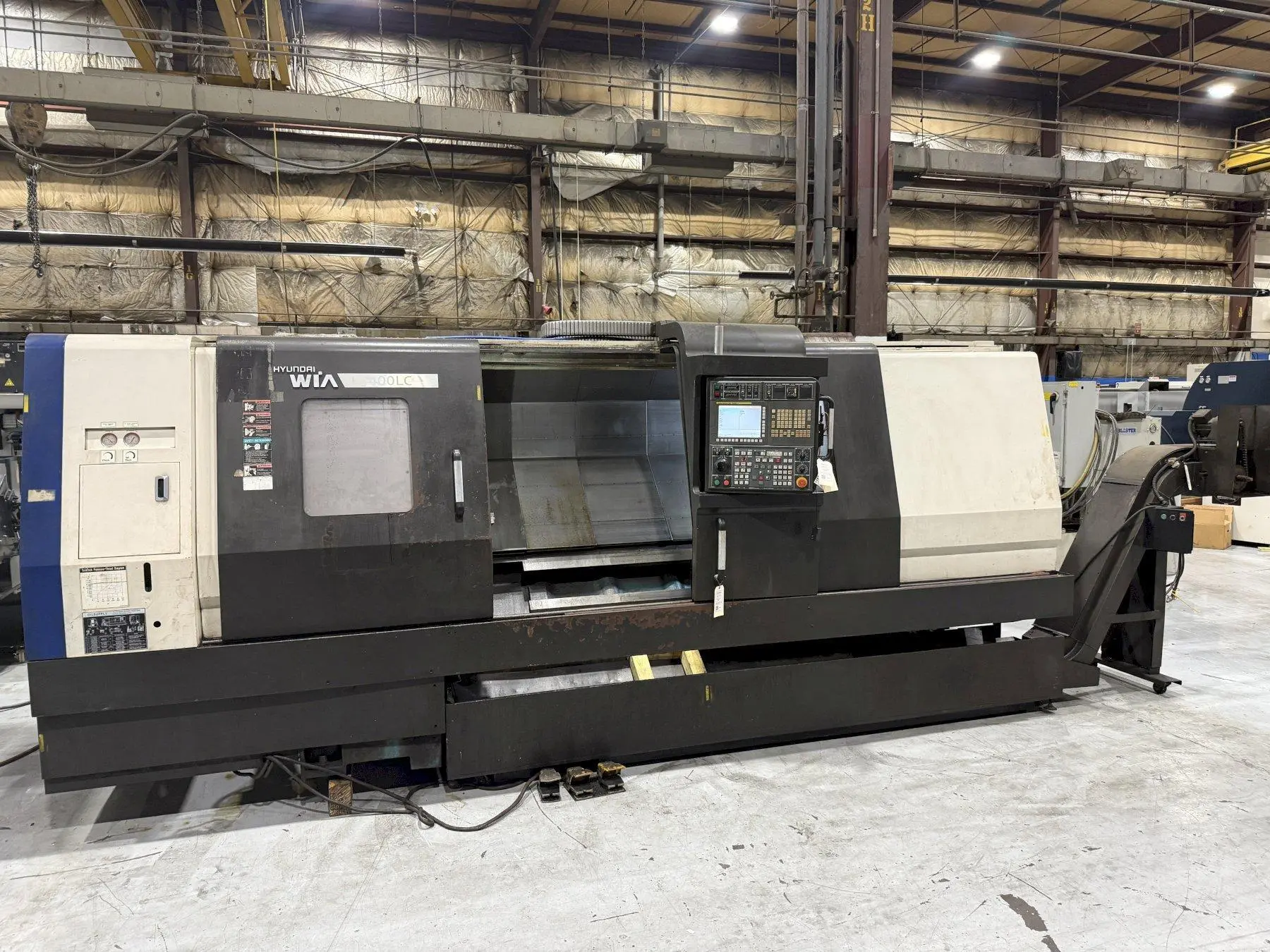

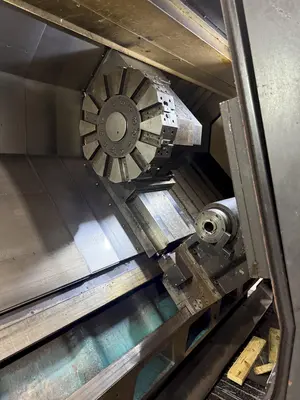

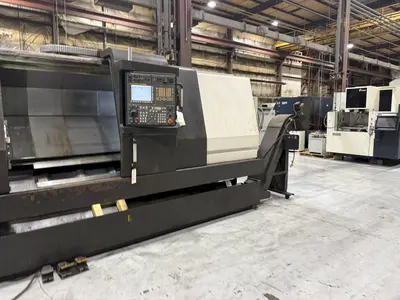

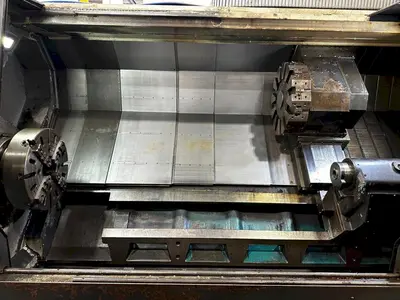

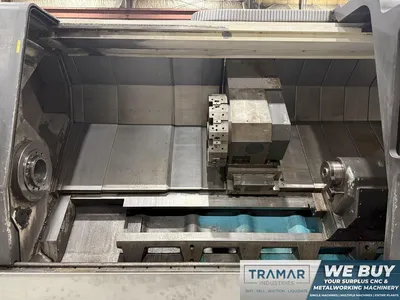

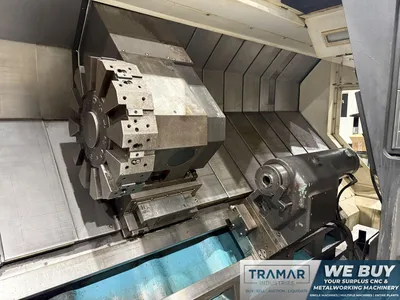

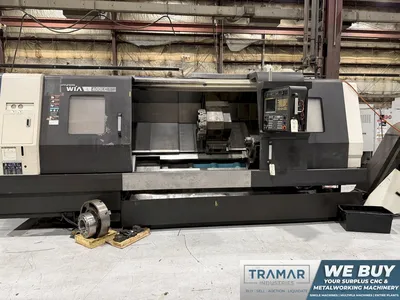

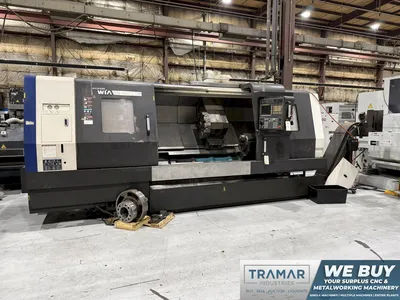

USED 2012 HYUNDAI WIA L400LC
Overview

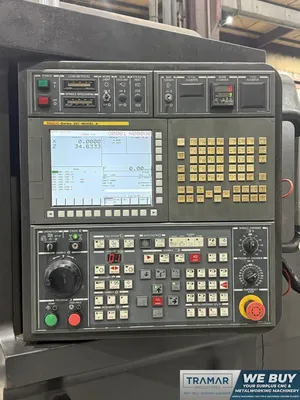

Fanuc 32i-Model A CNC Control
Swing: 28.5" x 83.5" Center Distance
5.1" Spindle Bore
2,000 rpm | 50 hp

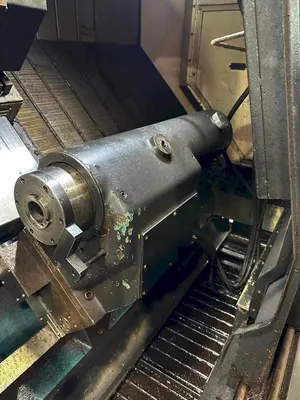

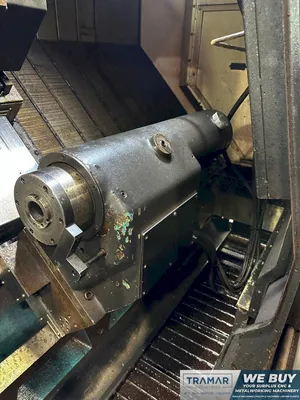

Tailstock
The Hyundai WIA L400LC is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
Specs
CNC Control: yes

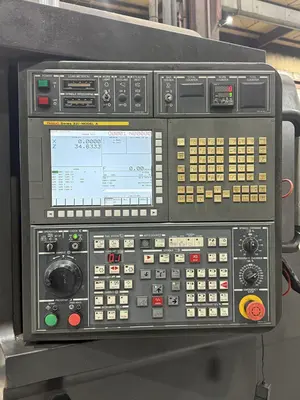

Control Type: Fanuc 32i-Model A
# Axis: 2
Swing: 28.5"
Turning Diameter: 24.8"
Center Distance: 83.5"

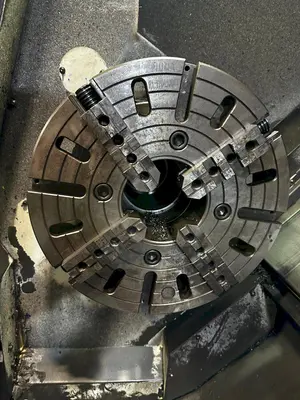

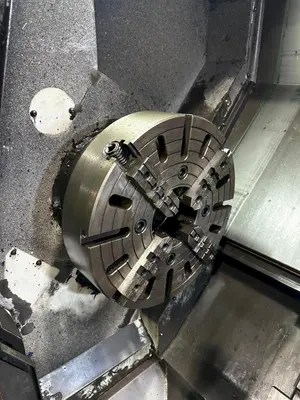

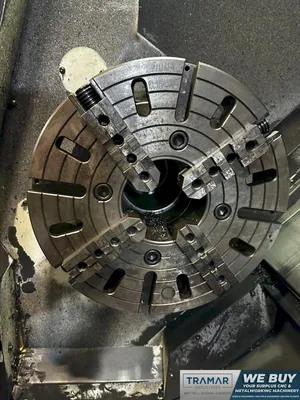

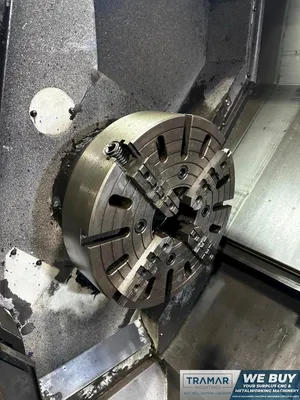

Chuck Size: 20"
X-Axis Travel: 12.6"
Z-Axis Travel: 86.6"
Spindle Bore: 5.1"
Spindle Nose: A2-11
Spindle Speed: 2,000 rpm
Main Motor: 50 hp

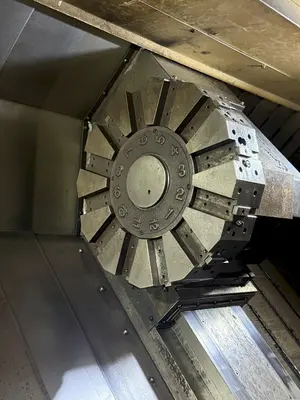

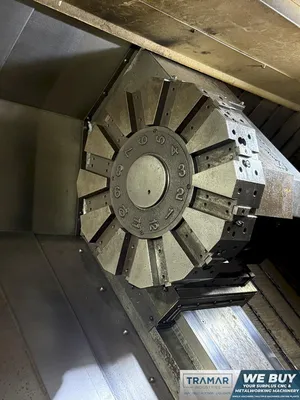

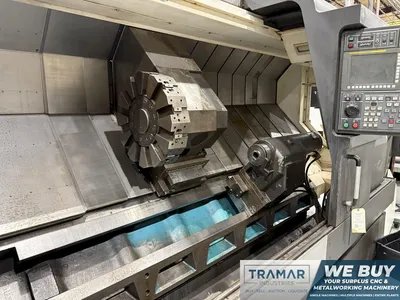

Turret Capacity: 12
Tailstock (Yes/No): yes
Live Tooling: no
Y Axis (Yes / No): no
Sub Spindle: no
Machine Dimensions: 215" x 83" x 85"
Machine Weight: 24,500 pounds
Equipped With
- Fanuc 32i-Model A CNC Control
- LNS Chip Conveyor
- Coolant Tank & Pump
- Gear Box
- Tailstock
- Embedded Ethernet
