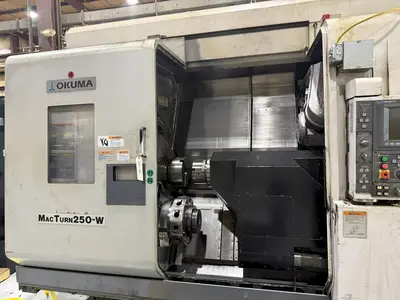

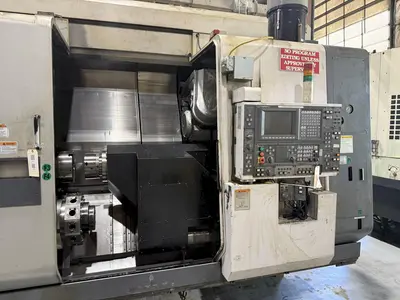

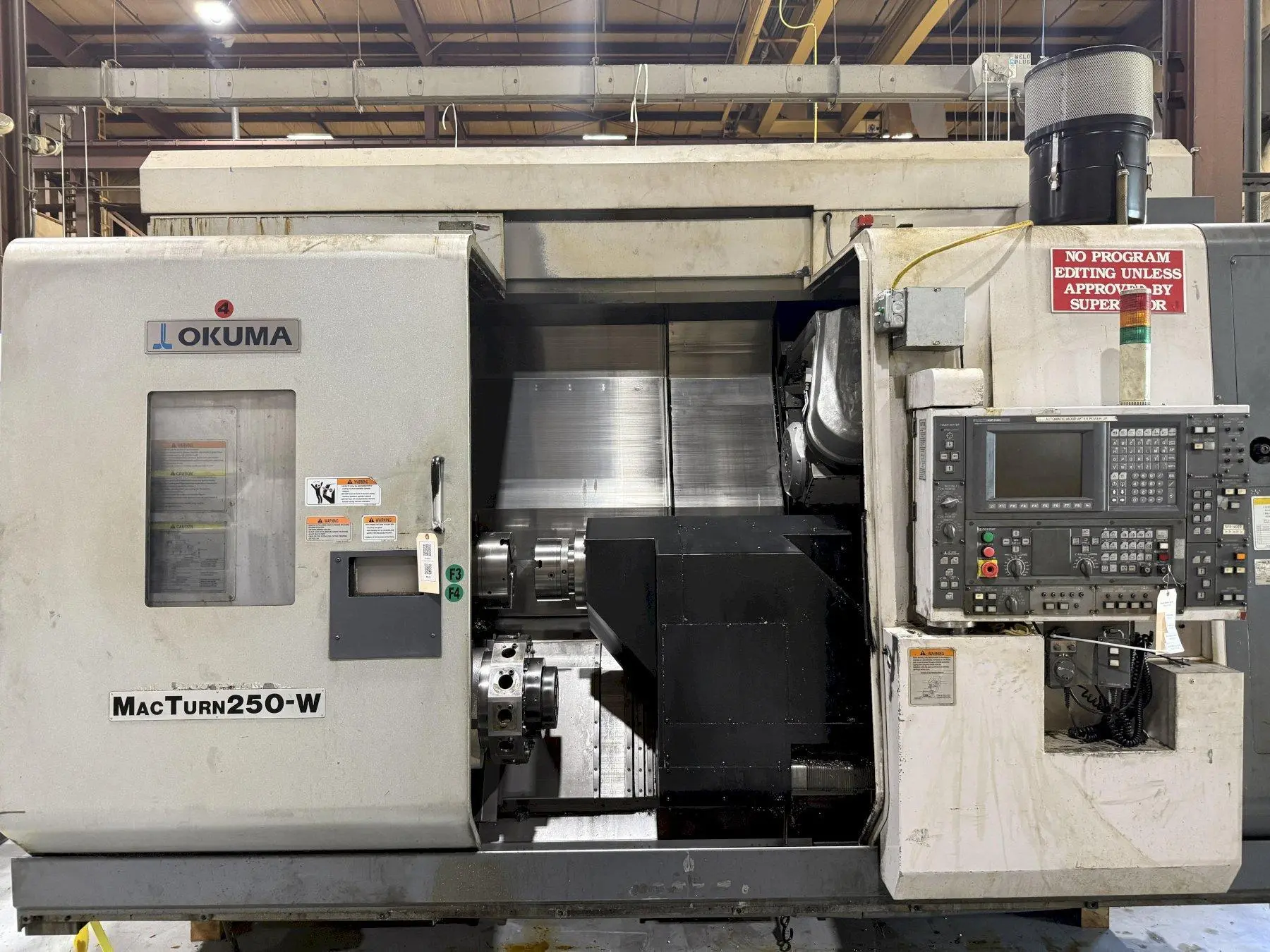

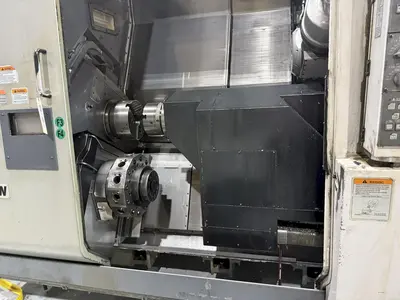

USED 2004 OKUMA MACTURN 250-W
Overview
OSP-E100L CNC Control

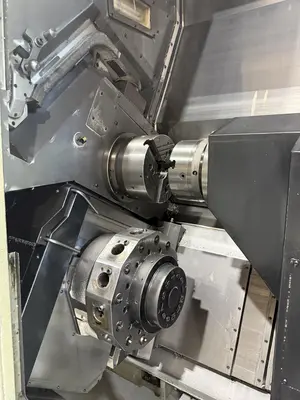

Lower Turret

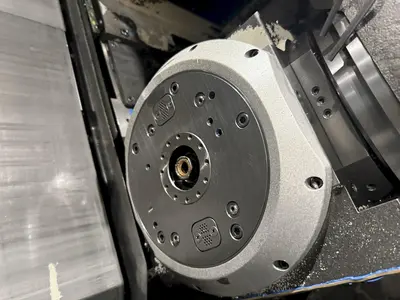

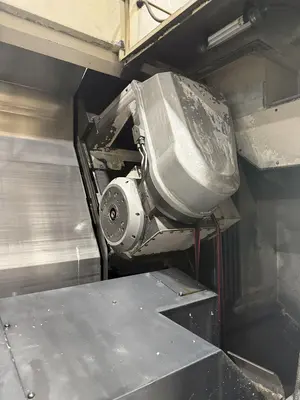

Milling Spindle - 12k rpm | HSK-63
Sub Spindle
Y Axis
The Okuma Macturn 250-W is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
Specs
CNC Control: yes

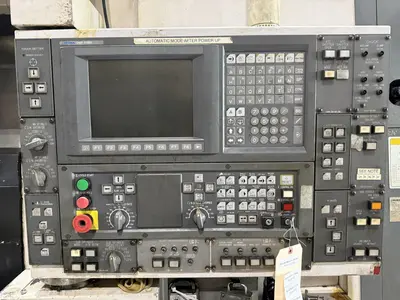

Control Type: OSP-E100L
# Axis: 8
Swing: 20.87"
Turning Diameter: 21.65"
Turning Diameter Lower Turret: 9.05"
Center Distance: 39.37"
Chuck Size: 8"
Bar Capacity: 2.04"
X Axis Travel: 18.58"
X2 Travel: 6.29"
Y Axis Travel: 6.3"
Z Axis Travel: 46.06"
Z2 Travel: 45.47"
W-Axis Travel (Sub Spindle): 46.45"
B Axis Indexing: +105° to -105° = 210° Total Degrees (1° Step)
C1/C2 Axis Index: 0.001° Degrees
Rapid Traverse (X/Y/Z): 1,181/1,023/1,575 ipm
Spindle Nose: A2-6
Spindle Speed: 5,000 rpm
Main Motor: 20 hp
Tailstock: no
Y Axis: yes
Live Tooling: yes
Milling Spindle Taper: HSK-63
Live Tooling Speed: 12,000 rpm - Milling Spindle
Live Tooling Motor: 10 hp
Sub Spindle: yes
Sub Spindle Bar Capacity: 1.69"
Sub Spindle Nose: 140 Flat
Sub Spindle Speed: 6,000 rpm
Sub Spindle Motor (HP): 15 hp
Turret Capacity: 12
ATC Capacity: 44 Stations
Machine Dimensions: 151" x 100" x 115"
Machine Weight: 28,000 pounds
Equipped With
- OSP-E100L CNC Control
- Chip Conveyor
- Coolant Tank
- Lower Turret
- Milling Spindle - HSK-63
- Sub Spindle
- Y Axis
- Mist Collector
- Tool Presetter
- Transformer on Machine
