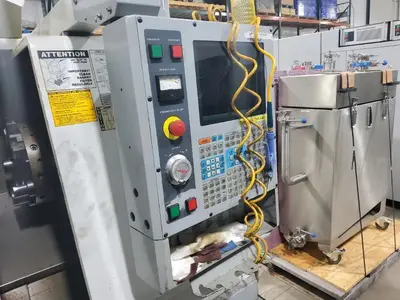

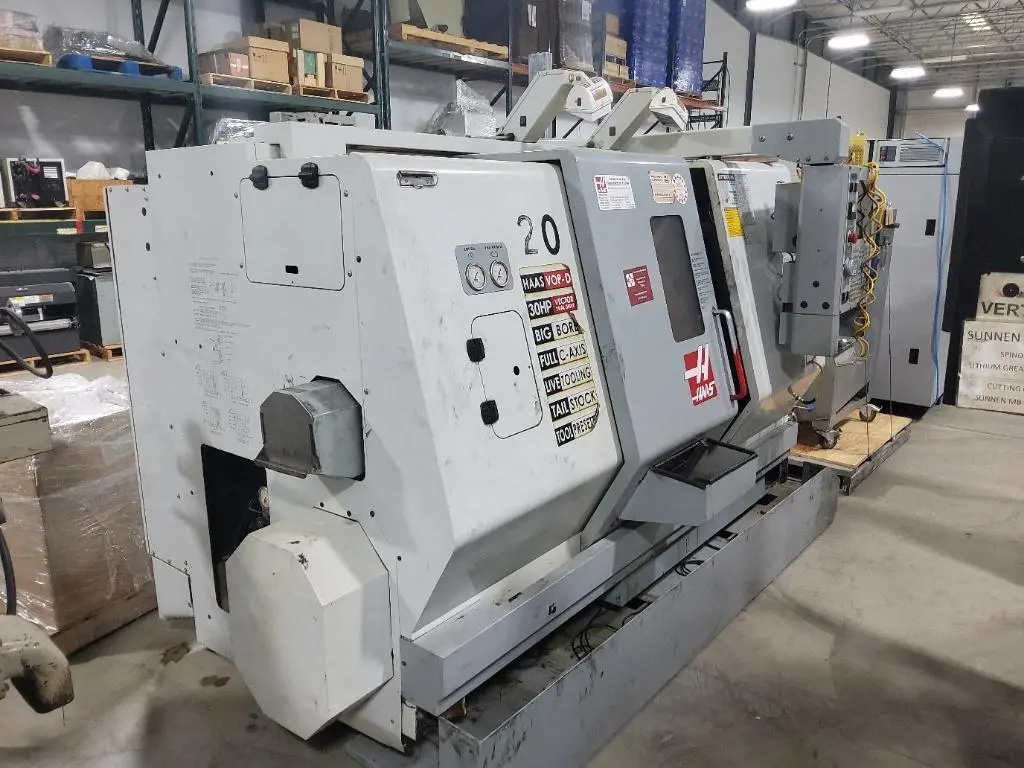

USED 2002 HAAS SL-20TB

Haas CNC Control

Live Tooling - Full C-axis

Tailstock

Tool Presetter

Big Bore
The Haas SL-20TB is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

CNC Control: yes
Control Type: Haas
# Axis: 3
Swing: 23"
Turning Diameter: 10.3"
Center Distance: 23"
Chuck Size: 10"
Bar Capacity: 2.5"
X-Axis Travel: 8.45"
Z-Axis Travel: 20"
C-Axis: 0.001°
Rapid Traverse (X/Z): 710 ipm
Spindle Speed: 3,400 rpm
Main Motor: 30 hp
Turret Capacity: 10
Tailstock (Yes/No): yes
Live Tooling: yes
Live Tooling Speed: 4,000 rpm
Live Tooling Motor: 5 hp
Y Axis (Yes / No): no
Sub Spindle: no
Machine Dimensions: 150" x 90" x 90"
Machine Weight: 16,000 pounds

- Haas CNC Control
- Tailstock
- Big Bore
- Live Tooling
- Tool Presetter
