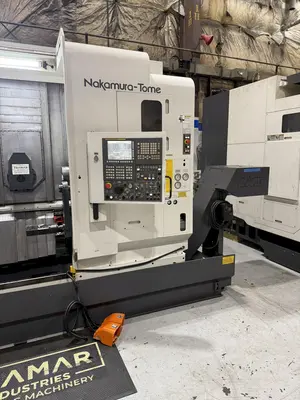

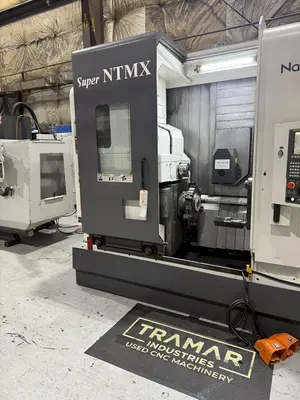

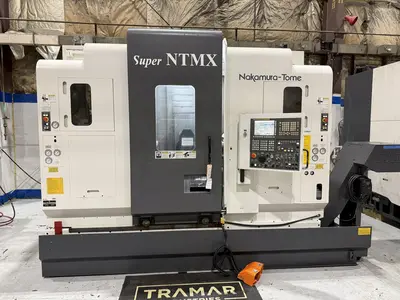

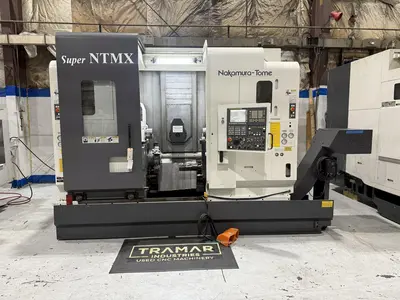

USED 2011 NAKAMURA-TOME SUPER NTMX

- Fanuc Series 31-Model A5 CNC Control

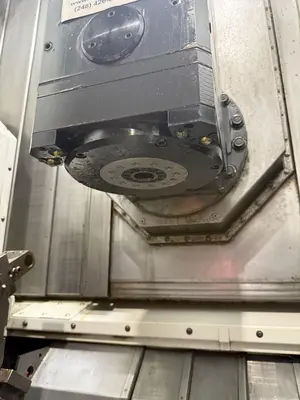

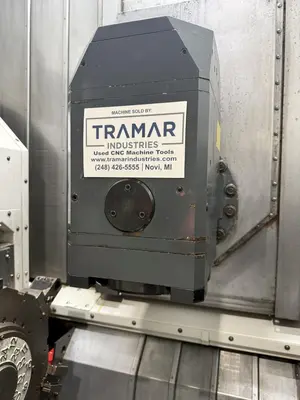

- Milling Spindle - 12,000 rpm | CAPTO C4

- Dual 24 Station Tool Changers

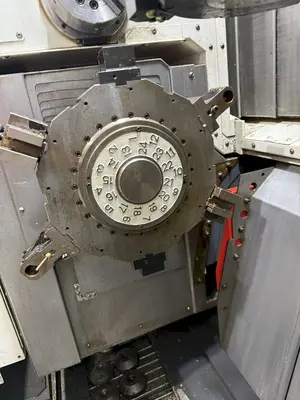

- Lower Turret (24 Stations)

- Y Axis Capabilities

- Sub Spindle
The Nakamura-tome Super NTMX is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

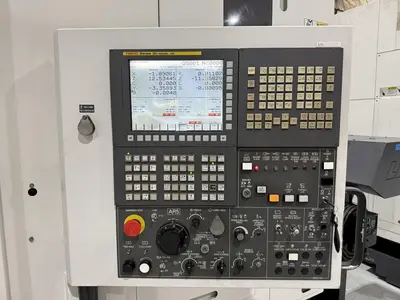

Control Type: Fanuc Series 31-Model A5
CNC Control: yes
# Axis: 9
Turning Diameter: 8.66"
Center Distance: 38.58"

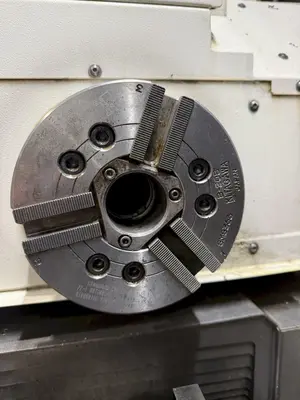

Chuck Size: 6"
Bar Capacity: 2"
X Axis Travel: 22.44"
X2 Axis Travel: 5.14"
Z Axis Travel: 51.06"
Z2 Axis Travel: 25.9"
Y Axis Travel: 7.86 (+/- 3.94")
B Axis Travel (Sub Spindle): 30.3"
B Axis Indexing: 190° (+/- 95°)
C1/C2 Axis Index: 0.001°
Rapid Traverse (X/Y/Z): 1,181/630/1,574 ipm
Spindle Nose: A2-5
Spindle Speed: 5,000 rpm
Main Motor: 15 hp
Sub Spindle: yes
Sub Spindle Nose: A2-5

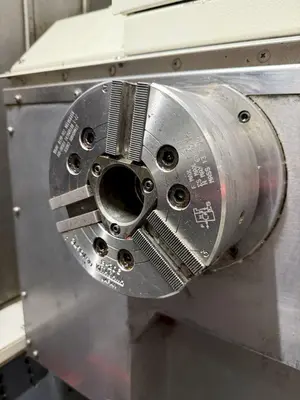

Sub Spindle Chuck: 6"
Sub Spindle Bar Capacity: 2"
Sub Spindle Speed: 5,000 rpm
Sub Spindle Motor (HP): 15 hp
Live Tooling: yes
Milling Spindle Taper: CAPTO C4
Live Tooling Speed: 12,000 rpm - Milling Spindle
Live Tooling Motor: 10 hp
Y Axis: yes
Tailstock: no

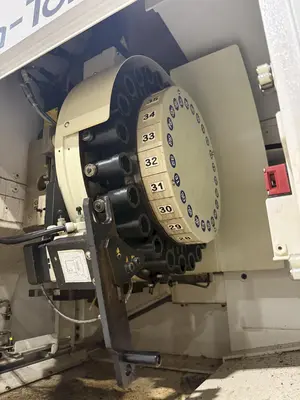

ATC Capacity: 2 x 24 Stations
Turret Capacity: 24
Machine Dimensions: 190" x 165" x 104" - Floor Space w/Chip Conveyor
Machine Weight: 32,000 pounds

- Fanuc Series 31-Model A5 CNC Control
- Milling Spindle (CAPTO C4)
- Dual 24 Station Tool Changers
- Chip Conveyor
- Coolant Tank & Pump

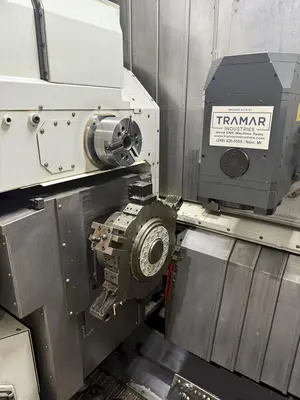

- Lower Turret (24 Stations)
- Live Tooling (Milling Spindle - 12,000 rpm)
- Y Axis Capabilities
- Sub Spindle
