USED 1983 DANLY S4-600-108-72

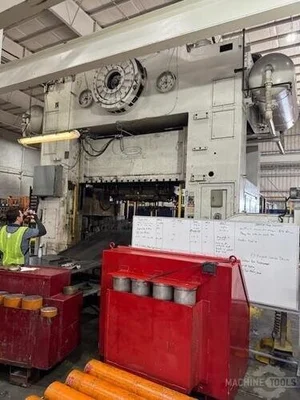

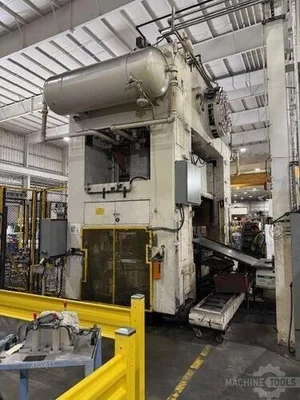

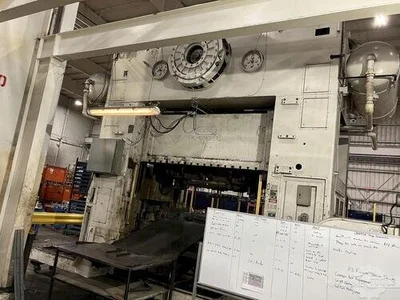

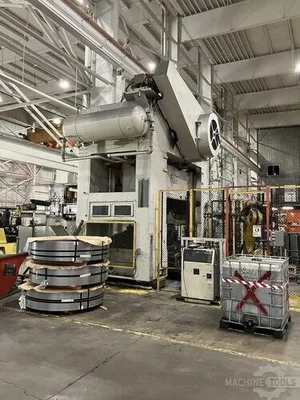

600 ton Danly Straight Side Press Model #S4-600-108-72 For Sale, Floor Standing!

Tonnage: 600
Stroke: 24 inches
Shut Height: 38.5 inches
Adjustment: 6 inches
Bed Size: 108" x 72"
Ram Area: 108" x 72"
SPM: 20

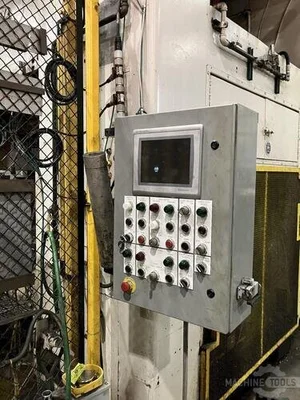

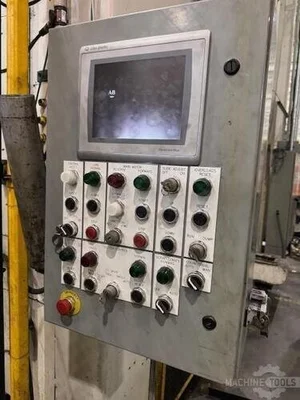

Preliminary Specifications600-ton Danly Straight Side Mechanical Metal Stamping Press Model #S4-600-108-72Year 1983 - sn/ 83406201600-ton Capacity24" Stroke38.5" Shut Height6" Motorized Adjustment108" LR x 72" FB Bed Area108" LR x 72" FB Slide Area20 SPM Fixed Equipment and FeaturesAir Clutch and BrakeAir CounterbalancesRecirculating Lube SystemT-Slotted Ram and Bolster/BedDual Ross Air ValveHydraulic Tie Rod Nuts50" Wide WindowsMotorized AdjustmentAllen Bradley ControlsVibro-Dynamic Isolation PadsFloor StandingDimensions:200" LR x 96" FB Overall Height:  226.5" Tall Floor to Highest pointWeight:  235,000 lbs. Can be seen under power upon request.Now available: a 600-ton Danly Straight Side Mechanical Stamping Press (Model S4-600-108-72). This 1983 floor-standing press features a 108" x 72" bed area, 24" stroke, and 50" wide windows. Equipped with Allen Bradley controls, air clutch/brake, and hydraulic tie rod nuts, this low-profile unit offers 20 SPM. Save on rigging by purchasing from its current location. View under power upon request. Click here for more 600-ton straight side mechanical press options.To learn about what makes a 600-ton mechanical press versatile. Visit resource information about 600-ton Stamping Presses.
