Used Cherry-Burrell 1,000-Gallon Sanitary Jacketed Stainless Steel Mix Tank | Food-Grade Heated Vessel

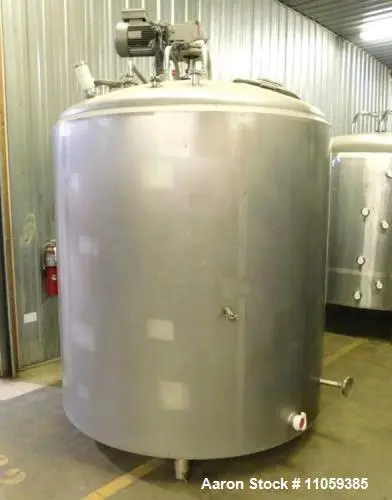

Used Cherry-Burrell 1,000-Gallon Sanitary Jacketed Stainless Steel Mix Tank | Food-Grade Heated Vessel. Approximately 72" diameter x 72" straight side. Dished top, pitched sloped bottom. Jacket Rated 100 PSI @ 300 Degrees F. Top mounted agitator driven by a 1.6/3 HP, 860/1740 rpm 460 volt motor into gearbox with 42.93 ratio for 20/40 RPM output speed. 3" Side bottom outlet. Approximately 9'6" OAH. National Board Rated. Last used in sanitary food plant.

Used Equipment Facts About This Machine
🏭 Manufacturer Information

Manufacturer: Cherry-Burrell

Equipment Type: Jacketed Sanitary Mixing Tank

Capacity: 1,000 Gallons

Construction: Stainless Steel (sanitary design)

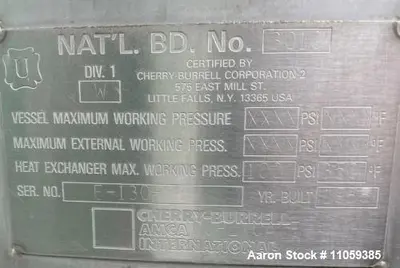

National Board: NB Rated

Condition: Used

Previous Application: Sanitary food processing plant

⚙️ Description

This Used Cherry-Burrell 1,000-Gallon Jacketed Stainless Steel Mixing Tank is a high-quality, food-grade process vessel engineered for heated batch mixing, blending, and holding in sanitary production environments. Cherry-Burrell equipment is widely trusted in the food, dairy, beverage, and pharmaceutical industries for durability, hygienic construction, and long service life.
The tank features a dished top and pitched/sloped bottom for complete drainage, paired with a jacket rated 100 PSI at 300°F for efficient heating using steam or thermal fluids. Mixing is provided by a top-mounted agitator with a dual-speed motor (1.6/3 HP) driving through a 42.93:1 gearbox, delivering 20 or 40 RPM output speeds for versatile processing of varying viscosities.
With a 3" side-bottom outlet, sanitary geometry, and National Board certification, this vessel is ideal for regulated food and sanitary processing applications.

📏 Specifications

Capacity: 1,000 Gallons

Tank Diameter: Approx. 72 inches

Straight Side Height: Approx. 72 inches

Overall Height: Approx. 9 ft 6 in

Top: Dished

Bottom: Pitched / sloped for drainage

Construction: Stainless steel, sanitary design

Jacket Rating: 100 PSI @ 300°F

Agitator: Top-mounted mixer

Drive Motor:

1.6 / 3 HP

860 / 1740 RPM

460 Volt

Gearbox Ratio: 42.93 : 1

Output Speed: 20 / 40 RPM

Outlet: 3" side-bottom discharge

Certification: National Board Rated

🧩 Applications

Food and beverage processing

Dairy blending and holding

Sauce, dressing, and condiment production

Syrups and flavor concentrates

Nutraceutical liquid batching

Pharmaceutical liquid processing

Cosmetic and personal care products

Specialty food ingredient preparation

Heated batch processing

Sanitary process systems

🔥 What Might This Be Used For

Mixing food products under controlled heat

Holding and conditioning sanitary liquids

Dissolving solids into heated liquids

Maintaining batch temperature consistency

Preparing product prior to filling or packaging

📦 Products This Is Commonly Used For

Dairy products

Sauces and dressings

Syrups and sweeteners

Beverage bases

Liquid nutraceuticals

Cosmetic emulsions

Pharmaceutical solutions

Flavorings and concentrates

Cleaning and CIP solutions

Process intermediates
