USED 1989 Bridgeport Series 1

48" Table 2HP Spindle Bridgeport Series 1 VERTICAL MILL, Vari-Speed,R-8, Acu-Rite DRO,Long & Cross B'port

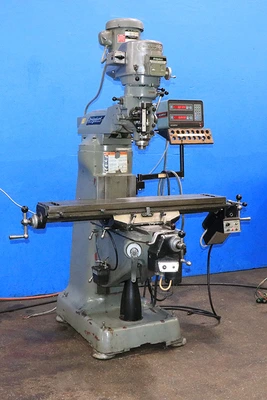

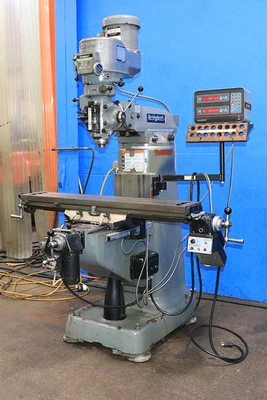

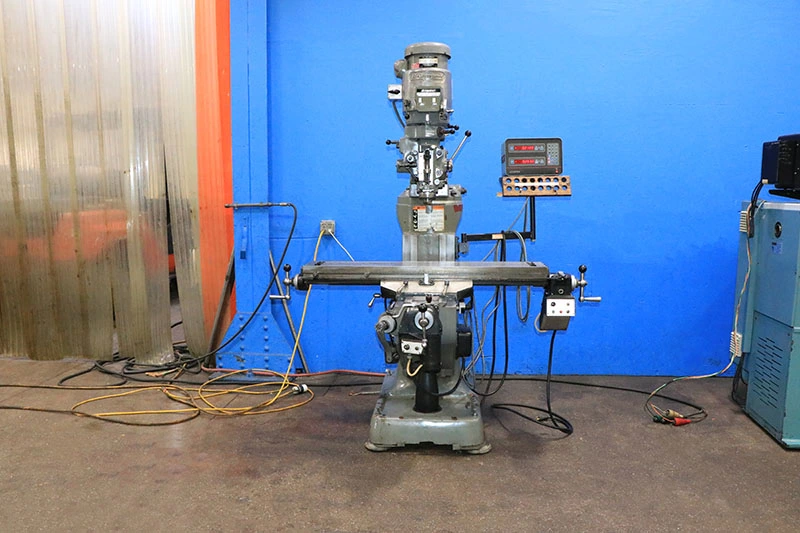

BRIDGEPORT VERTICAL MILLING MACHINE

MODEL: SERIES I, S/N: BR 255205, NEW: 1989

SPECIFICATIONS:

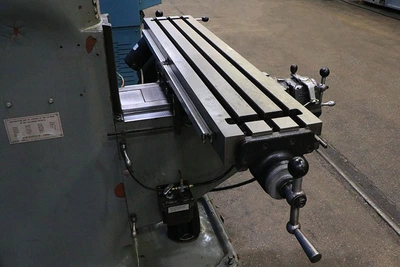

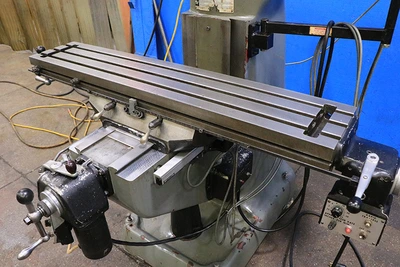

TABLE SIZE .............................. 9" X 48"

NUMBER OF T-SLOTS ....................... 3

LONGITUDINAL TABLE TRAVEL ............... 36"

CROSS TRAVEL ............................ 12"

QUILL TRAVEL ............................ 5"

KNEE TRAVEL ............................. 16"

RAM TRAVEL .............................. 12"

MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2" / 2-1/2"

MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.

    TP FACE OF COLUMN ................... 18-3/4" / 6-3/4"

HEAD TILT, LEFT & RIGHT ................. 90 DEGREES

HEAD TILT, FRONT & REAR ................. 45 DEGREES

INFINITELY VARIABLE SPEED RANGE ......... 60-4,200 RPM

SPINDLE TAPER ........................... R-8

MAX COLLET CAPACITY ..................... 3/4"

QUILL TRAVEL ............................ 5"

QUILL FEEDS ........................ 0.0015", 0.003", 0.006"

APPROXIMATE WEIGHT ...................... 2,000 LBS

EQUIPPED WITH:

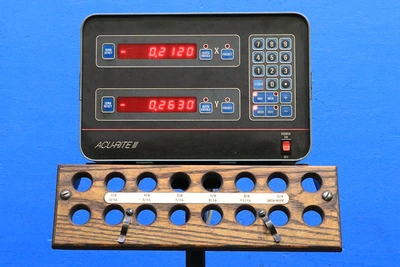

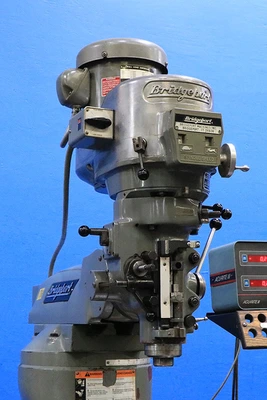

ACURITE TWO AXIS DIGITAL READOUT

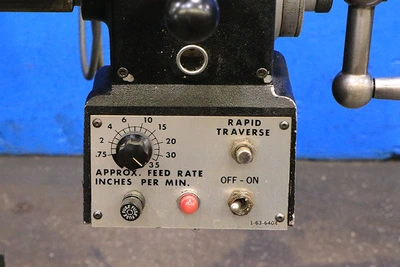

BRIDGEPORT POWER FEED FOR LONGITUDINAL TRAVEL

BRIDGEPORT POWER FEED FOR CROSS TRAVEL

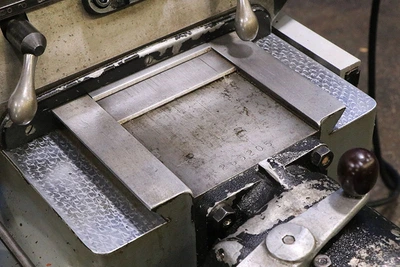

CHROME WAYS

BIJUR ONE SHOT LUBRICATION SYSTEM

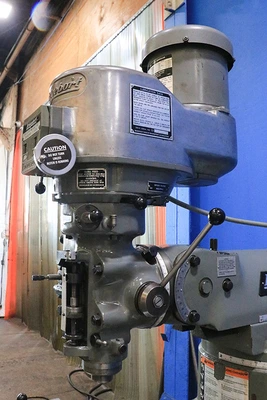

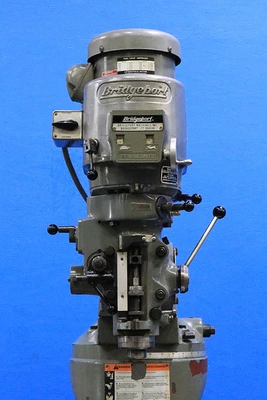

BRIDGEPORT SERIES I MILLING HEAD S/N: J279649

2 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
