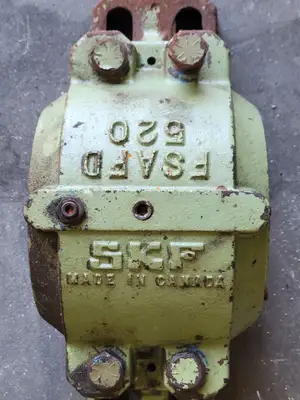

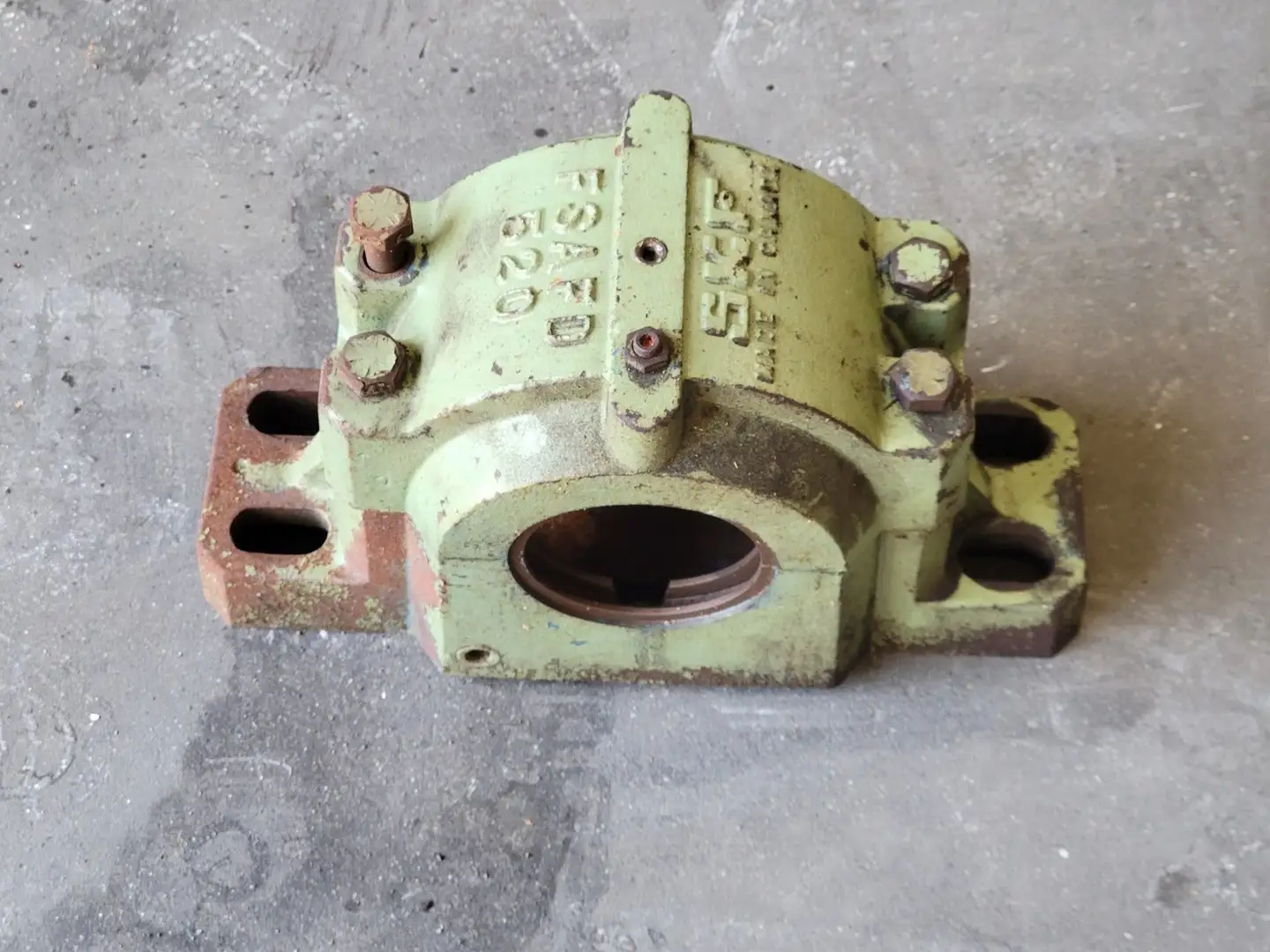

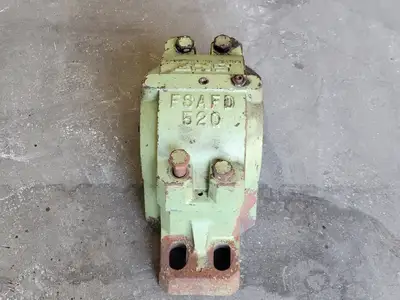

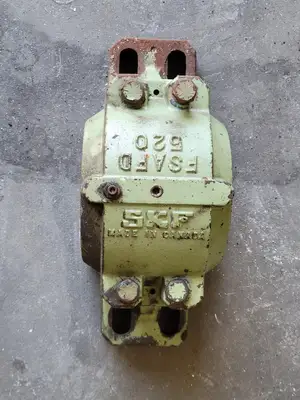

USED SKF FSAFD 520

Type: Split Plummer Block
Height: 9 in
Outside Length: 15.25 in
Base to Bore Centerline: 4.5 in
Distance Between Bolts: Min.11.625 in / Max.13.125 in
Housing Compatible Bore Diameter: Shaft diameter: 3.438 in / Diameter of bearing seat: 7.087 in
Properties
Housing type: Pillow block
Housing configuration: Two-piece
Mounting arrangement: Through shaft/Shaft end
Number of bolt holes for fasteners: 4
Material, housing: Spheroidal graphite cast iron
Bearing housing seal type: Labyrinth seal
Housing lubrication feature/possibility: Grease/Oil
