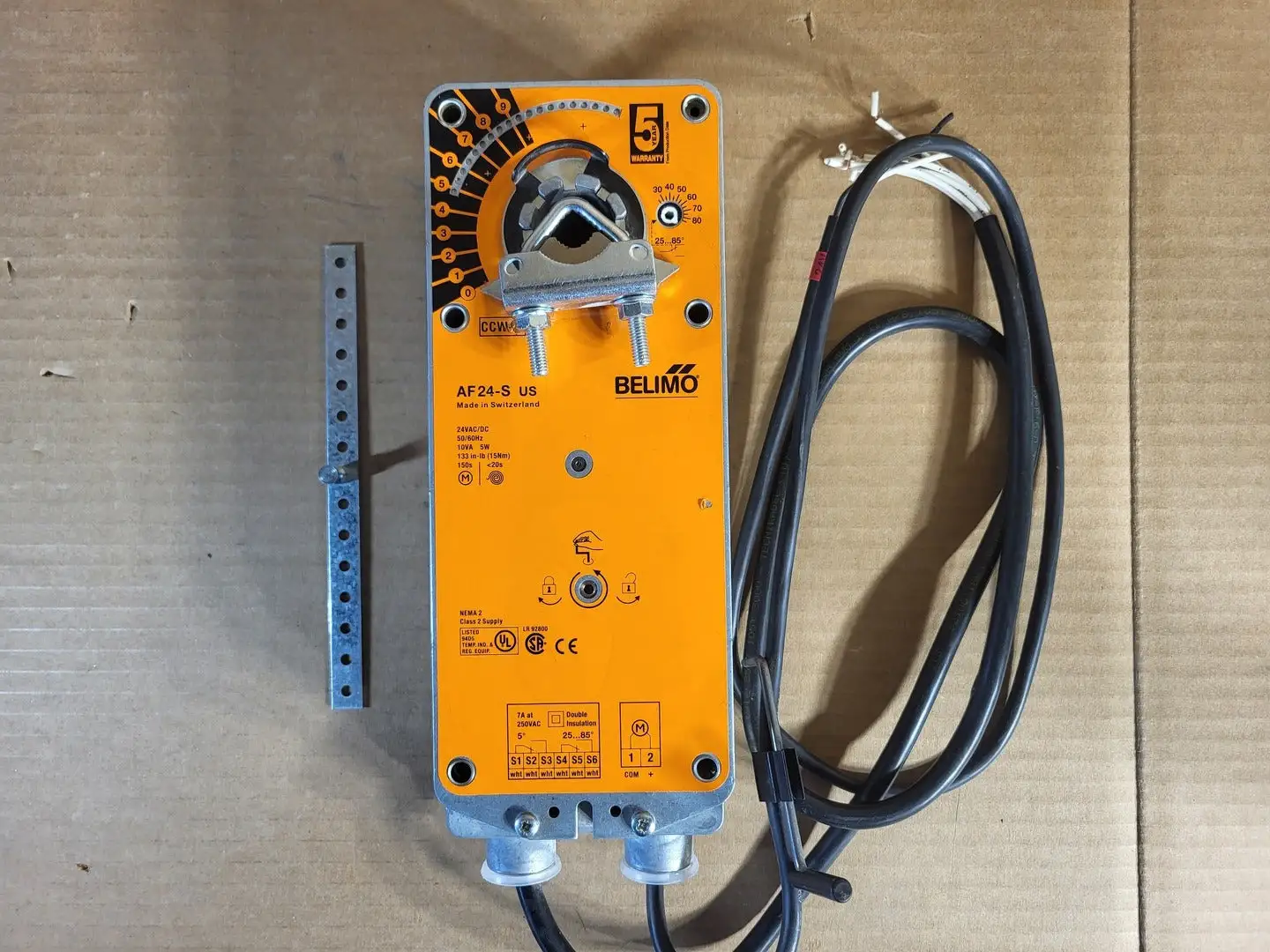

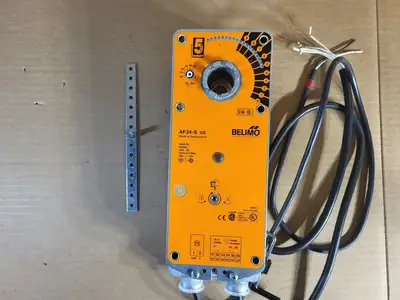

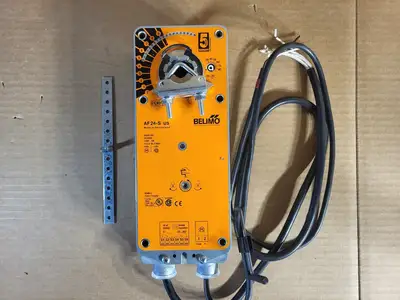

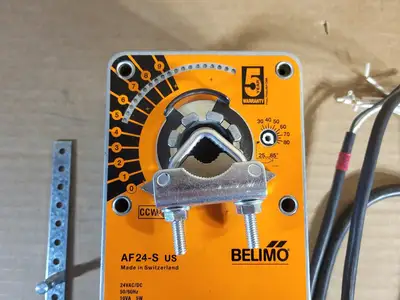

USED BELIMO AF24-S US

Actuator Type: Two Position
Fail Safe Mode: Spring Return
Power Supply: 24 VAC/DC
Torque: 133 lb-in
Running Time:
150 Seconds (motor)
<20 Seconds (spring)
Power Consumption:
5W (running)
1.5W (holding)
VA Rating: 10
Ambient Temperature: -22°F to +122°F
Control Input Values: On/Off
Auxiliary Switch: 2 SPDT
Manual Override: Yes
Direction of Rotation: Reversible w/ cw/ccw mounting
