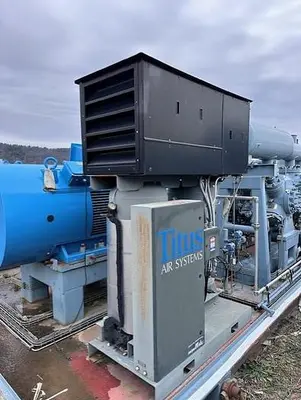

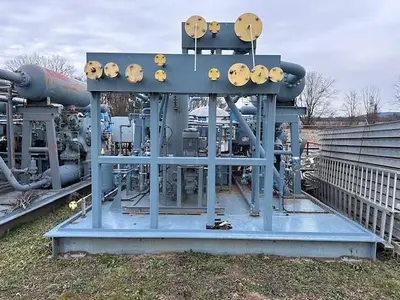

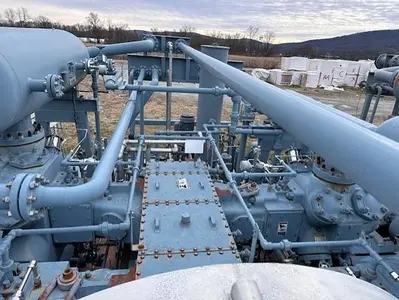

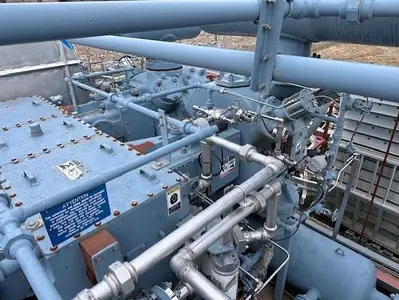

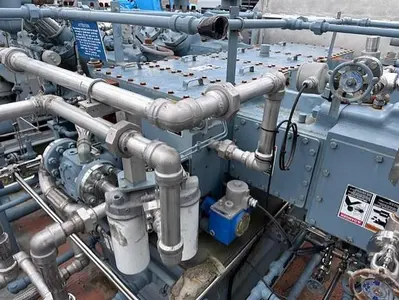

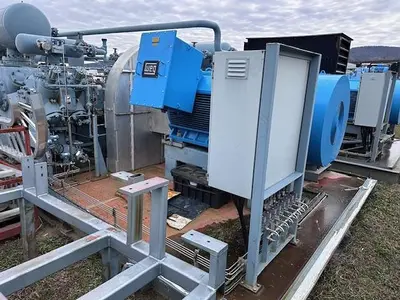

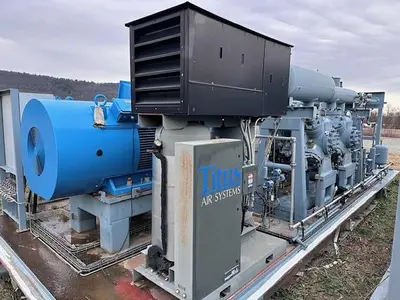

Dresser Rand MOS-4 / 550 HP Compressor Packages – designed for LNG Service

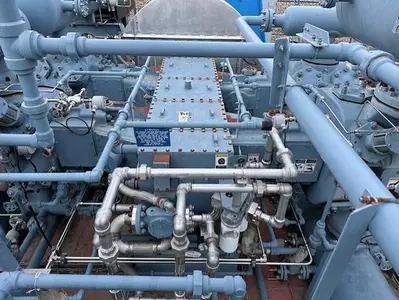

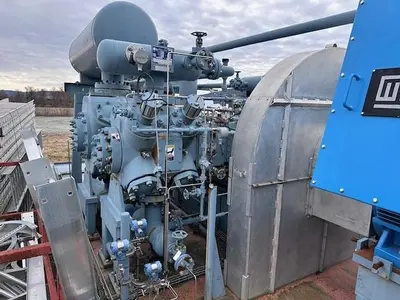

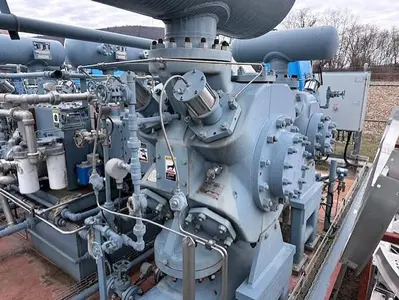

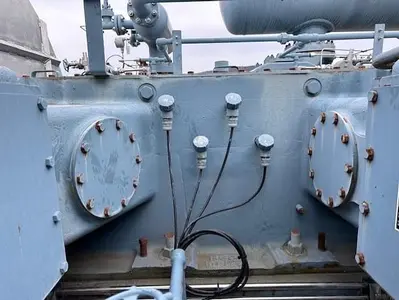

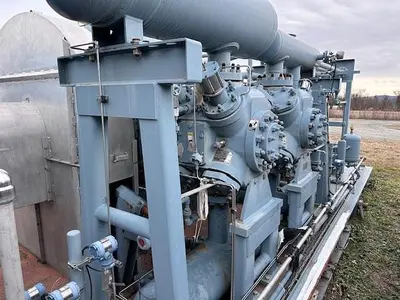

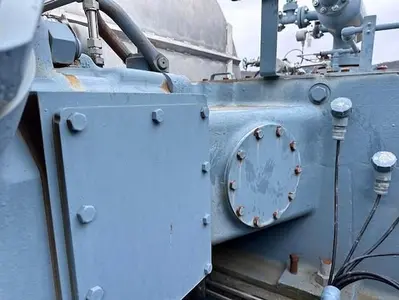

Dresser Rand Compressor Frame
Model: 7MOS-4
Stroke: 7”
RPM: 425
Non Lube Design
SN: 1365682

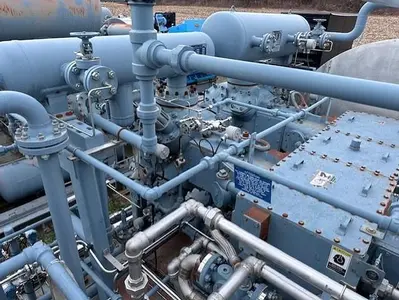

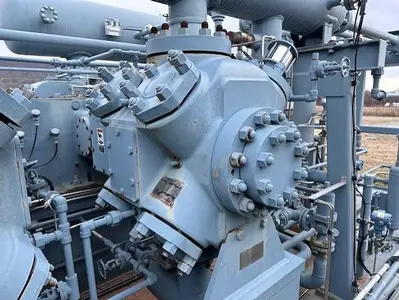

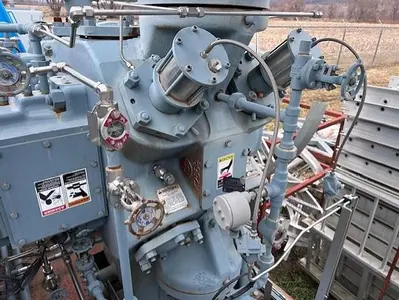

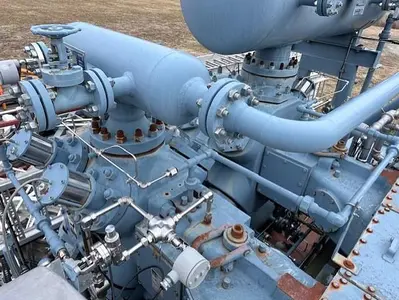

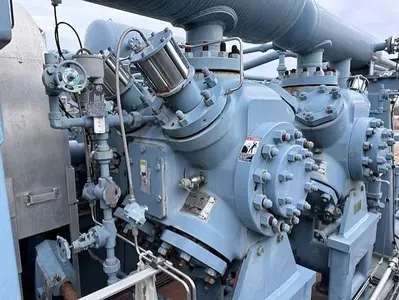

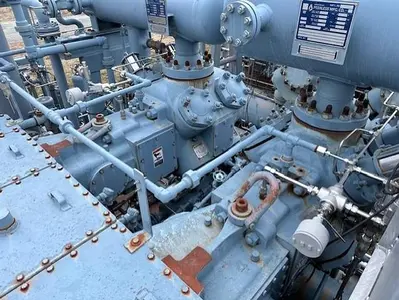

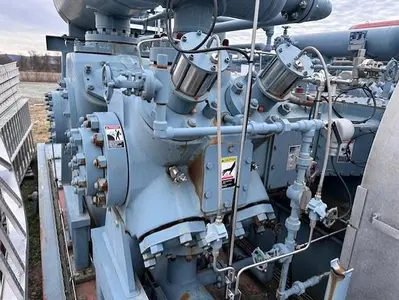

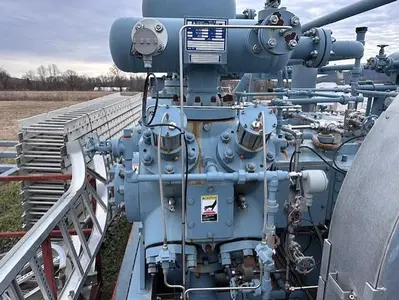

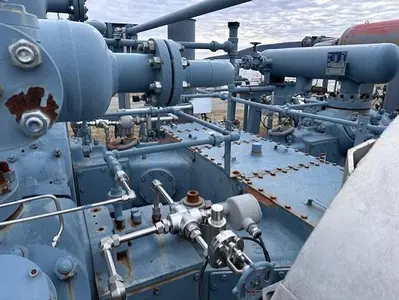

Dresser Rand Compressor Cylinder
Bore: 17.5”
Stroke: 7”
Class: MOS
MAWP: 545
Water cooled
Non lube cylinder
Standard fixed head
SN: 1360866
Dresser Rand Compressor Cylinder
Bore: 11.5”
Stroke: 7”
Class: MOS
MAWP: 1265
Water cooled
Non lube cylinder
Standard fixed head
SN: 1373905
Dresser Rand Compressor Cylinder
Bore: 10.5”
Stroke: 7”
Class: MOS
MAWP: 1650
Water cooled
Non lube cylinder
Standard fixed head
SN: 1360922
Dresser Rand Compressor Cylinder
Bore: 10.5”
Stroke: 7”
Class: MOS
MAWP: 1650
Water cooled
Non lube cylinder
Standard fixed head
SN: 1360923

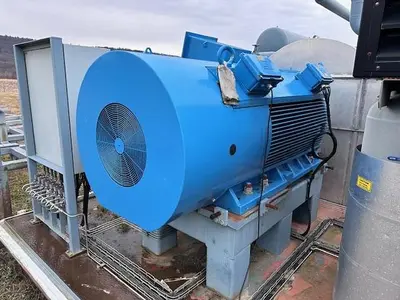

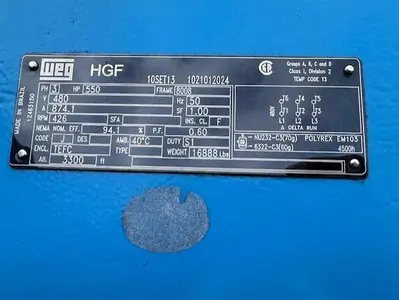

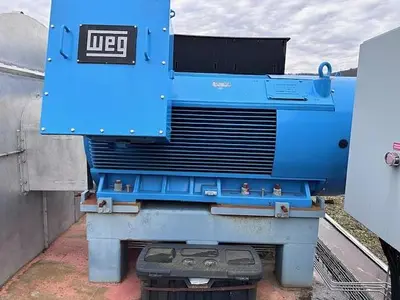

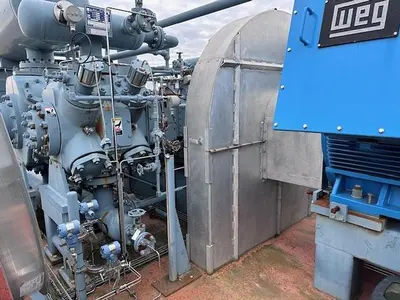

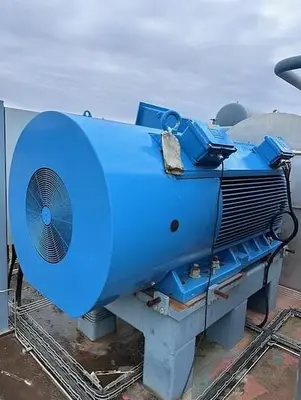

WEG Electric Motor
HP: 550
RPM: 426
Volts: 480
Amps: 874.1
Hz: 50
Phase: 3
Frame: 8008
Enclosure: TEFC
Insulation Class: F
S.F.: 1.0
P.F.: 0.60
Duty: S1
Code: J
Altitude: 3300 ft
Weight 16,888 LBS
SN: 1021012024

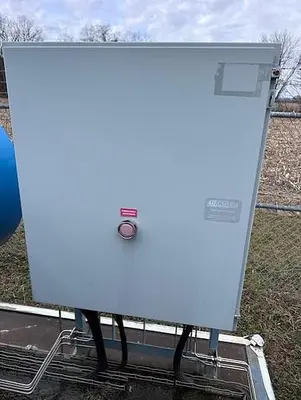

Dresser Rand Panel
(NO TAG)

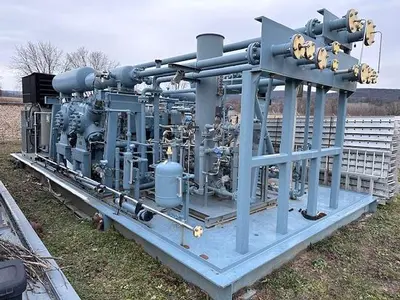

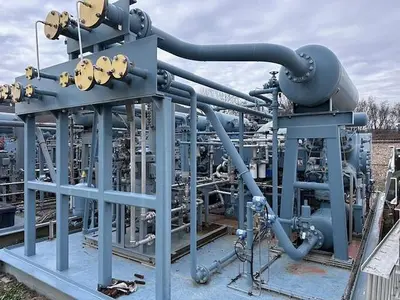

Skid Dimensions: 27’5” L x 14’ W x 9’11” H
Estimated weight: 91,000 LBS
Stroke: 7”
RPM: 425
SN: 1365682
