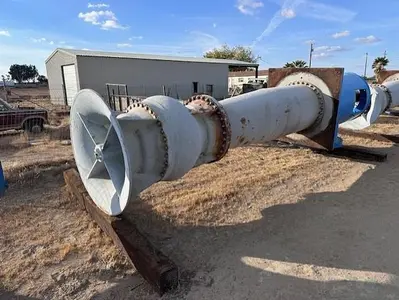

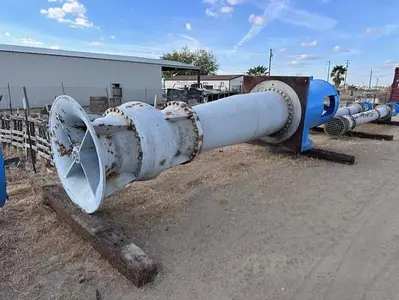

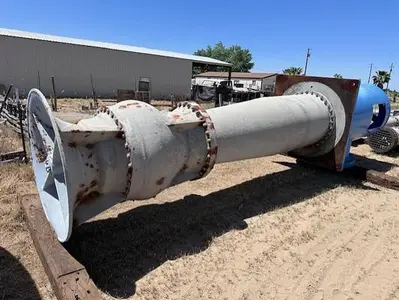

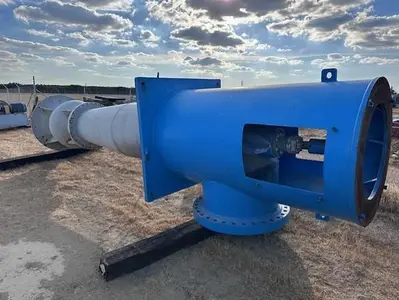

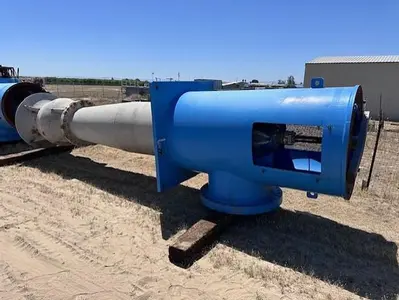

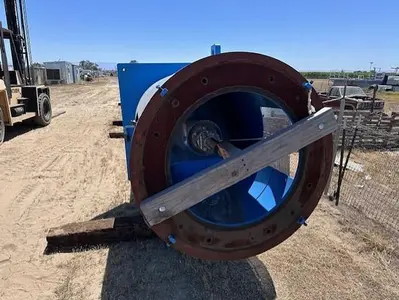

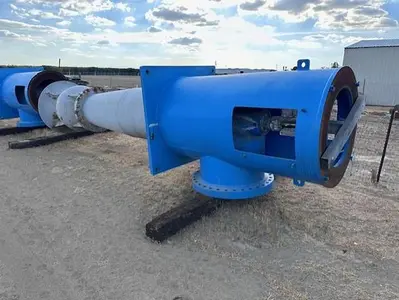

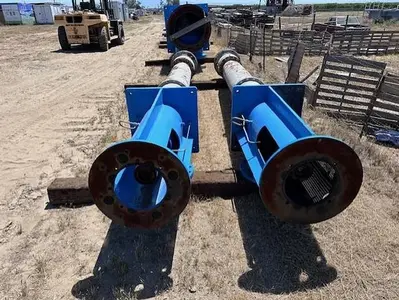

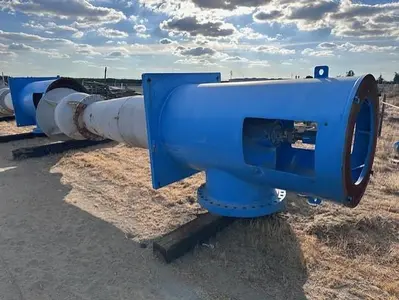

Auxiliary Cooling Water Pump
Manufacturer: Flowserve

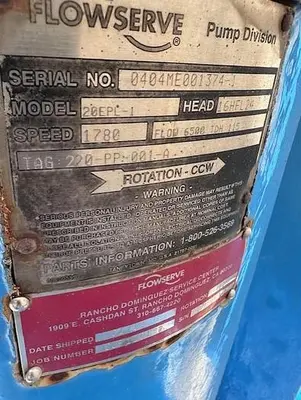

Model: 20EPL-1

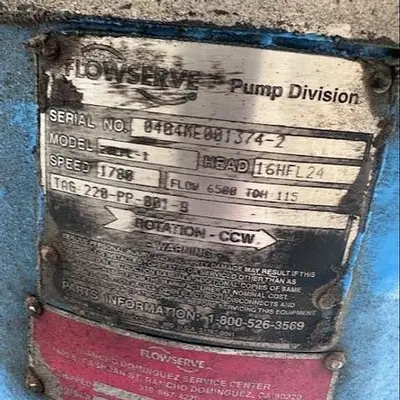

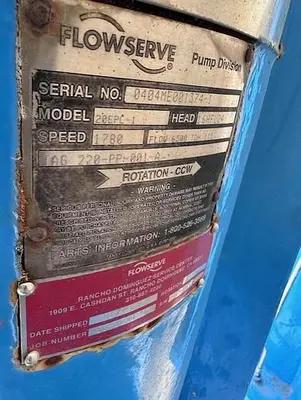

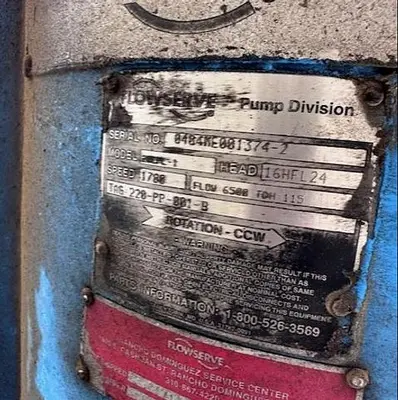

Equipment No.: 220-PP-001A/B
Pump Data
Stages: 1
RPM: 1780
Pump Efficiency: 79.9
Pump Break Hp: 236
Impeller Type: Enclosed
Impeller Diameter: 15.55"
NPSH Required: 31.5
Min Submergence Required: 3'10"
Discharge Size: 16"
Flange Rating: 125
Face: FF

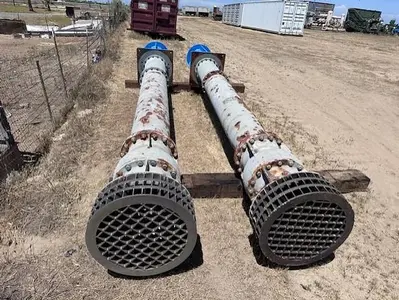

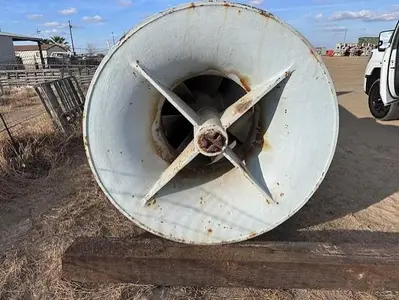

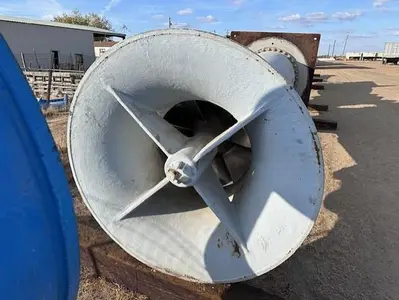

Suction Bell/Size: 26"
Weight: 3,910 Lbs.
Driver
Hp: 300
RPM: 1800
Weight: 4,700 Lbs.

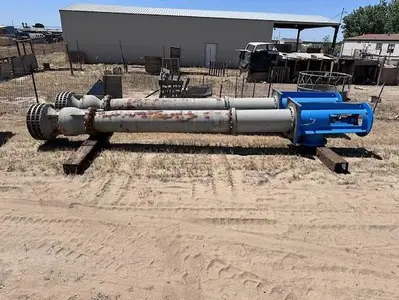

Circulating Water Pump

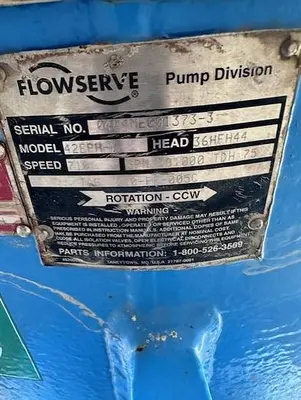

Manufacturer: Flowserve

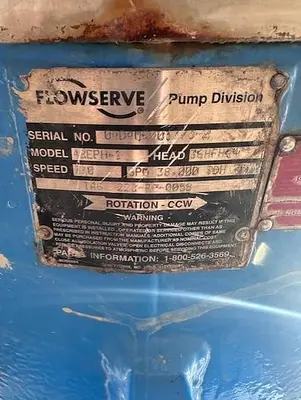

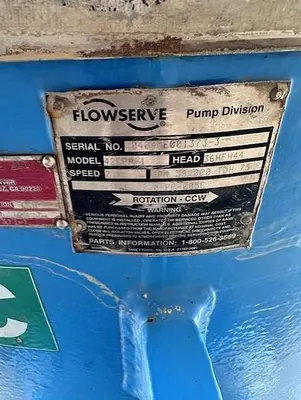

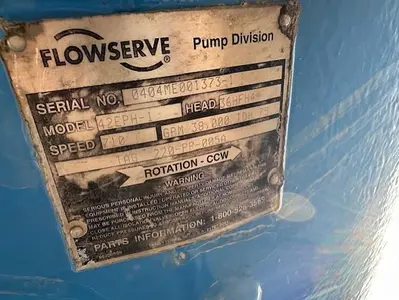

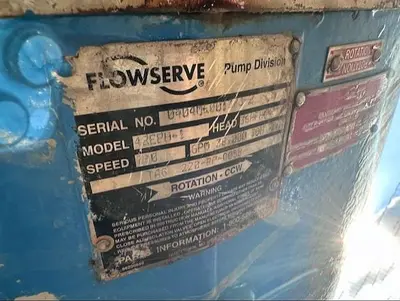

Model: 42EPH-1
Equipment No.: 220-PP-005 A/B/C
Pump Data
Stages: 1
RPM: 720
Pump Efficiency: 85
Pump Break Hp: 846
Impeller Type: Enclosed
Impeller Diameter: 32.45"
NPSH Required: 30
Min Submergence Required: 7'10"
Discharge Size: 36"
Flange Rating: 150
Face: FF

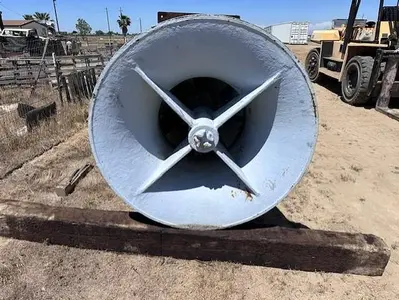

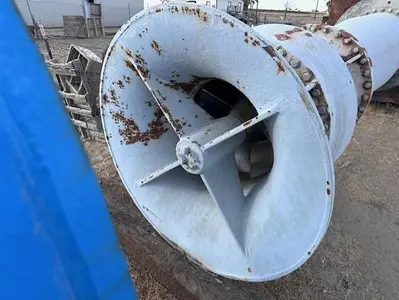

Suction Bell/Size: 52"
Weight: 15,000 Lbs.
Driver
Hp: 950
RPM: 720
Weight: 14,500
