USED ARIEL JGT-4

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

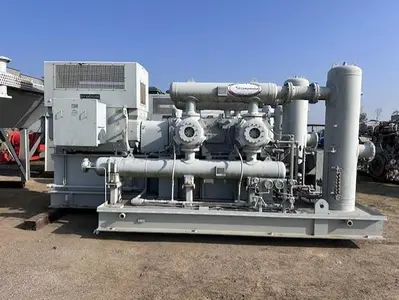

Overview
Type:
Gas Compressors
Manufacturer:
ARIEL
Model:
JGT-4
Stock #:
CS-0020628

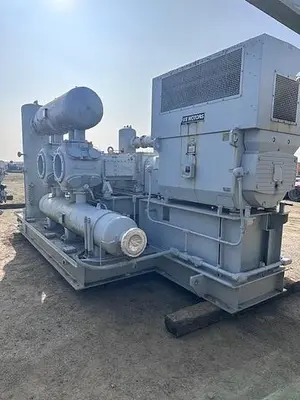

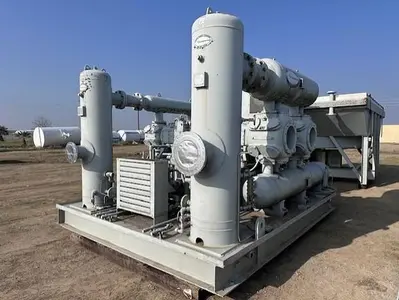

Description

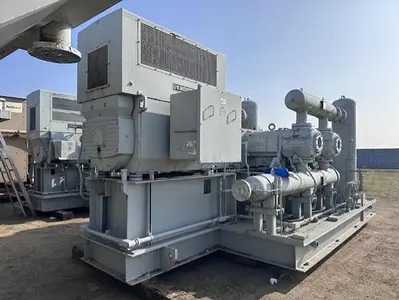

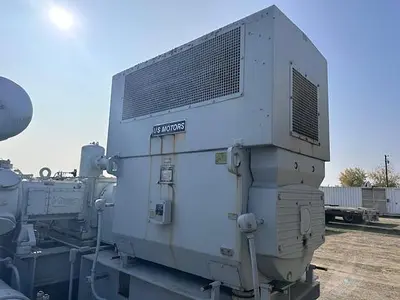

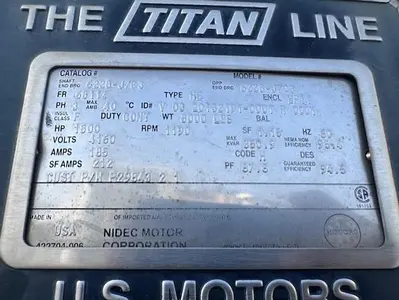

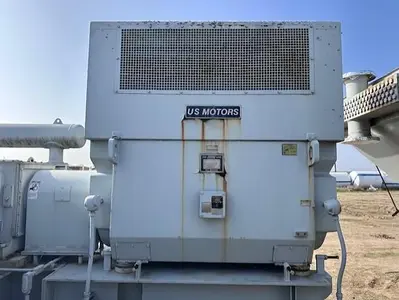

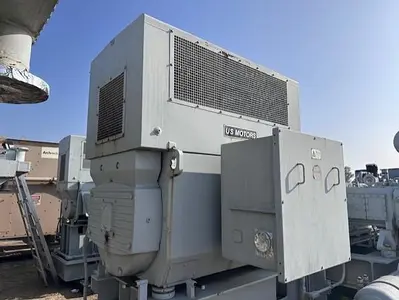

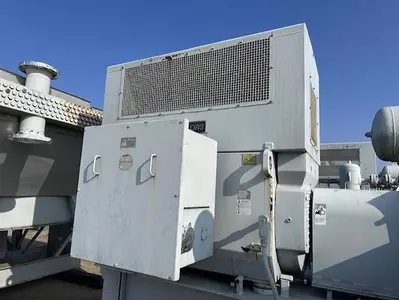

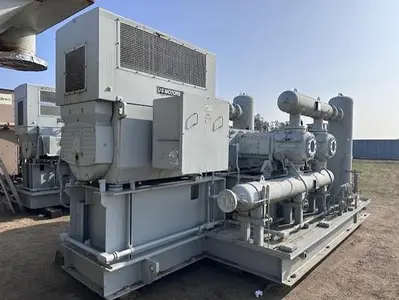

US Motors – Titan Electric Motor
HP: 1500
RPM: 1190
Volts: 4160
3 Phase
Hz: 60
Frame: 6811Z
Type: HE
Enclosure: WP11
SN: V0320132191-0001R0001

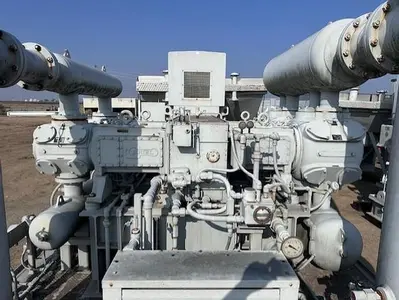

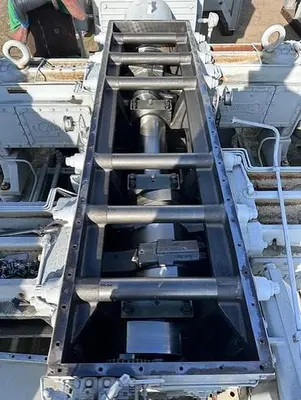

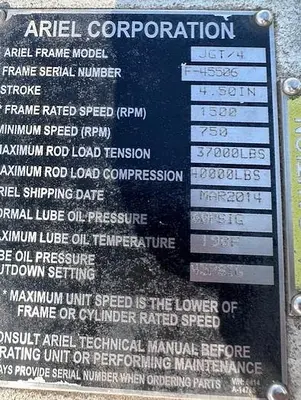

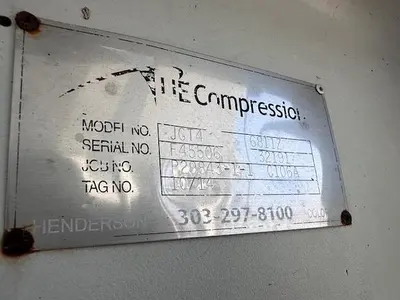

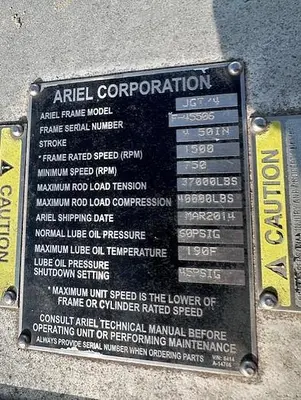

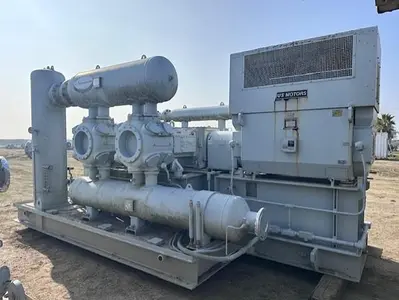

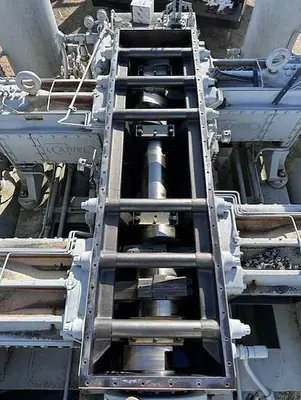

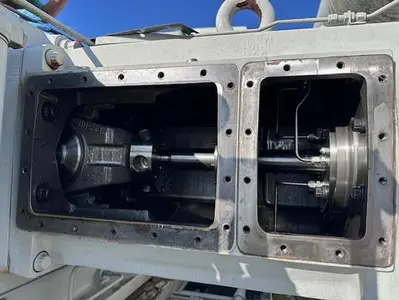

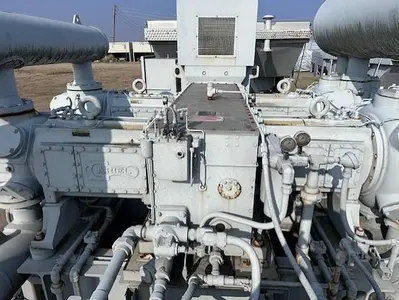

Ariel Compressor Frame
Model: JGT-4
RPM: 1500
Stroke: 4.5”
Rod Load: 77,000 LBS total
MFG Date: March 2014
SN: F-45506

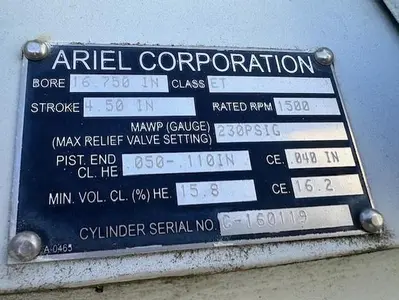

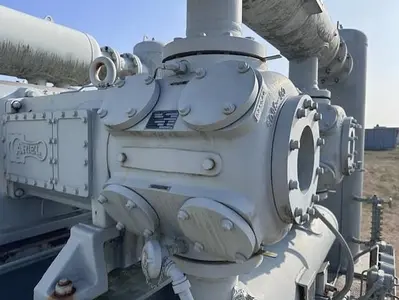

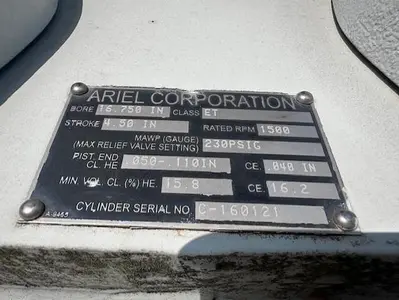

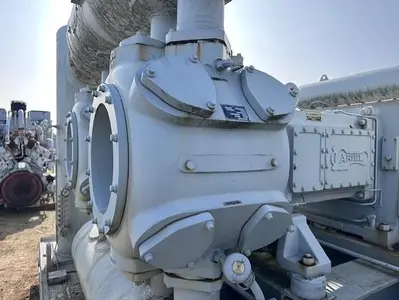

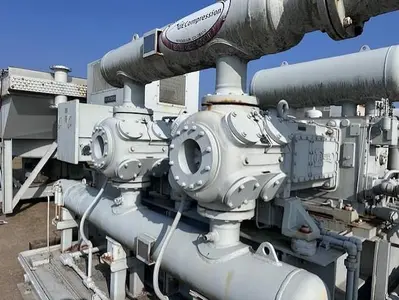

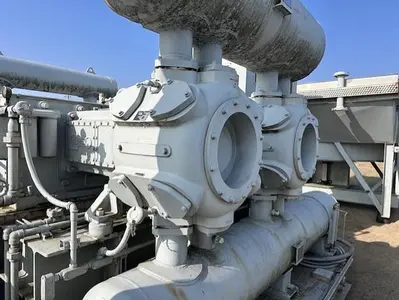

1st Stage Ariel Cylinders
Bore: 16.75”
Stroke: 4.5”
Class: ET
MAWP: 230
Standard fixed heads
SN: C-160121
SN: C-160119

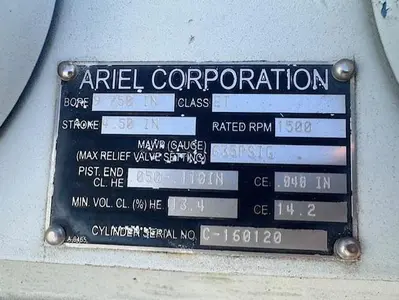

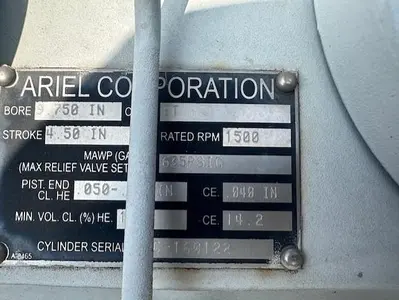

2nd Stage Ariel Cylinders
Bore: 9.75”
Stroke: 4.5”
Class: ET
MAWP: 635
Standard fixed heads
SN: C-160120
Sn: C-160122

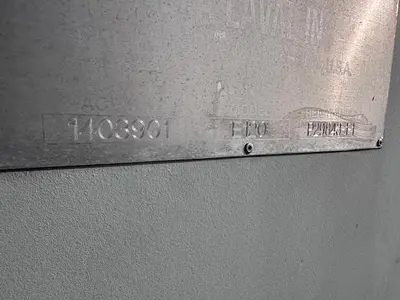

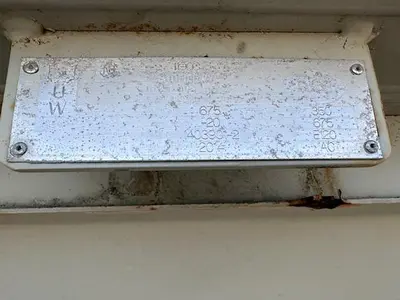

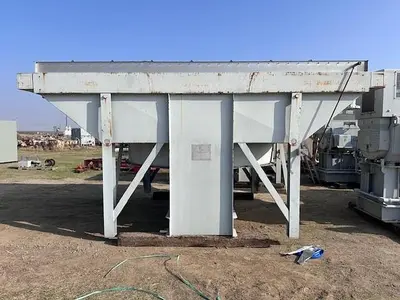

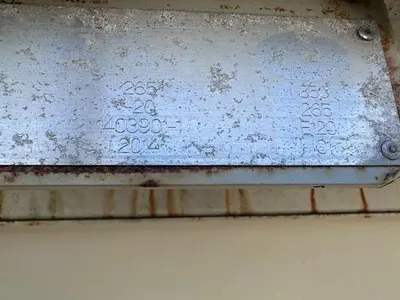

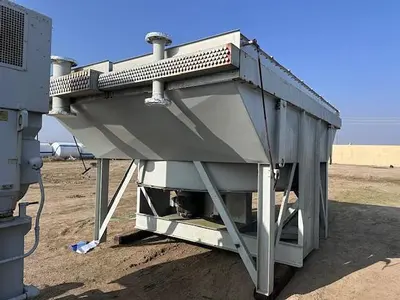

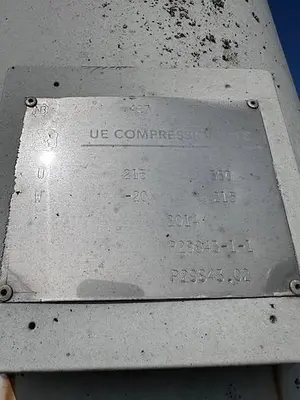

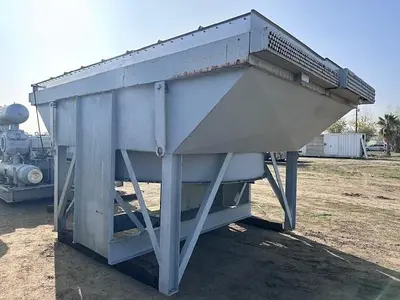

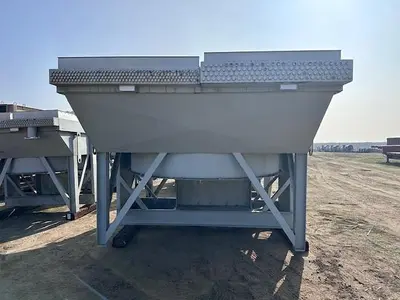

ACE Cooler
Model: E120
Reference #: P29843-1-1
Cooling sections: 265, 675 psi @ 350 Deg F
SN: 1403901

Specifications

HP: 1500
RPM: 1190
Volts: 4160
Hz: 60
Frame: 6811Z
Type: HE
Enclosure: WP11
SN: V0320132191-0001R0001
RPM: 1500
Stroke: 4.5”
Rod Load: 77,000 LBS total
MFG Date: March 2014
SN: F-45506
Bore: 16.75”
Class: ET
MAWP: 230
SN: C-160121
SN: C-160119
Bore: 9.75”
MAWP: 635
SN: C-160120
Sn: C-160122
SN: 1403901
