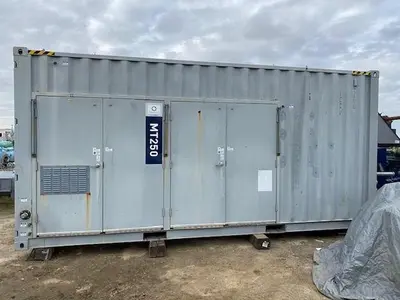

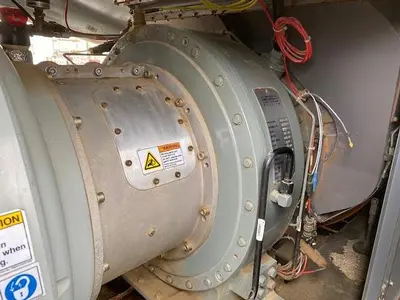

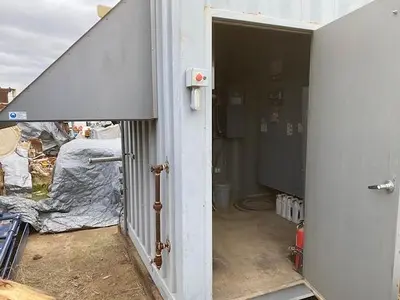

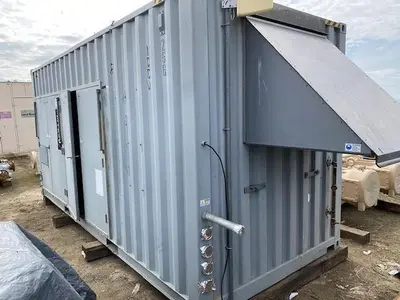

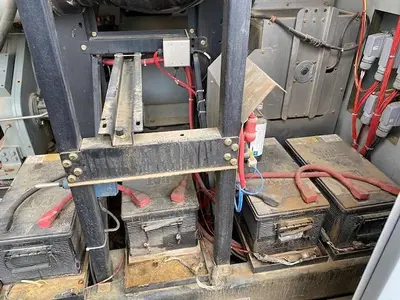

FLEX ENERGY / INGERSOLL RAND MT250 MICRO TURBINE AND LOAD BANK

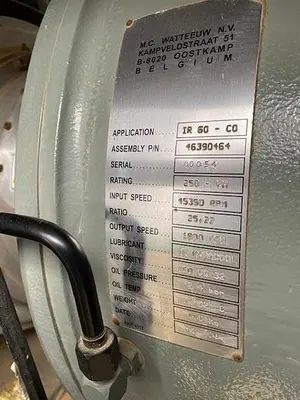

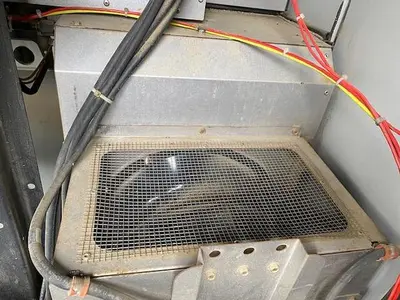

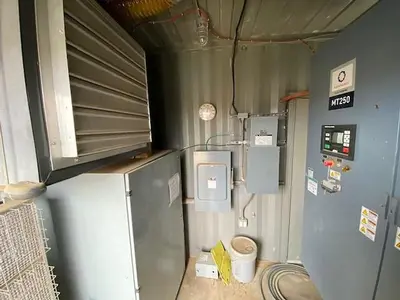

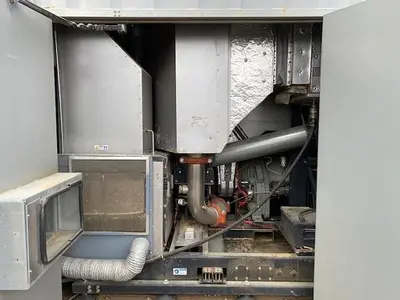

Flex Energy Flex Turbine
Model: MT250
M.C. Watteuw N.V.
Kampveldstraat 51
B-8020 Oostkamp
Belgium
Application: IR-60-CO
Assembly PN: 46390464
SN: 00054
Rating: 250 KW
Input Speed: 45390 RPM
Ratio: 25.22
Output Speed: 1800 RPM
Lubricant: IR Megacool
Viscosity: ISO VG32
Oil Pressure: 2.4 bar
Oil Temperature: max 92 deg C
Date: 12-2008

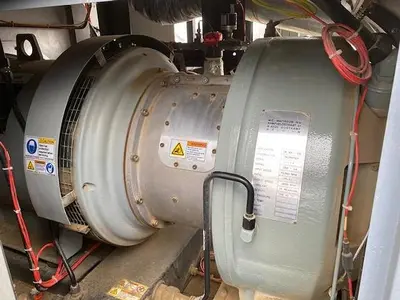

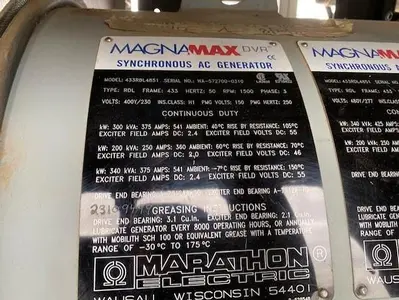

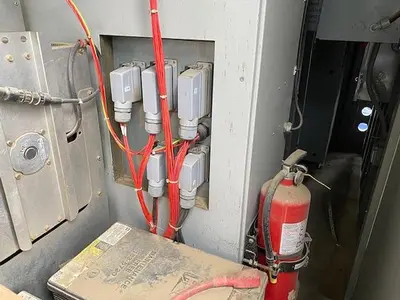

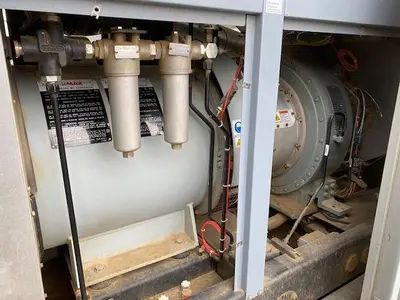

Marathon Electric Generator End
Magnamax DVR
Synchronous AC Generator
Model: 433RDL4851
Type: RDL
S/N: WA-572700-0310
Hz: 60 / 50
RPM: 1800 / 1500
Phase: 3
Volts: 480Y/277 / 400Y/230
Ins Class: H1
PMG Volts: 190 / 150
PMG Hertz: 300 / 250
Continuous Duty 60 Hz
KW: 340 Kva: 425 Amps: 511 Ambient 40 deg C rise by resistance 95 deg C
Exciter Field Amps DC 1.7 Exciter Field Volts DC: 40
KW: 200 Kva: 250 Amps: 301 Ambient 60 deg C rise by resistance 73 deg C
Exciter Field Amps DC 1.2 Exciter Field Volts DC: 34
Continuous Duty 50 Hz
KW: 300 Kva: 375 Amps: 541 Ambient 40 deg C rise by resistance 105 deg C
Exciter Field Amps DC 2.4 Exciter Field Volts DC: 55
KW: 200 Kva: 250 Amps: 360 Ambient 60 deg C rise by resistance 70 deg C
Exciter Field Amps DC 2.0 Exciter Field Volts DC: 46
KW: 340 Kva: 375 Amps: 541 Ambient -7 deg C rise by resistance 150 deg C
Exciter Field Amps DC 2.4 Exciter Field Volts DC: 55

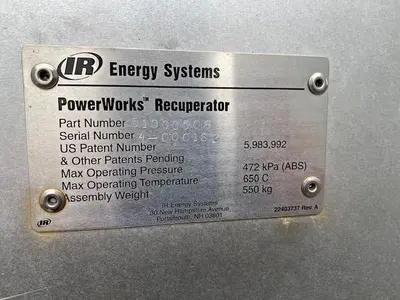

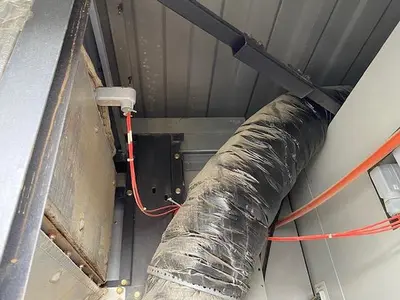

IR Energy Systems
Powerworks recouperator
PN: 51000506
SN: 4-000162
Max operating pressure: 472 kpa (ABS)
Operating Temperature: 650 deg C

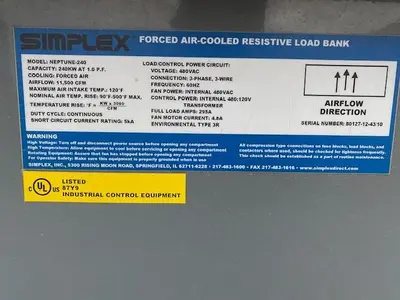

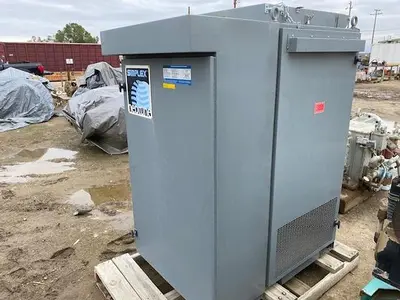

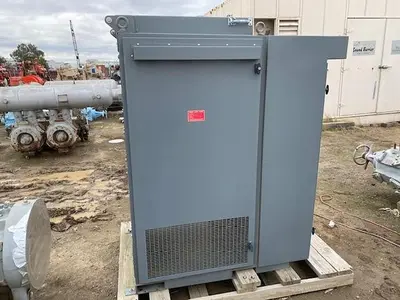

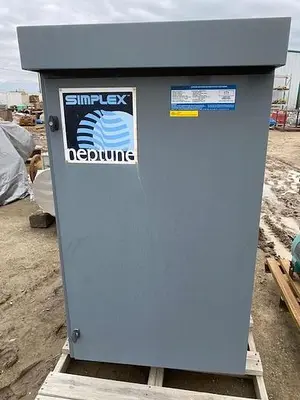

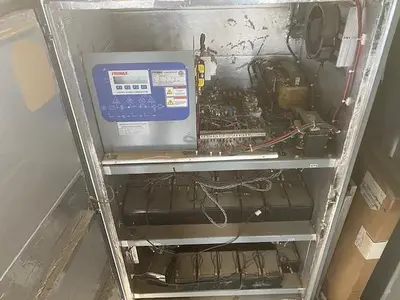

Simplex Forced Air Cooled Resistive Load Bank
Model: Neptune 240
Capacity: 240 KW at 1.0 PF
Cooling: Forced Air
Airflow: 11,500 CFM
Max air intake: 120 deg F
Nominal air temperature rise: 90 deg F – 500 deg F max
Temp rise: kw x 3000 / cfm
Duty Cycle: Continuous 5 kva
Load/Control Power Circuit:
Voltage: 480 VAC
Connection: 3 phase 3 wire
Fan power: internal 489 VAC
Control power: internal 480:120V Transformer
Full load amps: 295A
Fan motor current: 4.8A
Environmental Type: 3R
SN: 80127-12-43/10
Engine MFG: Flex Energy Flex Turbine
Compression Ratio: 25.22
Engine SN: 00054
Generator End MFG: Marathon Electric
Volts: 480Y/277 / 400Y/230
Phase: 3
Hz: 60 / 50
Generator End SN: WA-572700-0310
