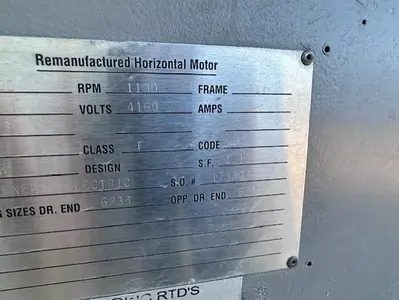

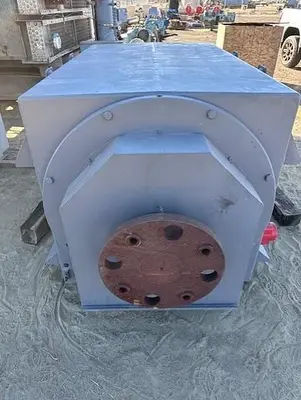

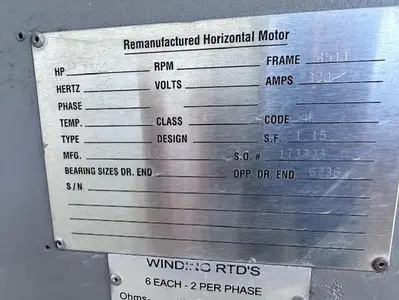

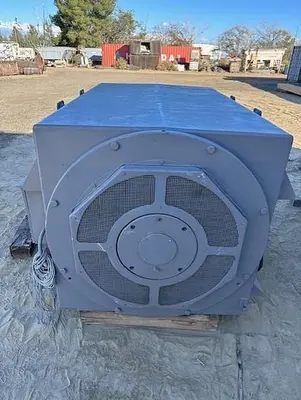

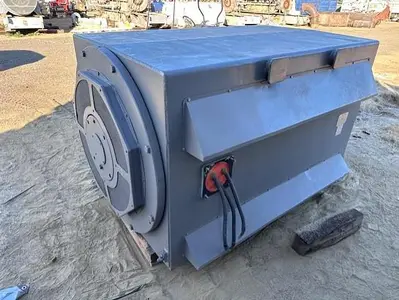

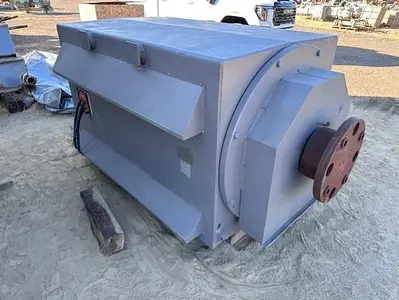

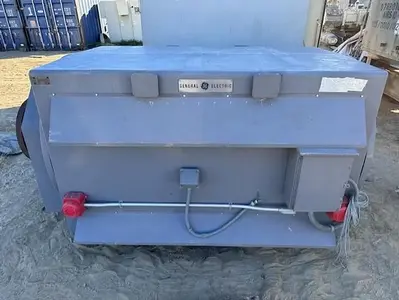

General Electric
HP: 2500
RPM: 1190
Type: K
Frame: 8511
Phase: 3
Volt: 4160
AMPS: 320
Code: H
S.F.: 1.15
Hz: 60
Class: F
S/N: 173898
Winding RTD's
6 Each - 2 Per Phase
Ohms: 100 Platinum
Bearing RTD's
2 Each
Ohms: 100 Platinum
Space Heaters
Volts: 240
Watts: 3200

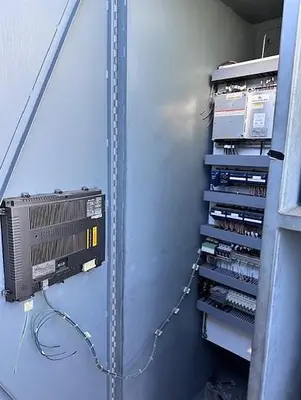

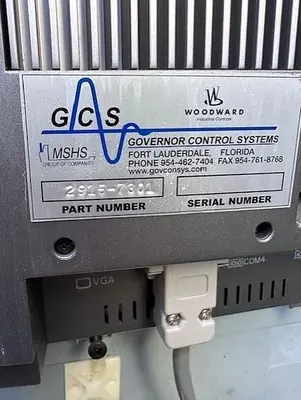

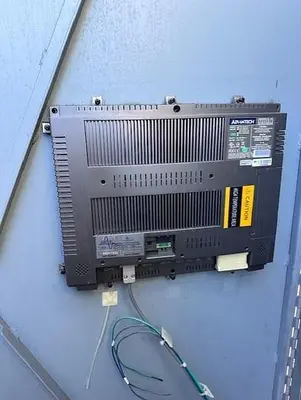

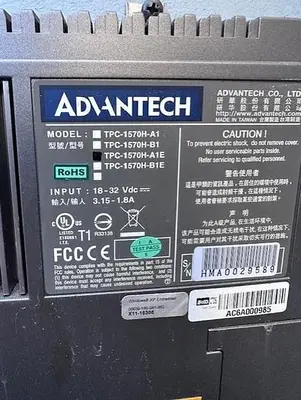

Advantech Touch Panel Screen
Model: TPC-1570H-A1E
Input: 18-32 vdc
GCS PN: 2915-7301

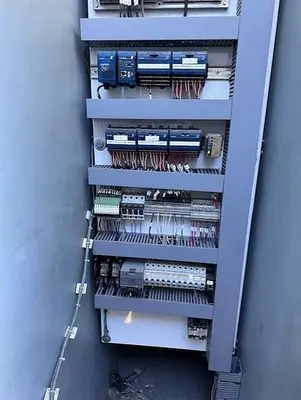

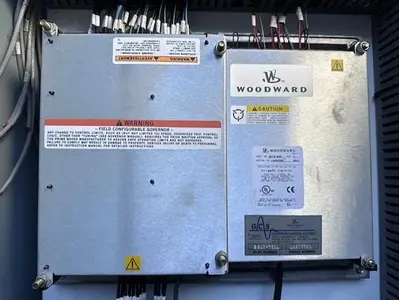

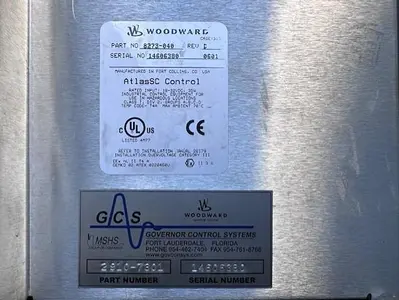

Woodward AtlasSC Control
PN: 8273-040
REV: D
SN: 14606380 0601
GCS PN: 2910-7301
GCS SN: 14606380

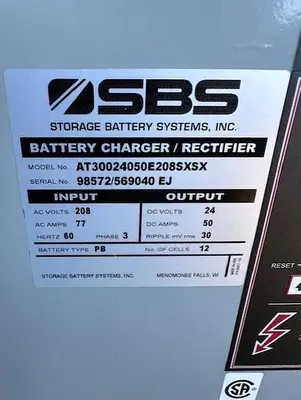

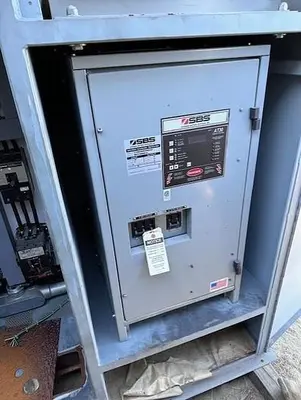

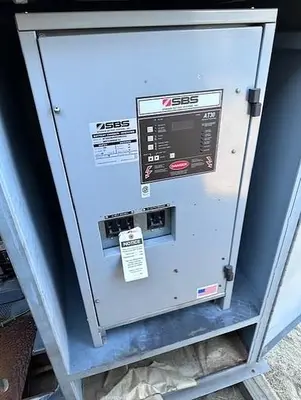

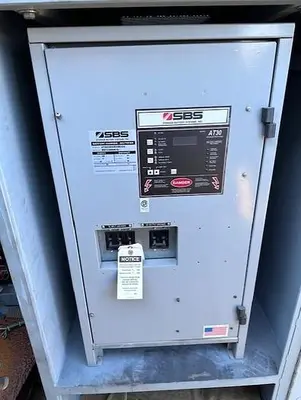

SBS Battery Charger
Model: AT30024050E208SXSX
INPUT
AC Volts: 208
AC Amps: 77
Hz: 60
Phase: 3
OUTPUT
DC Volts: 24
DC Amps: 50
Ripple mV rms: 30
Battery Type: PB
# of Cells: 12
SN: 98572-569040 EJ

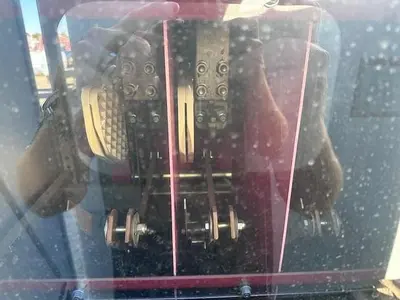

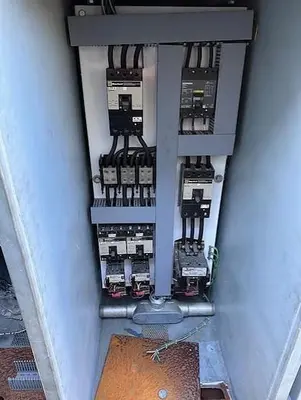

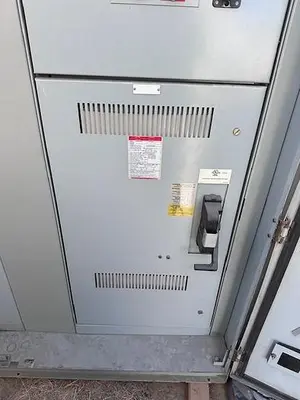

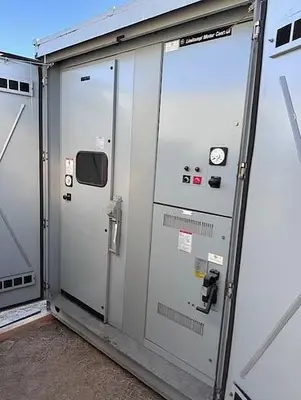

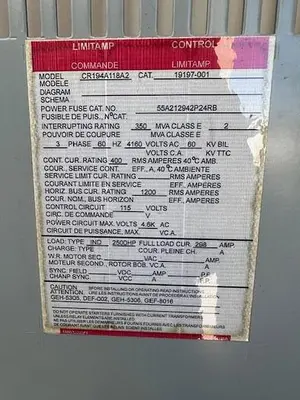

LimitAMP Motor Control
Model: CR194A118A2
Power Fuse CAT #: 55A212942P24RB
Interrupting Rate: 350
MVA Class E: 2
Phase: 3
Hz: 60
Volts AC: 4160
Kv: 60
Load Type: IND
CAT#: 19197-001
HP: 2500
RPM: 1190
Type: K
Frame: 8511
Phase: 3
AMPS: 320
Code: H
S.F.: 1.15
Ohms: 100 Platinum
Volts: 240
Watts: 3200
Input: 18-32 vdc
GCS PN: 2915-7301
PN: 8273-040
REV: D
SN: 14606380 0601
GCS PN: 2910-7301
GCS SN: 14606380
AC Volts: 208
AC Amps: 77
DC Volts: 24
DC Amps: 50
Ripple mV rms: 30
Battery Type: PB
# of Cells: 12
SN: 98572-569040 EJ
Power Fuse CAT #: 55A212942P24RB
Interrupting Rate: 350
MVA Class E: 2
Volts AC: 4160
Kv: 60
Load Type: IND
CAT#: 19197-001
