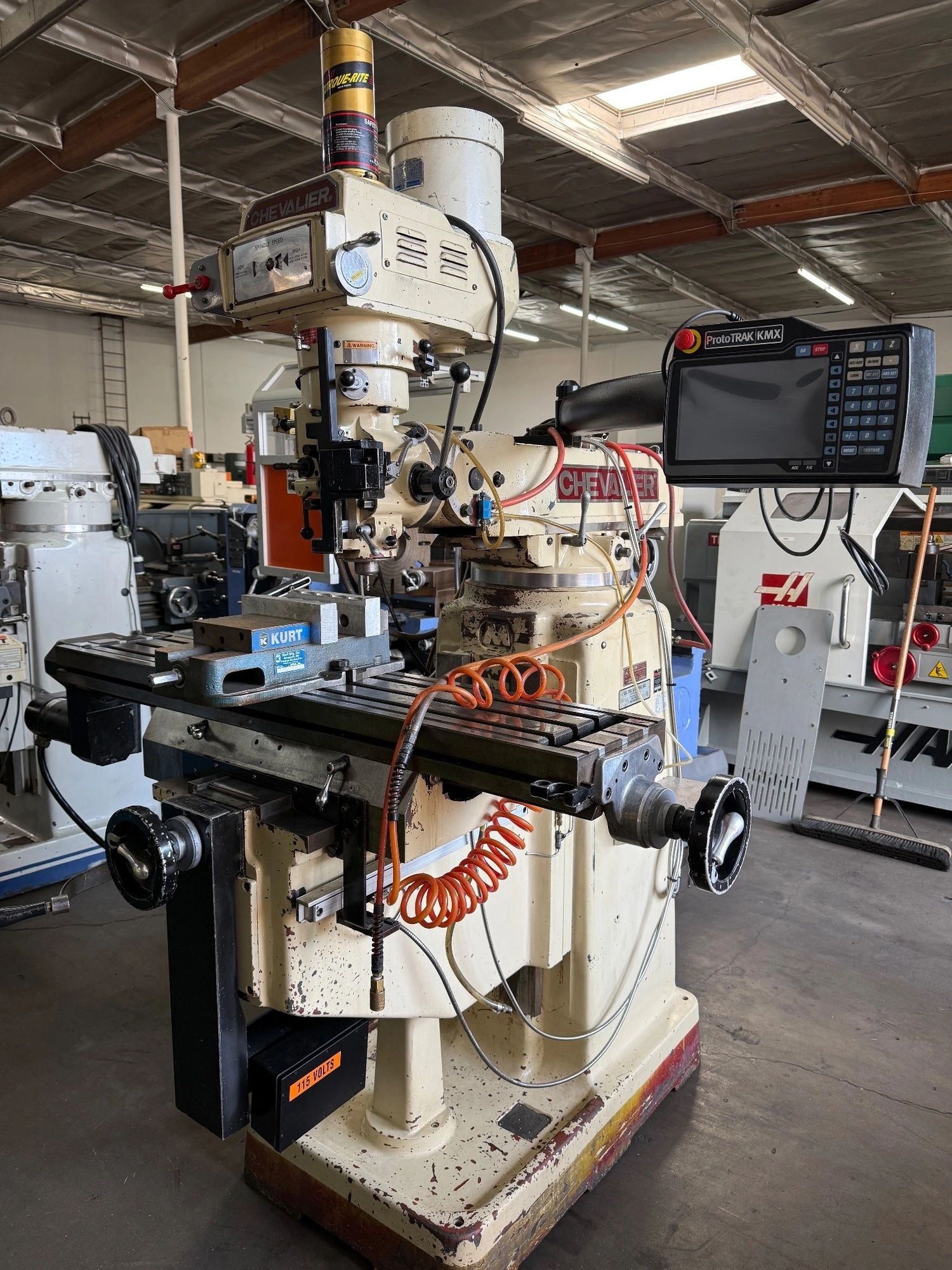

USED CHEVALIER FM-3KVH

CHEVALIER FM-3KVH Vertical Mill with Prototrak KMX Control. Ideal for precision milling tasks, this used machine combines knee, N/C, and CNC capabilities. Perfect for experienced operators seeking reliability and versatility in their work.

CHEVALIER FM-3KVH Vertical Mill w/ Prototrak KMX Control #8094 #1

SPECIFICATIONS:
TABLE SIZE: 10" x 50"
X-TRAVEL: 32-3/4"
Y-TRAVEL: 16-1/8"
QUILL TRAVEL: 5"
KNEE TRAVEL: 15-1/2"
SPINDLE MOTOR: 3 HP
SPINDLE SPEED: 60 - 4500 RPM
SPINDLE TAPER: R-8
SPINDLE NOSE TO TABLE: 0" - 17-1/4"
WEIGHT (APPROX.): 3,100 LBS.
DIMENSIONS (APPROX.): 104" x 79" x 85"

EQUIPPED WITH:
PROTOTRAK 2-AXIS KMX CONTROL
VARIABLE SPEED HEAD
