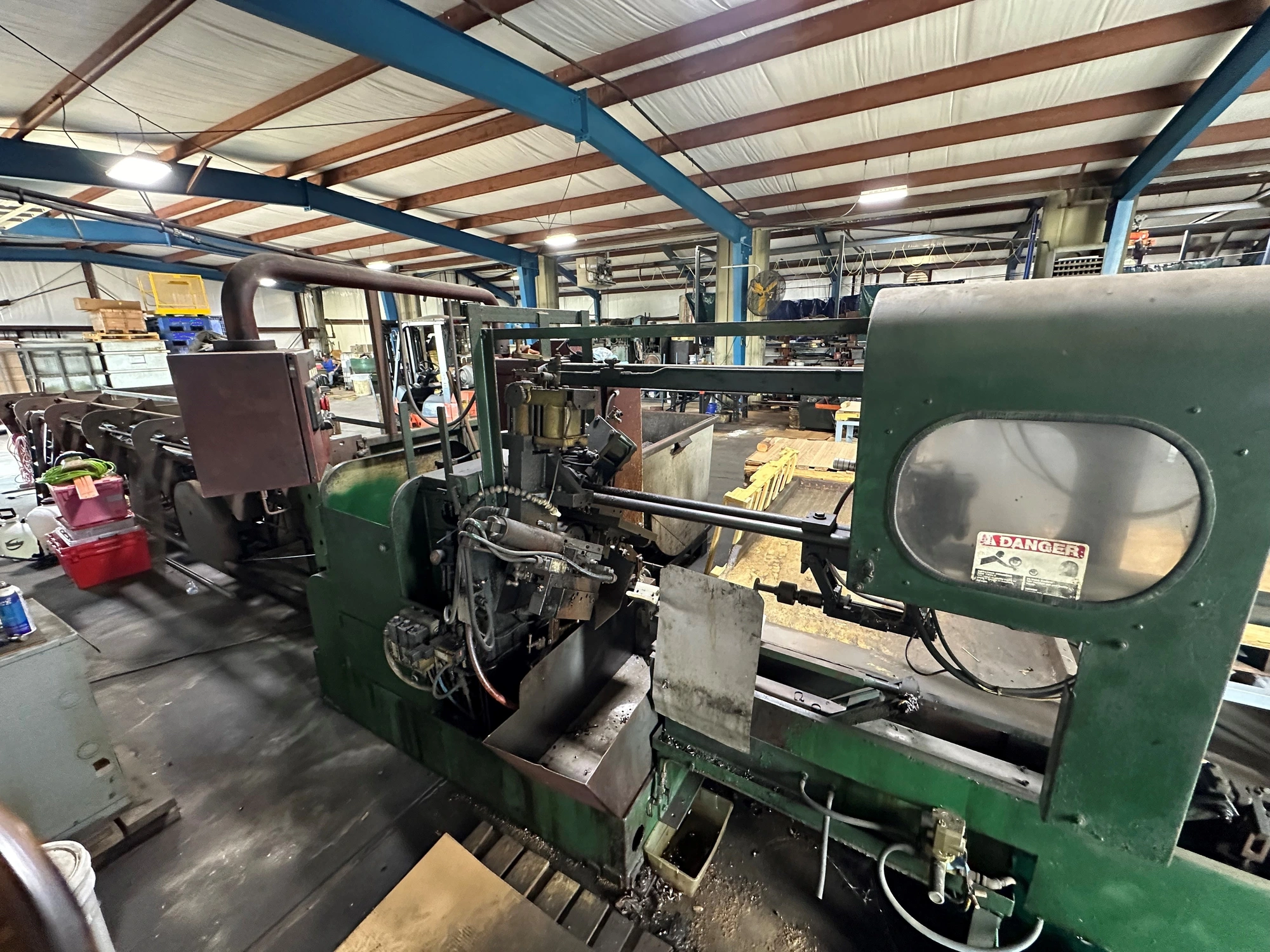

USED MODERN MACHINE TOOL 3L

MODERN 3-L Tube Cut-Off with Allen Bradley Control, and Material Feeder

Capacity.......................................12" x .024" x .077" Mild Steel
Maximum Yield Strength.........................40,000 PSI
Maximum Width..................................20"
Maximum Thickness..............................0.036"
Minimum Thickness..............................0.012"
Machine Tag Specifications:
Maximum Thickness..............................0.077"
Minimum Thickness..............................0.024"
Number of Work Rolls...........................23
Work Roll Diameter.............................0.875"
Number of Adjustable Backup Roll Flights.......3
Pass Line Height...............................37" (without Sub-Base)
Line Speed.....................................60-360 FPM
Line Direction.................................Right to Left

Allen Bradley PanelView 300 Micro Control
Material Feeder

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
