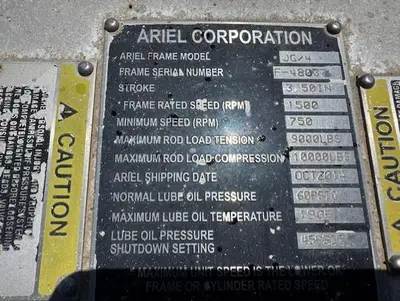

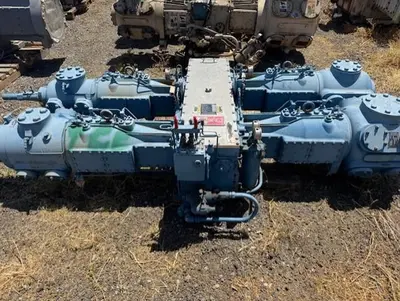

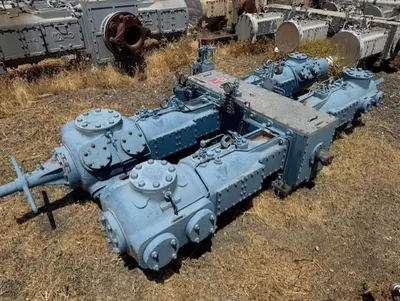

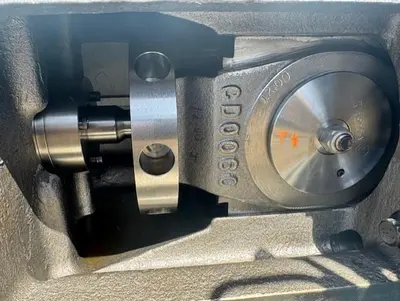

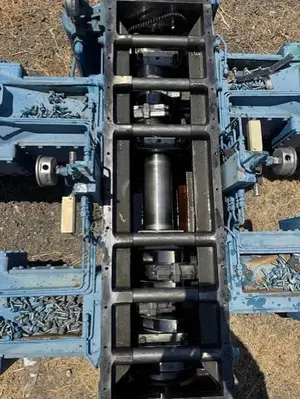

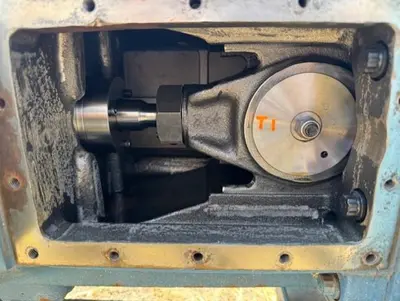

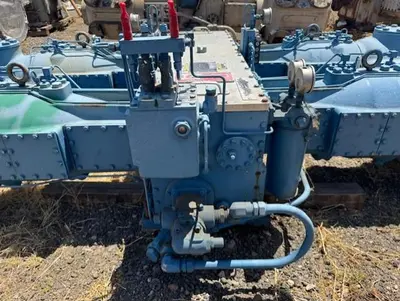

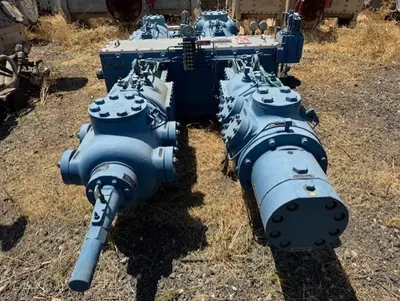

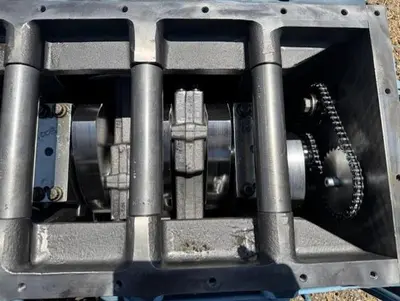

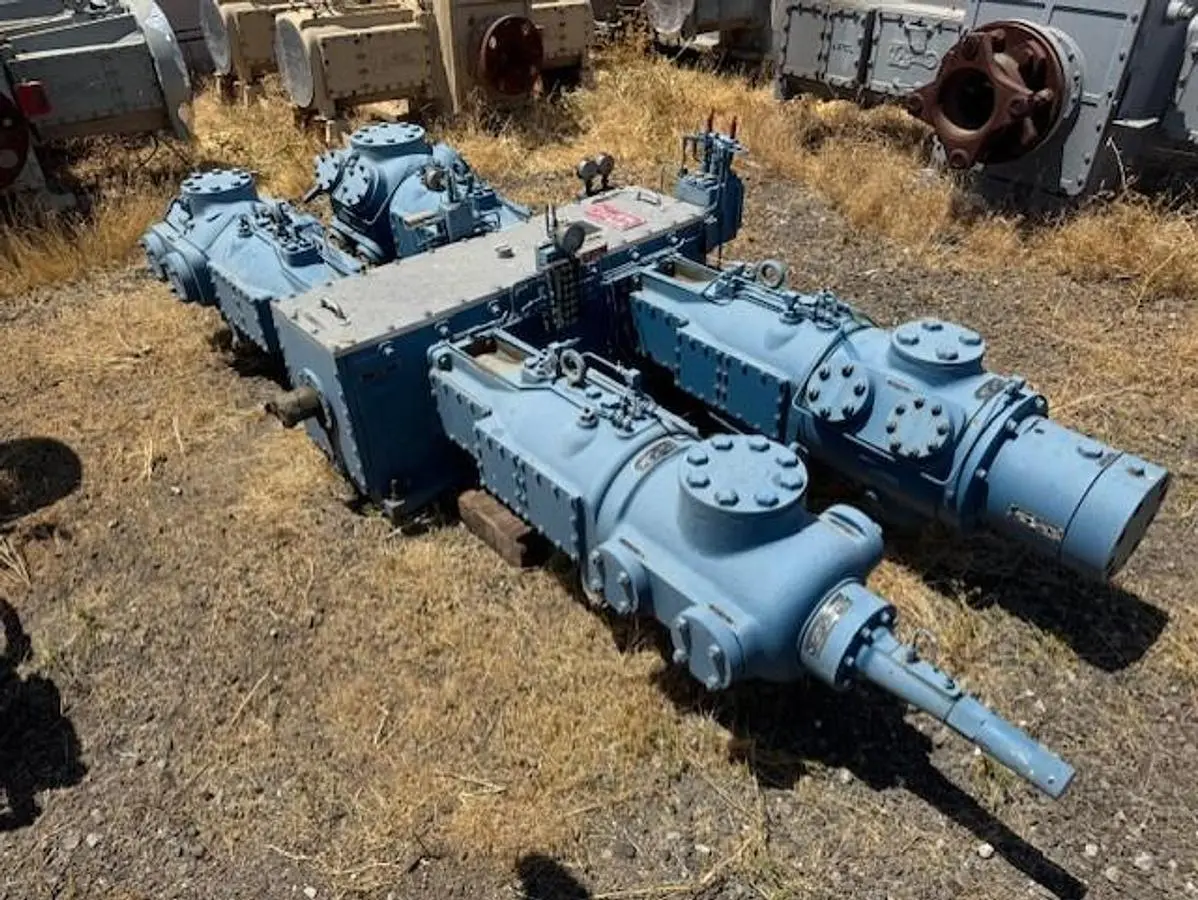

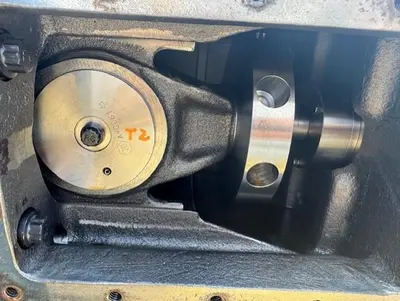

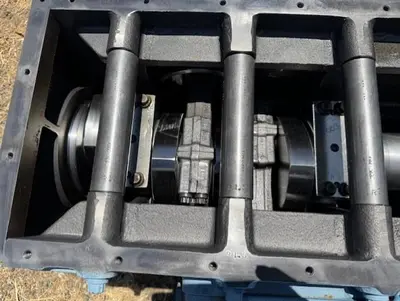

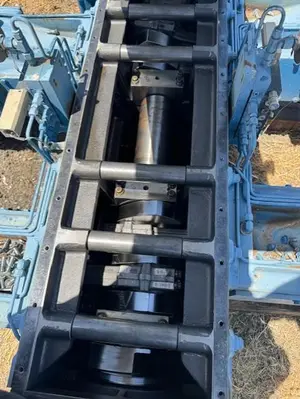

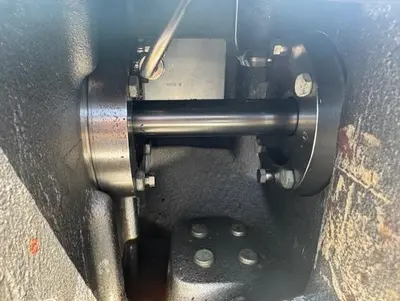

Ariel Compressor Frame
Model: JG-4
Stroke: 3.5"
RPM: 1500
Rod Load: 19,000 LBS total
MFG Date: October 2014

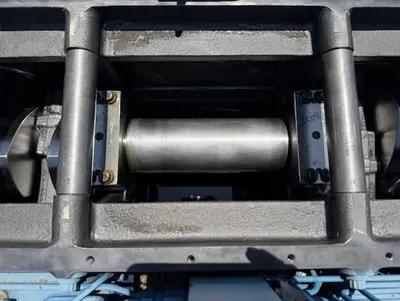

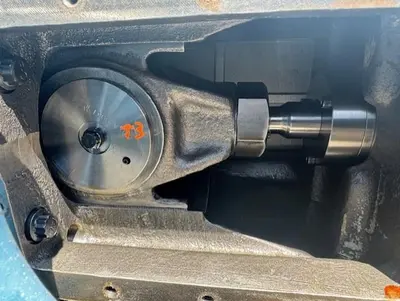

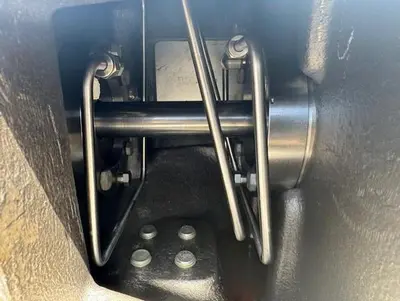

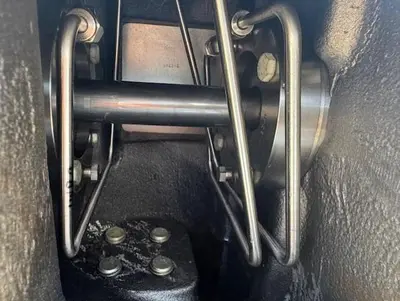

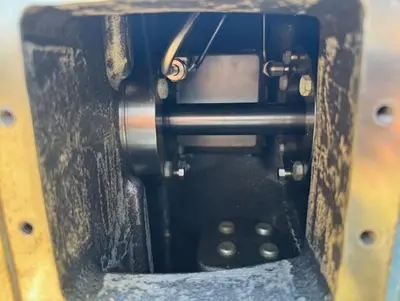

Has L3C Crosshead Guides
SN: F-48037

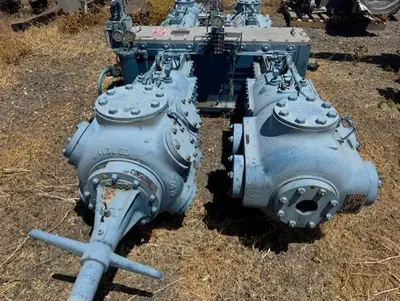

1st Stage Ariel Cylinder
Bore: 7.5”
Stroke: 3.5”
Class: JG
MAWP: 600
Complete with VVCP
SN: C-169641
2nd Stage Ariel Cylinder
Bore: 5.125”
Stroke: 3.5”
Class: JG
MAWP: 865
Complete with standard fixed head
SN: C-169639
3rd Stage Ariel Cylinder
Bore: 3.625”
Stroke: 3.5”
Class: JG
MAWP: 1640
Complete with VVCP
SN: C-169640
4th Stage Ariel Tandem Single Acting Cylinder
Bore: 3.375”
Stroke: 3.5”
Class: SG-CE
MAWP: 2550
SN: C-169642
5th Stage Ariel Tandem Single Acting Cylinder
Bore: 2”
Stroke: 3.5”
Class: SGFS-HE
MAWP: 5000
SN: C-169643
US Motors - Titan Electric Motor
Model: 6220-J/C3
Frame: 449TZ
Enclosure: TEFC
Ph: 3
Hp: 250
RPM: 1190
Hz: 60
Volts: 460
Amps: 279
SN: V1020141043-0001R001
