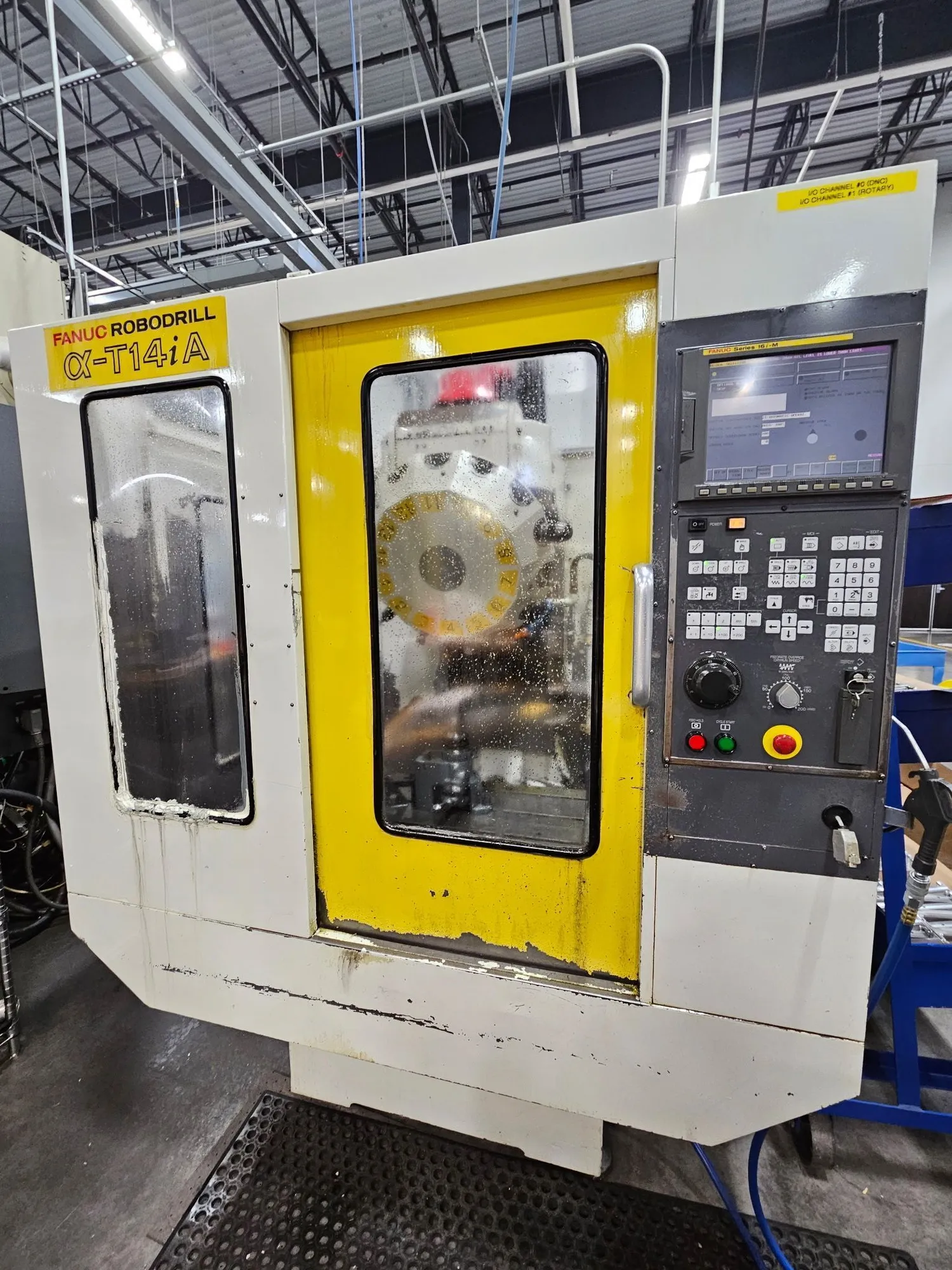

USED 1998 FANUC ROBODRILL ALPHA T14IA
Overview
Description
1998 Fanuc Robodrill Alpha T14iA with Fanuc 16i-M Control, 8,000 RPM, BT-30 Spindle, 14 ATC, and 6" Kurt Vice.
Specifications
| X | 19.7" | 500.38 mm |
|---|---|---|
| Y | 15" | 381 mm |
| Z | 11.8" | 299.72 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 14 | 14 |
| Taper | BT-30 | BT-30 |
| Control | CNC (FANUC 16i-M) | CNC (FANUC 16i-M) |
| Dimensions | 73" x 61" x 87" | 73" x 61" x 87" |
| Weight | 4000 LBS | 4000 LBS |
Table Size.......................25.59" x 14.96"
Maximum Table Load...............440 LBS
Spindle Nose to Table Top........5.9" - 17.71"
X-Axis Travel....................19.6"
Y-Axis Travel....................14.96"
Z-Axis Travel....................11.81"
Spindle Motor....................7.5 HP
Spindle Taper....................BT-30
Spindle Speeds...................80 - 8000 RPM
Rapid Traverse Rates.............1889 IPM
Cutting Feed Rate................0.1 - 787 IPM
Tool Changer Capacity............14 Station ATC
Chip / Coolant Pan...............52" x 18" x 18"; 145 LBS
Machine Dimensions...............73" x 61" x 87"
Machine Weight...................4,000 LBS
Equipped With
Fanuc 16i-M CNC Control
8,000 RPM, BT-30 Spindle
Kurt 6" Vice
14 Station ATC
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
