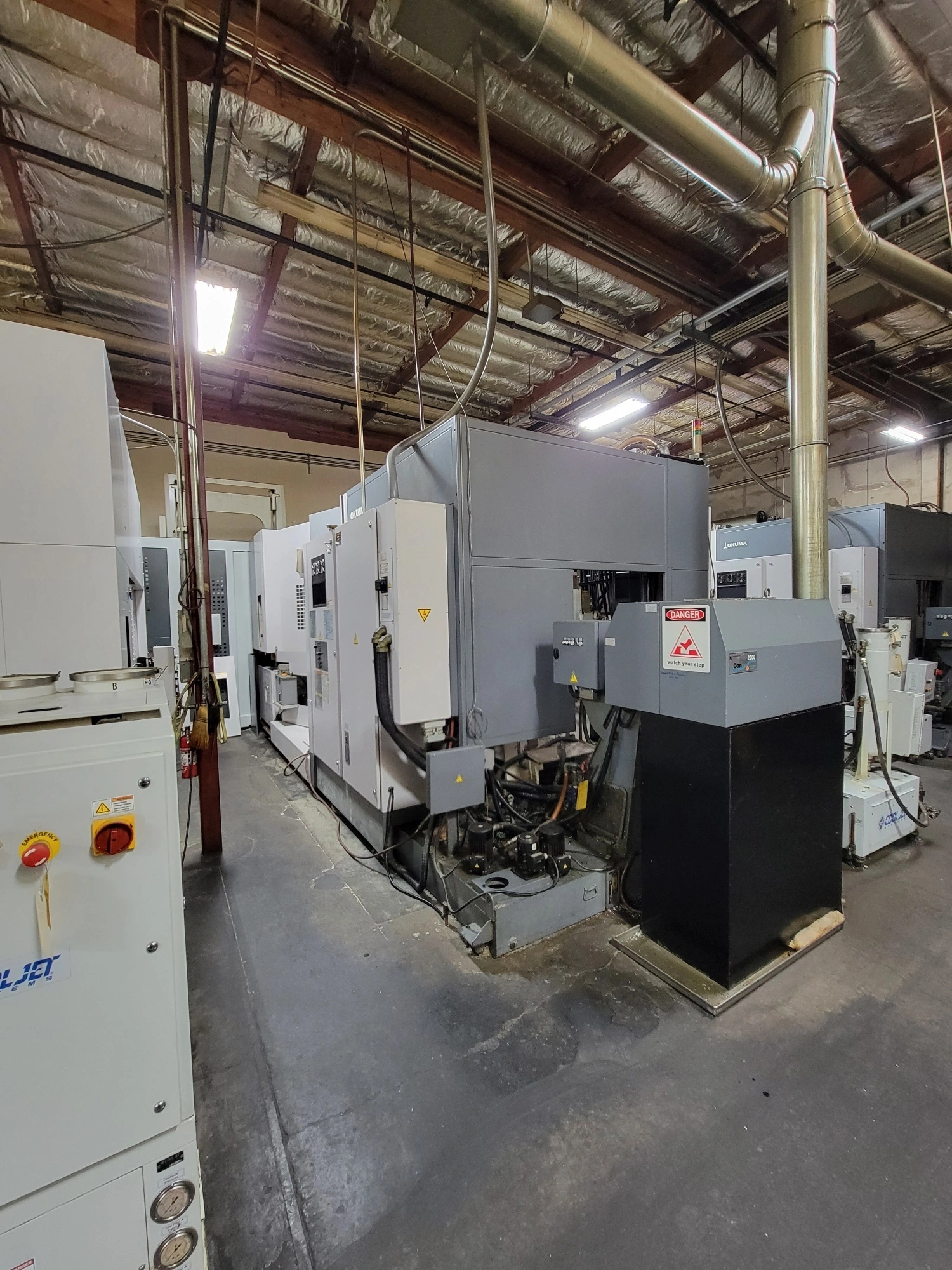

2008 Okuma MA-600HB (3) Machine FMS System with 18 Pallets, 1 Degree 4th Axis, OSP E100L Control, 60 ATC, 12,000 RPM, CAT-50 Spindle, CoolJet High Pressure Coolant, Consep 2000 Conveyor.
| X | 39.37" | 1,000 mm |
| Y | 35.43" | 899.92 mm |
| Z | 39.37" | 1,000 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 60 | 60 |
| Taper | CAT-50 | CAT-50 |
| Pallet-W | 24.8" | 629.92 mm |
| Pallet-L | 24.8" | 629.92 mm |
| # Axis | 4 | 4 |
| Control | CNC (OSP E100L Control) | CNC (OSP E100L Control) |
| Dimensions | 256" x 134" 125" | 256" x 134" 125" |
| Weight | 57,200 LBS | 57,200 LBS |
Pallet Size...................24.9" X 24.9""
Max Pallet Load...............2640 LBS
Pallet Indexing...............1 Degree
X-Axis Travel.................39.37"
Y-Axis Travel.................35.43"
Z-Axis Travel.................39.37"
Spindle Motor.................40 HP
Spindle Speed.................12,000 RPM
Spindle Taper.................CAT-50
Tool Changer..................60 ATC
Machine Dimensions............256" x 134" 125"
Weight........................57,200 LBS
OSP E100L CNC Control
18 Pallet FMS System
1 Degree 4th Axis
12,000 RPM, CAT-50 Spindle
Cooljet High Pressure Coolant
Consep 2000 Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
