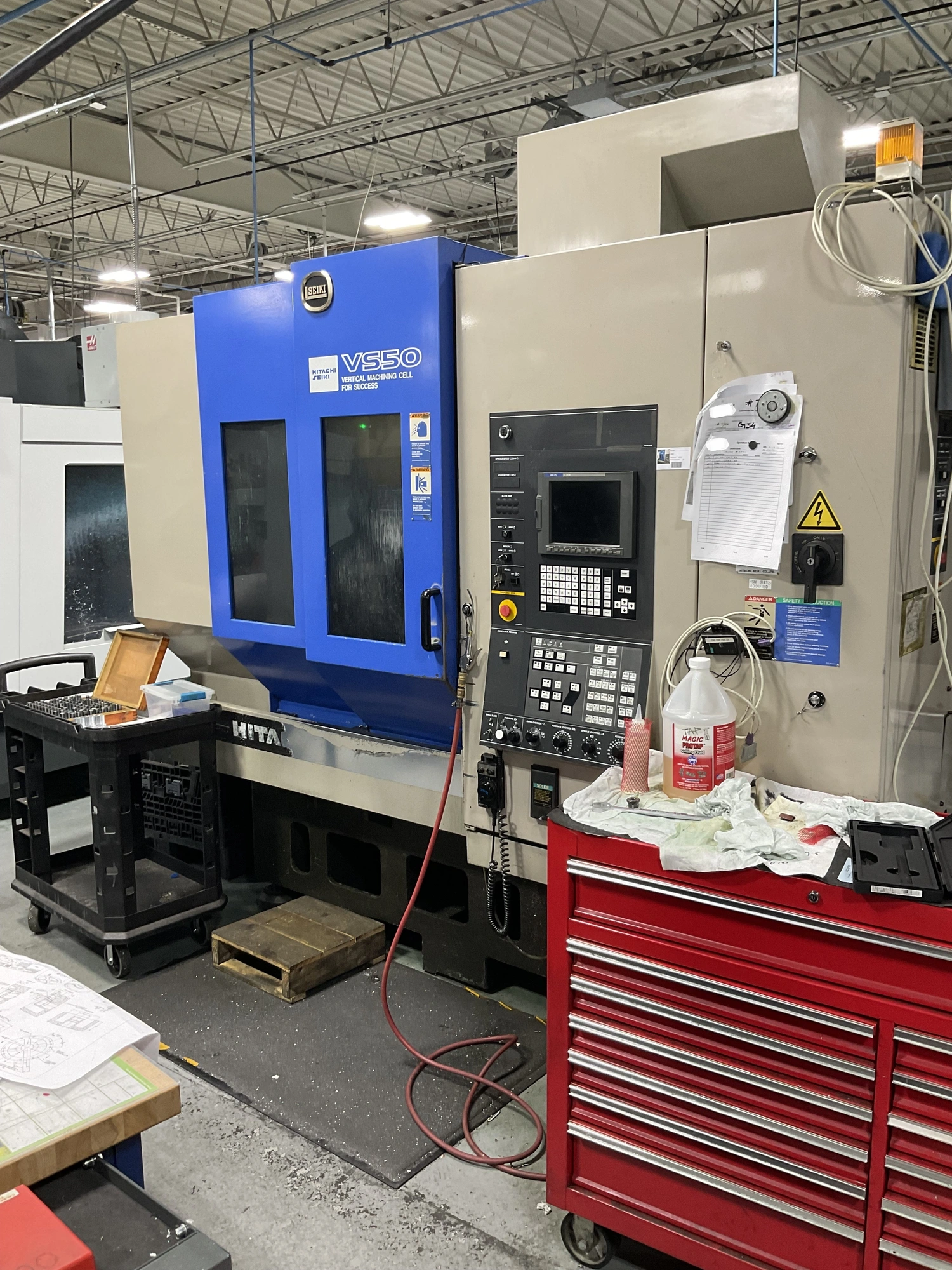

Hitachi Seiki VS50 Vertical Machining Center with Seicos 18M Control, 10,000 CAT-40 Spindle, 44" x 20" Table, 20 ATC, and Chip Conveyor
| X | 40" | 1,016 mm |
| Y | 20" | 508 mm |
| Z | 17" | 431.8 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 20" | 508 mm |
| Table-L | 44" | 1,117.6 mm |
| # Axis | 3 | 3 |
| Control | CNC (Seicos) | CNC (Seicos) |
| Weight | 18,000 LBS | 18,000 LBS |
Table Size........................44" x 20"
Max. Weight on Table..............1,700 LBS
X-Axis Travel.....................40.1"
Y-Axis Travel.....................20.1"
Z-Axis Travel.....................17.7"
Spindle Power.....................30 HP
Taper Size........................40
Speed Range.......................10,000 RPM
Rapid X,Y & Z.....................1570 IPM
Cutting Feedrate..................945 IPM
Tool Changer Capacity.............20 ATC
Max Tool Weight...................31 LBS
Max Tool Length...................11.8"
Max Tool Diameter.................4.90"
Air Required......................80 PSI, 4 SCFM
Machine Weight....................18,000 LBS
Seicos 18M CNC Control
Bridge Type Contsructions for Heavy Cutting
PCMCIA Card Slot
MPG Control
20 Tools High Speed Tool Changer
High precision 10,000 RPM Spindle
Powerful 30 hp high torque spindle motor
Spindle Chiller
RS-232 Port
Direct Tapping
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
