This model has 4.5” spindle bore, D1-11 Camlock spindle nose, 16” wide bed, 15 HP motor offers great capacity for large work piece. The low speed goes down to 10 rpm offering enough torque for heavy cutting.
| Lathe Type | Precision | Precision |
| Swing Over Bed | 30" | 762 mm |
| Distance Between Centers | 80" | 2,032 mm |
| Spindle Bore | 4.5" | 114.3 mm |
| Spindle Nose | D1-11 Camlock | D1-11 Camlock |
| Number Of Spindle Speeds | 12 | 12 |
| Range Of Speeds | 10-1,000 rpm | 10-1,000 rpm |
| Number of Inch Threads | 2-56 tpi, 44 | 2-56 tpi, 44 |
| Motor | 15 hp | 11.2 kW |
| Phase | 3 | 3 |
| Voltage | 230/460v | 230/460v |
| Dimensions | 12.25 x 3.75 x 6.41 ft | 12.25 x 3.75 x 6.41 ft |
| Weight | 6,732 lbs. | 6,732 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

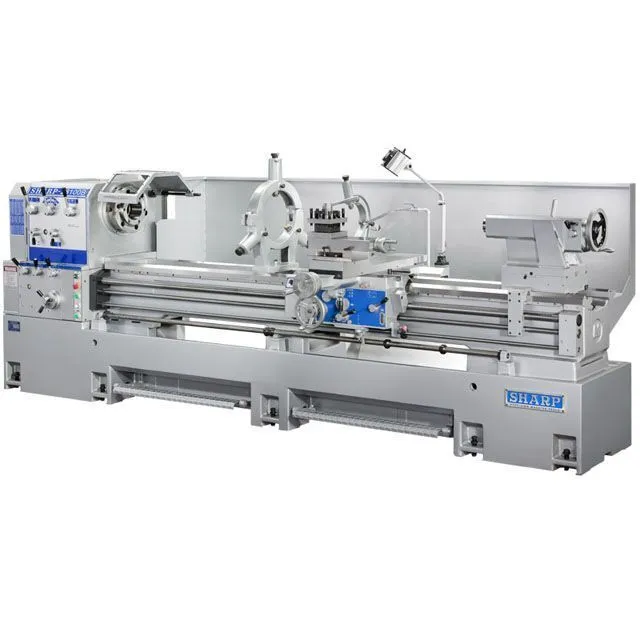

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
3-jaw chuck, different sizes
4-jaw chuck, different sizes
Taper attachment
Chuck guard w/ limit switch
Tool guard w/ limit switch,at front of compound
Lead screw wrapped around screw (accordion style)
Lead screw guard, cover entire front of machine bed
Safety cover at the end of spindle
UL or CSA electrical components, UL spindle motor, CSA pump motor
Steady rest
Quick change tool holder (aloris) (7 pcs holder) 1.25" tool
Live center – (dual bearing) MT #5
5C lever collet closer
5C collet set (1/8 to 1/16" x 1/16" ) (16 pcs)
Micrometer carriage stop
Roller jaws set (3 pc)
