USED SIP GENEVOISE MPKT-3KT
Overview
Description

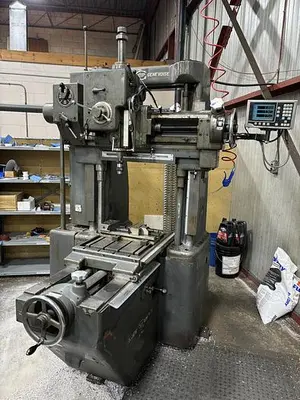

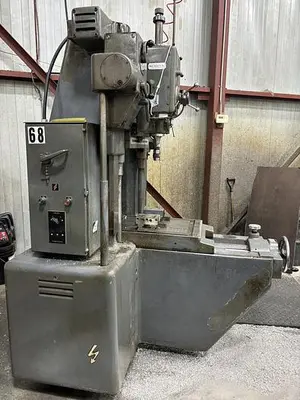

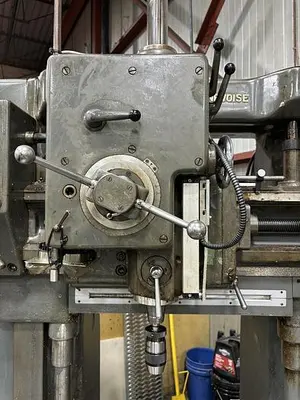

Discover the ultimate in precision with the SIP GENEVOISE Jig Boring Machine, model MPKT-3KT, enhanced with the Fagor 2 Axis DRO for exceptional accuracy. Tailored for high-precision engineering, this machine delivers meticulous control and stability for your most critical boring projects. The MPKT-3KT model stands out with its robust design and superior performance, making it ideal for creating intricate parts in toolmaking, mold manufacturing, and more. With easy-to-use features and reliable performance, the SIP GENEVOISE Jig Boring Machine ensures consistent, high-quality results on all your complex boring tasks. Elevate your manufacturing processes with this top-tier equipment, designed to meet the needs of modern precision engineering
Specifications

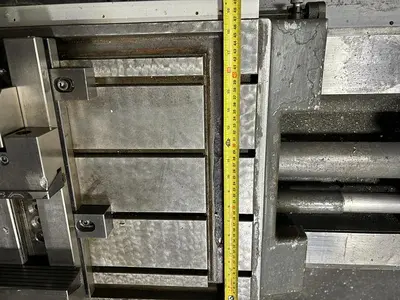

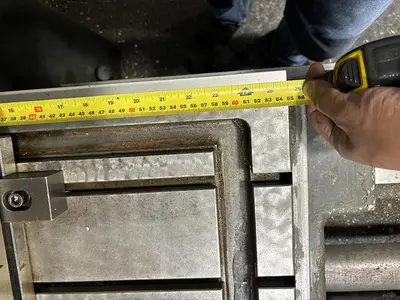

Table Area: 650mm x 470mm
Approx Distance Between Columns: 600mm
Approx Max Distance from Table Top to Under Cross Rail: 650mm
Spindle Speeds: 75 to 2000 RPM
Total Vertical Travel: 480 MM
Longitudinal Table Travel: 470 MM

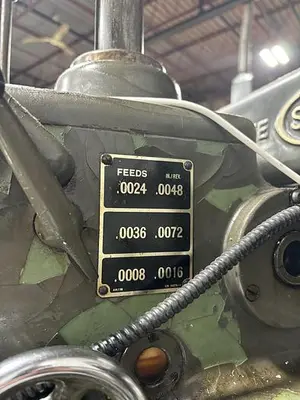

Spindle Feed Rates: 0.02 MM/REV TO 0.18 MM/REV
Spindle Travel: 150 MM
Cross (Side-To-Side) Travel Of Head: 370 MM
Max. Distance B/W Table Top & Spindle Nose: 640MM
Spindle Taper: MT 2
Equipped With
2 Axis FAGOR DRO
