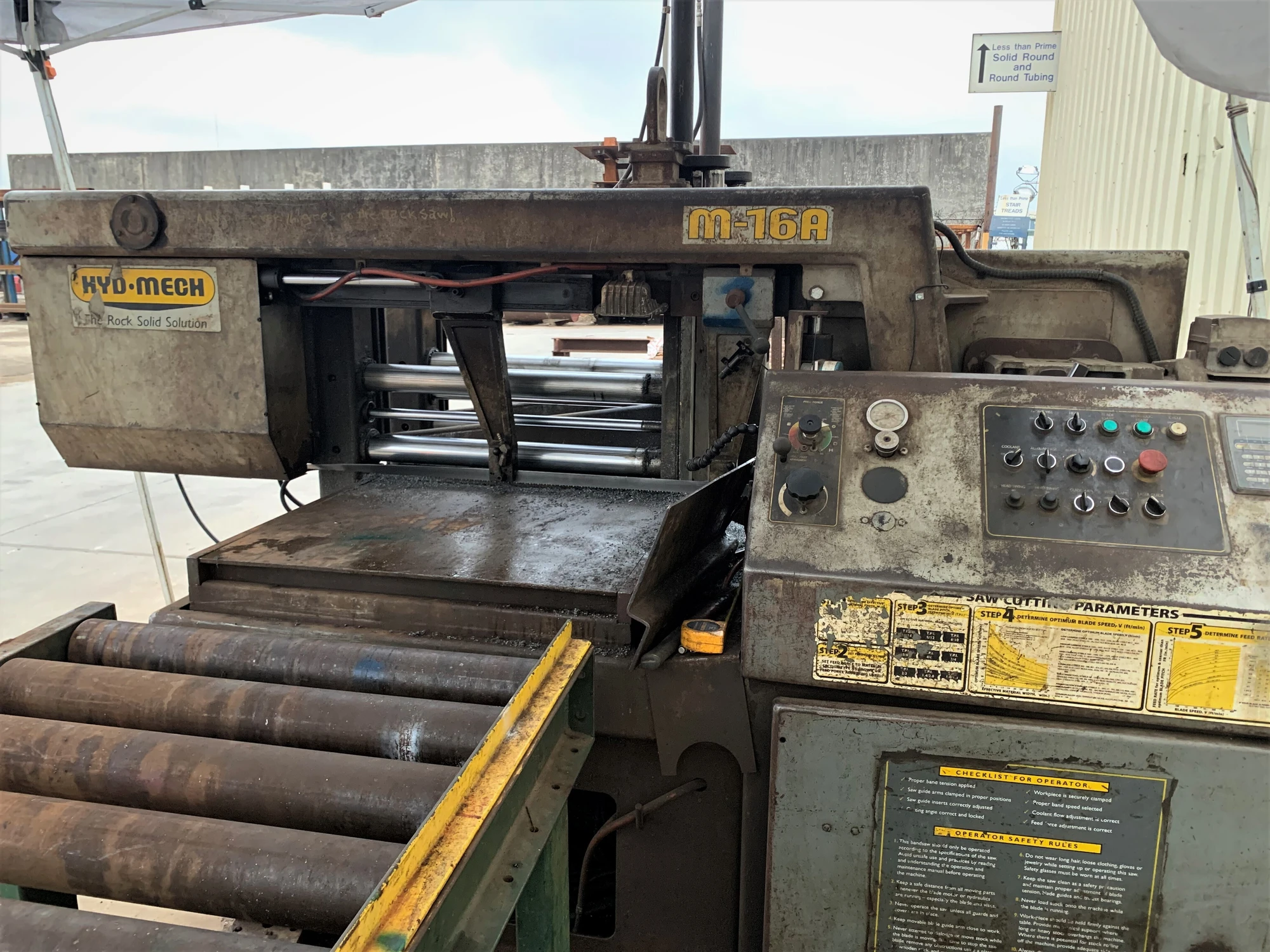

2006 Hyd-Mech M16A 16" x 25" Automatic Horizontal Band Saw
| Rect-Cap (H) | 16" | 406.4 mm |
| Rect-Cap (W) | 25" | 635 mm |
| Rounds-Cap | 16" | 406.4 mm |
| Power | 7.5 hp | 5.6 kW |
| Type (Auto, Manual, Semi) | Auto | Auto |
| Blade Width | 1.25" | 31.75 mm |
| Blade Length | 222" | 5,638.8 mm |
| Weight | 8,000 LBS | 8,000 LBS |
Capacity (Rectangle)..................16" x 25"
Capacity (Round)......................16"
Capacity (Round @ 45°)................16"
Capacity (Round @ 30°)................11"
Bundling Capacity.....................16" x 25"
Blade Size............................1-1/4" x 18’6"
Blade Drive...........................7.5 HP
Blade Speeds (Infinitely Variable)....50 – 350 SFM
Blade Wheel Diameter..................19"
Shuttle Stroke........................0 – 33" Single Stroke, Multi Indexing Standard
Vise Control..........................Hydraulic
Workload..............................8,000 Lbs.
Automatic PLC Controller
Heavy Duty Infeed & Outfeed Conveyors
multi-indexing up to 33" in a single stroke
Powered-Driven Angle Adjustment
7.5HP VFD True direct blade drive
Hydraulic positive down feed
Automatic chip removal auger
Coolant System
Unist Blade Coolant Mister
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
