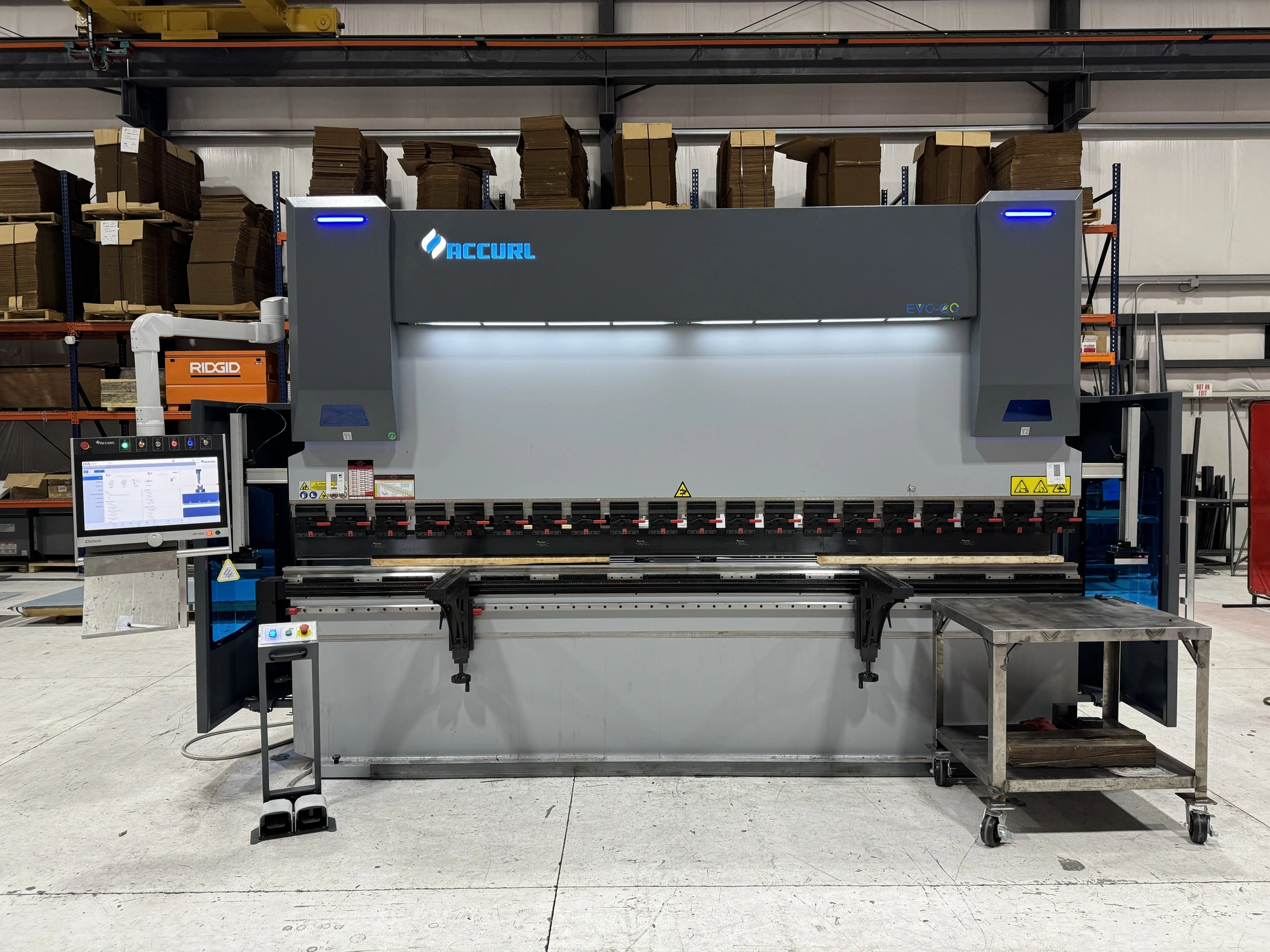

USED 2023 ACCURL Genius Pro 13' x 245 Ton
Overview
Description
2023 Accurl USA GeniusPro 13’ x 245T CNC Press Brake with Delem DA-66S Control, 245 Ton x 13', 7.87" Stroke, 6-Axis Backgauge with Crowning, Upper Clamping, Universal Die Bed.
Specifications
| Tonnage | 245 T | 222.261 t |
|---|---|---|
| Type | HYD | HYD |
| Overall Length | 157' | 47.9 m |
| Between Housings | 129' | 39.3 m |
| Stroke | 7.87" | 199.9 mm |
| # Axis | 6 | 6 |
| Control | CNC (Delem DA-66S) | CNC (Delem DA-66S) |
| Weight | 31,000 LBS | 31,000 LBS |
Capacity.....................245 Tons
Bed Length...................157"
Backgauge Travel.............39"
Daylight.....................18.5"
Stroke.......................7.87"
Throat Depth.................16.1"
Distance Between Frames......129"
Motor........................25 HP Evo-Go Hybrid Servo Hydraulic (Very Quiet and Fast)
Power........................220V /3PH
Weight.......................31,000 LBS
Equipped With
Delem DA-66S CNC Control
6-Axis Backgauge with Crowning
Upper Clamping: Quick Clamps with Vertical Load/ Unload European fitting
Die Bed: Universal (Euro or American)
Tooling Included: Upper segmented punch, lower 4 way V die
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
