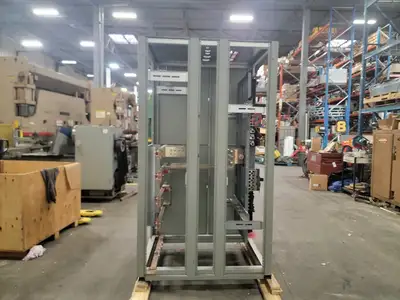

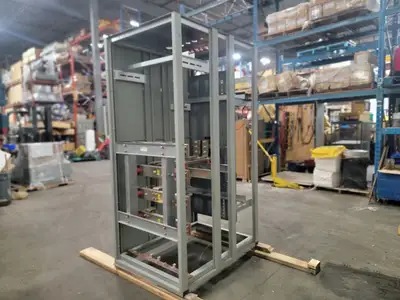

USED SQUARE D PJA36120U44A

Series: Powerpact
Voltage: 600 volts
Phase: 3-phase

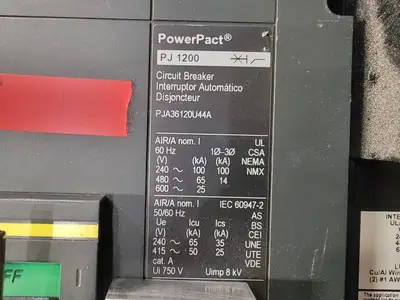

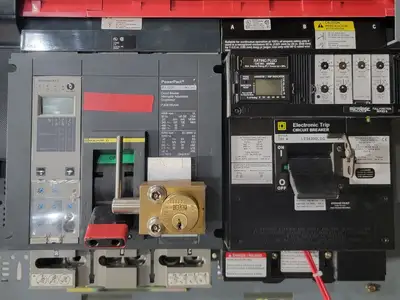

Square D / Schneider PJ 1200 PowerPact P-Frame (1200 A)
Type: Molded Case Circuit Breaker (MCCB)
Frame: P-Frame
Rated Current: 1200 A
Poles: 3-Pole
Voltage: Up to 600 VAC
Interrupting Capacity: Typically 25-65 kA @ 480-600 V (depends on suffix)
Trip Unit: Thermal-magnetic or electronic (model-dependent)
Mounting: Unit mount / switchgear feeder
Application: Large feeder protection / distribution

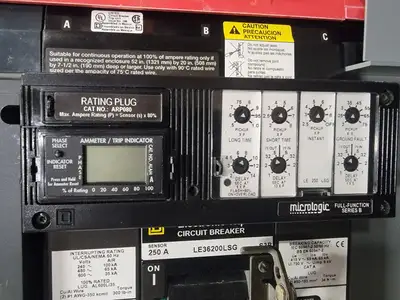

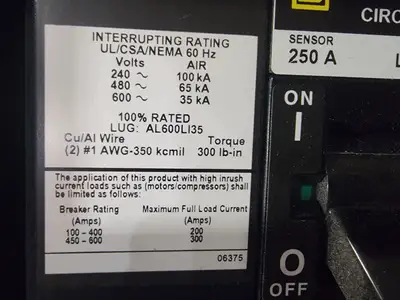

Square D - LE36200LSG - L-Frame 200 A
Type: Molded Case Circuit Breaker
Frame: L-Frame (PowerPact L)
Rated Current: 200 A
Poles: 3-Pole
Voltage: Up to 600 VAC
Trip Unit: Thermal-magnetic
Mounting: Unit mount
Square D - PJ 800 - P-Frame 800 A
Type: Molded Case Circuit Breaker
Frame: P-Frame
Rated Current: 800 A
Poles: 3-Pole
Voltage: Up to 600 VAC
Application: Large feeder / sub-distribution

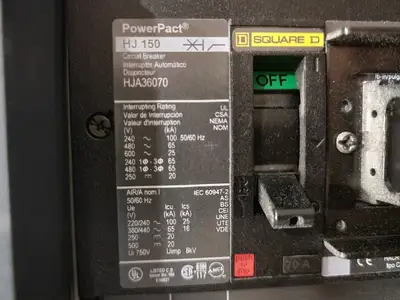

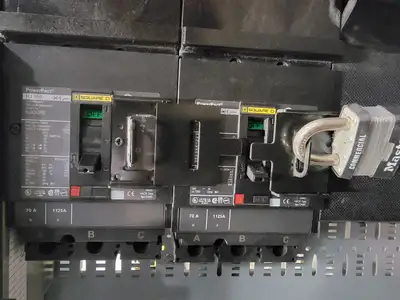

Square D -HJ150 - H-Frame 150 A (x2)
Type: Molded Case Circuit Breaker
Frame: H-Frame (PowerPact H)
Rated Current: 150 A
Poles: 3-Pole
Voltage: Up to 600 VAC
Trip Unit: Thermal-magnetic
Application: Branch feeder / panel distribution

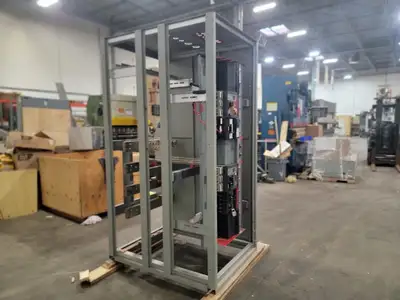

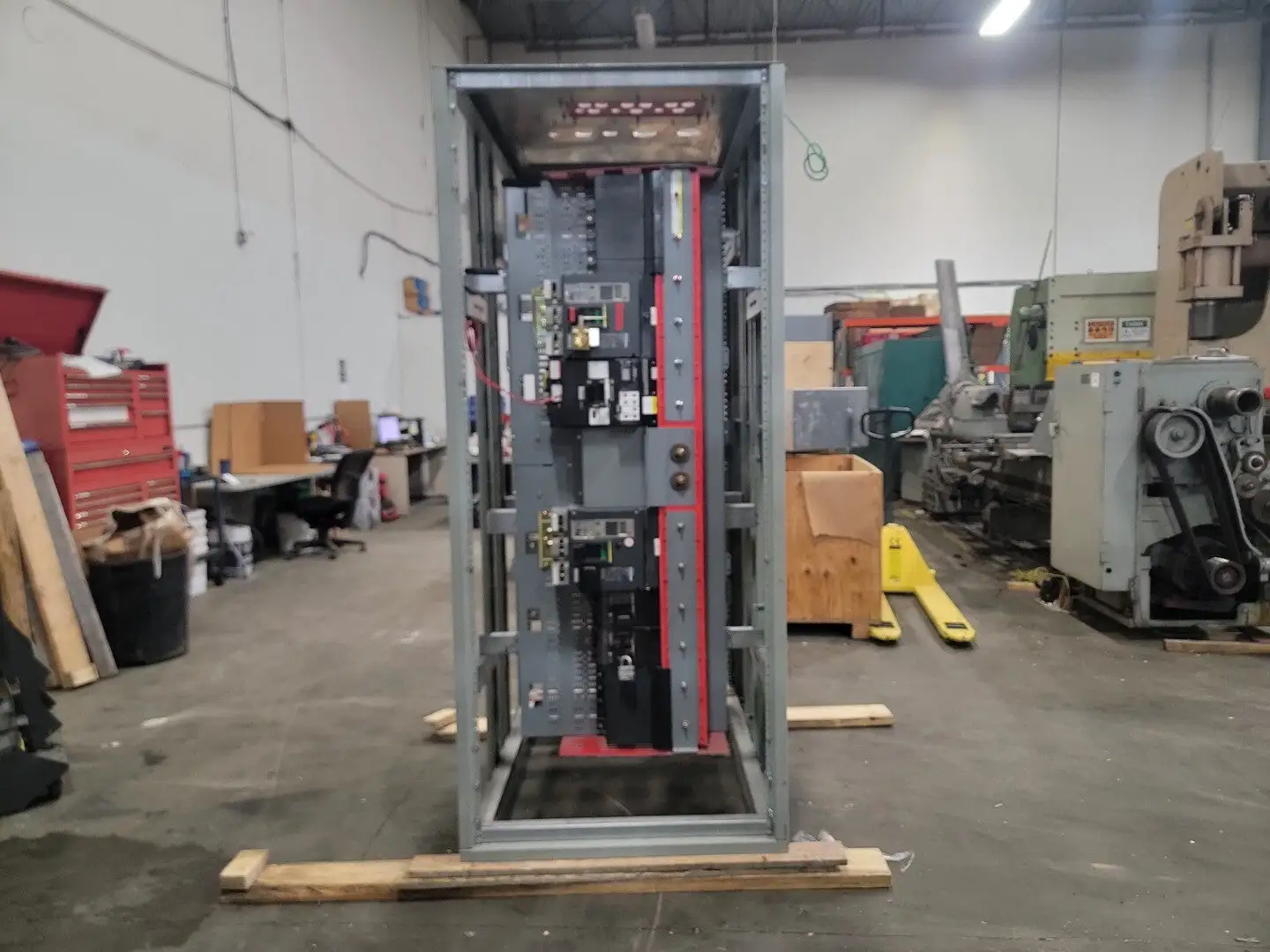

Total Installed Distribution Capability:
1200 A main feeder
800 A secondary feeder
200 A feeder
2 x150 A branch feeders
