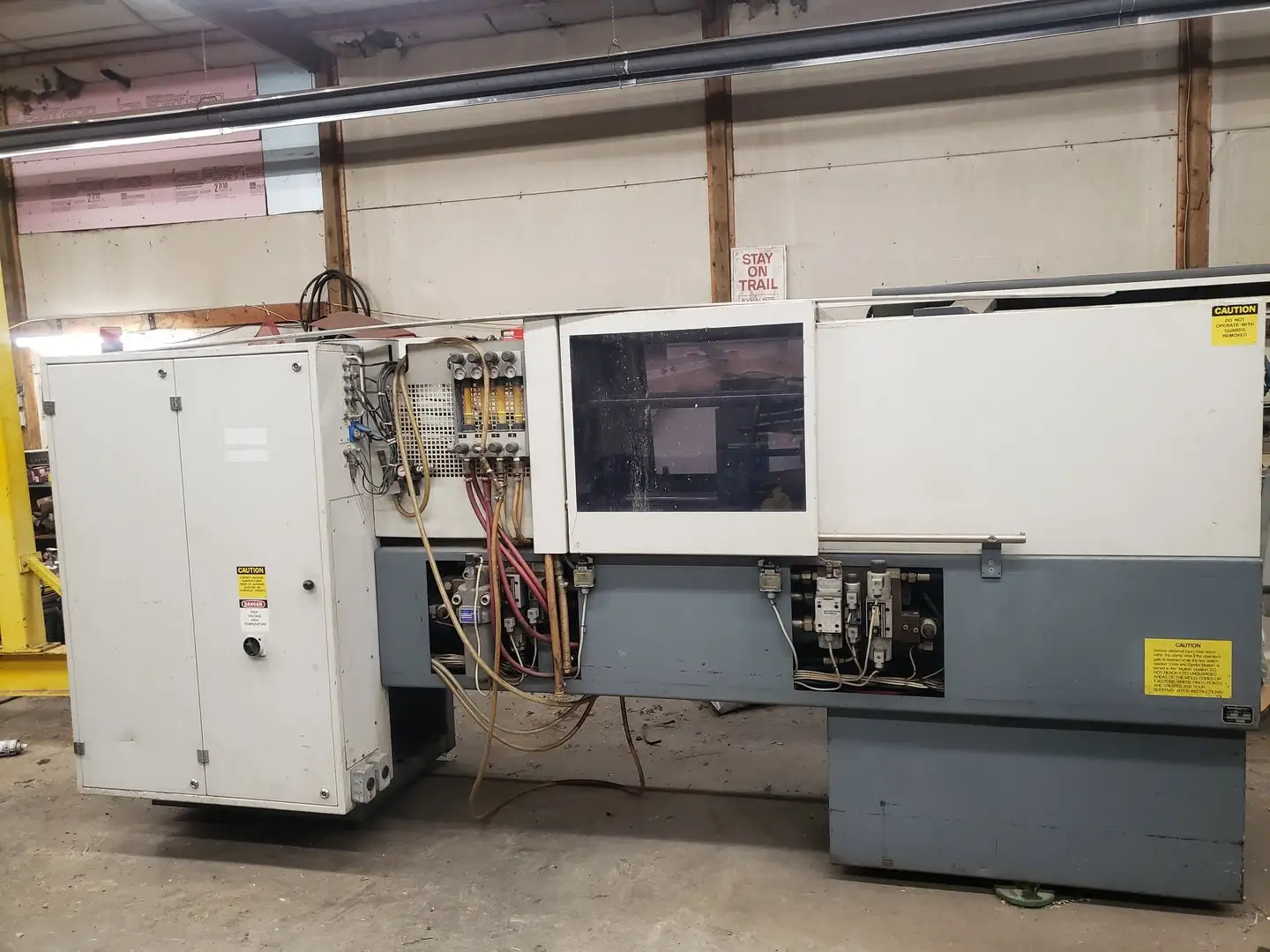

USED 1994 BATTENFELD BA 600/200 CDC

Voltage: 575 volts
Phase: 3-phase
Clamping unit
Clamping force: 600 kN
Size of mould platens (h x v): 490 mm x 490 mm // 19.29 in. x 19.29 in.
Distance between tie bars (h x v): 320 mm x 320 mm // 12.60 in. x 12.60 in.
Mould opening stroke: 425 mm // 16.73 in.
Mould height min.: 150 mm // 5.91 in.
Mould height max.: - mm
Max daylight: 475 mm // 18.70 in.
Hydraulic ejector - stroke: 150 mm // 5.91 in.
Ejector force forward/backward: 27.5 kN
Injection unit
Screw diameter: 35 mm // 1.38 in.
Ls/D ratio: 18
Injection pressure: 1485 bar
Stroke volume: 134.7 ccm
Shot weight, PS: 122.5 g
Injection stroke: 140 mm // 5.51 in.
Screw speed: 228 1/min
Plasticising rate max.: 15 g/s
Nozzle pressure: 57.7 kN

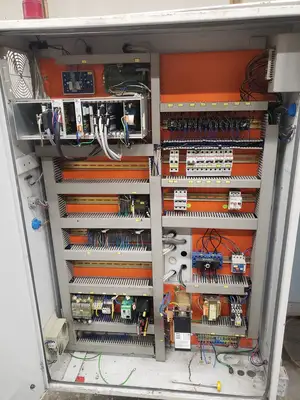

Electric and Hydraulic Equipment
Installed heating capacity: 7.88 kW // 10.57 hp
Adjustable barrel heating zones: 1+3
Pump power: 11 Kw // 14.75
Oil: 170 L
