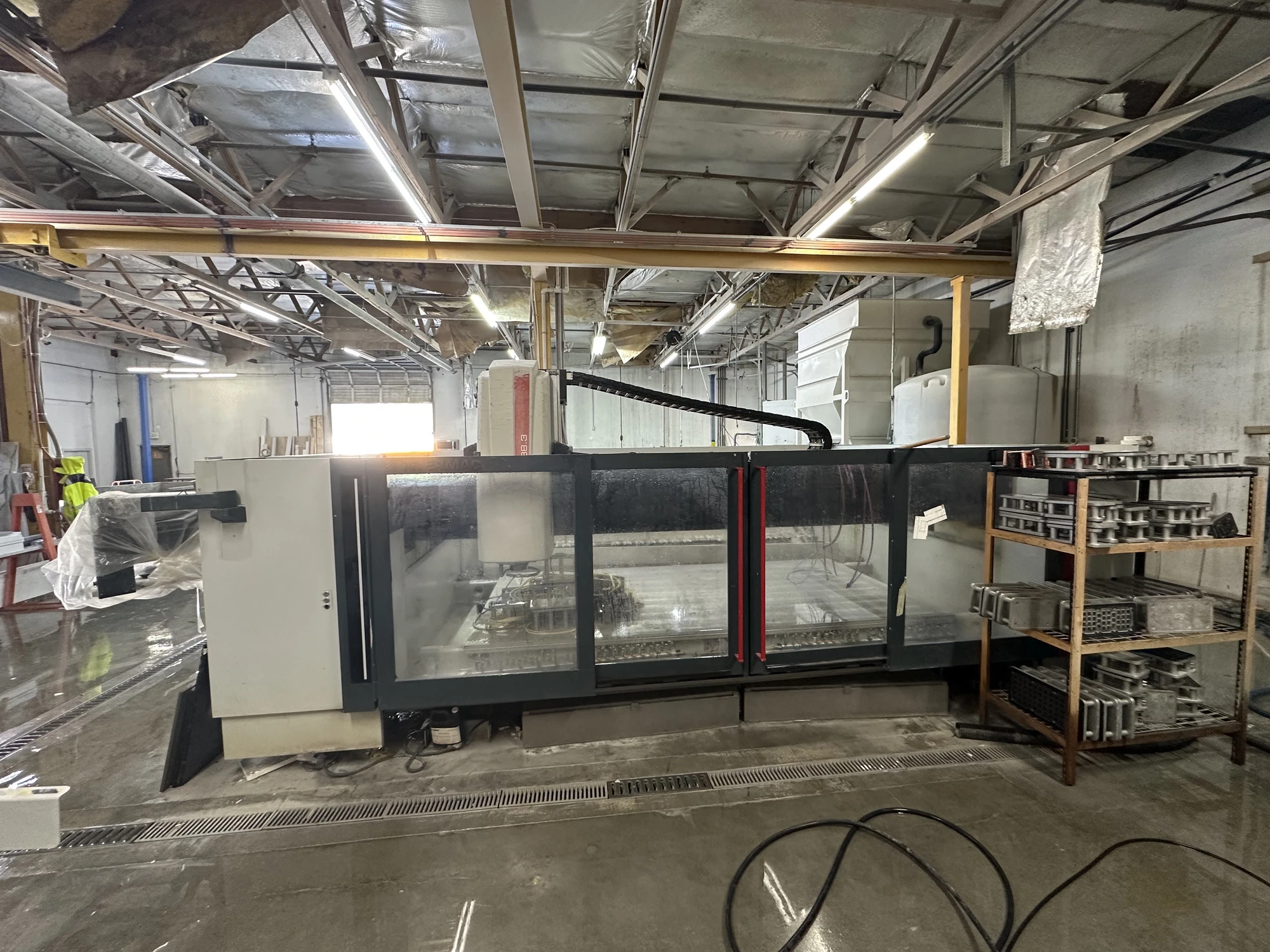

2017 Intermac Master 38.3 CNC Router, used, features a 78"x126" table, 15 hp, and 12,000 RPM. Includes tooling: vacuum cups, ISO 40 holders, and polishing tools. Dimensions: 255"W x 193"L x 8.45'H. Weight: 15,100 lbs.
| Table-W | 78" | 1,981.2 mm |
| Table-L | 126" | 3,200.4 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| Taper | ISO 40 | ISO 40 |
| # Axis | 3 | 3 |
| X | 126" | 3,200.4 mm |
| Y | 79" | 2,006.6 mm |
| Z | 13.4" | 340.36 mm |
| Control | CNC | CNC |
| Dimensions | 232 in x 110 in x 118 in | 232 in x 110 in x 118 in |
| Weight | 15000 lbs | 15000 lbs |
Included Tooling & Accessories:
Vacuum Cups (BVC 180 Series)
6 × 200 × 200 × 180 mm
8 × 150 × 300 × 180 mm
2 × 50 × 400 × 180 mm
3 × 40 × 300 × 180 mm
11 × 200 × 400 × 180 mm
IMS Tool Holders (ISO40 – Intermac Compatible)
11 × Grinding Wheel Holder — Stainless Steel
14 × Grinding Wheel Holder — Stainless Steel
9 × Drill Point Holder — 1/2" Stainless Steel
Polishing & Profiling Tools
2 × Dongsin Twin Segment Finger Bits (20 × 40 mm)
1 × Core Bit
1 × ADI UHS Heavy-Duty Stubbing Wheel
1 × Complete Set of Eased Polish Tools (Positions 1–7)
6 × Intermac Quick Connectors
Machine Specifications
Width: 255"
Length: 193"
Height: 8.45'
Weight: 15,100 lbs
