Acer 3CVS 3HP vertical mill, used, 1996. Features Newall DRO, power drawbar, 9" x 42" table, 3 hp motor, and R8 taper. Travel: longitudinal 28", cross 12", knee 16". Spindle speed 60-4,500 RPM. 3-phase, ideal for precision machining needs.
| Table-W | 9" | 228.6 mm |
| Table-L | 42" | 1,066.8 mm |
| Travel-Long | 31" | 787.4 mm |
| Travel-Cross | 12" | 304.8 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,500 RPM | 4,500 RPM |
| Taper | R8 | R8 |
| Weight | 2300 | 2300 |

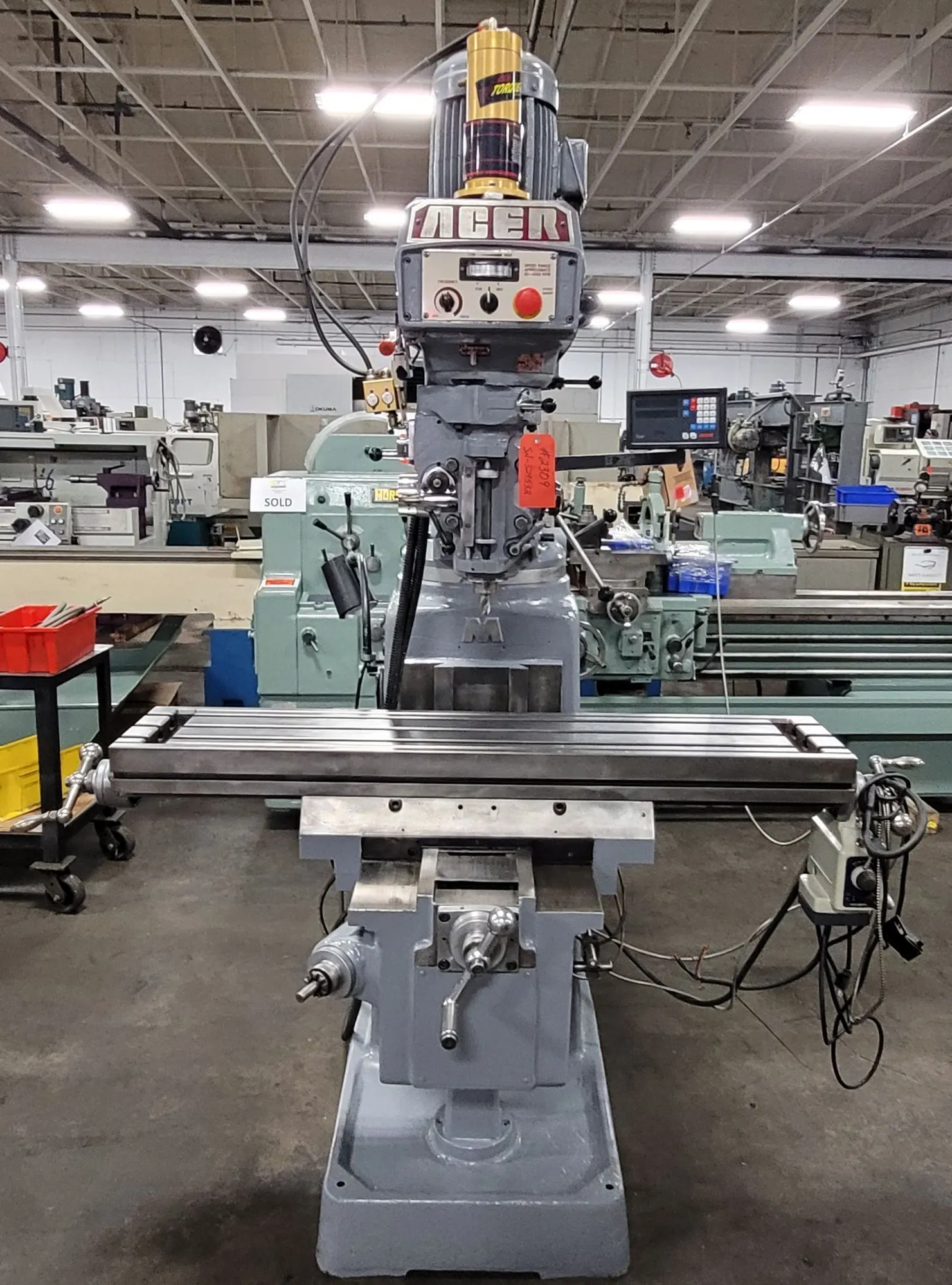

Acer 3CVS Mill
X-axis Power Feed
Maxi Rite Power Drawbar
Newall Topaz Digital Readout (X & Y Axis)
X Axis Power Feed
Table Size: 9" x 42"
3 HP Motor wired 230V 3 Phase
Spindle Speed: 60 - 4,500 RPM
Spindle Taper: R8
Longitudinal Travel: 28"
Cross Travel: 12"
Vertical Knee Travel: 16"
Ram Travel: 12"
T-Slot Number, Size: (3) 5/8"
Head Left To Right: 90 Degrees
Head Front To Back: 45 Degrees
Quill Diameter: 3-3/8"
Quill Travel: 5"
