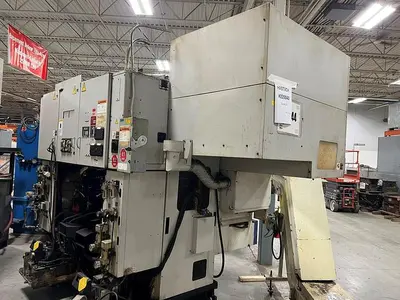

USED 2010 MURATA MACHINERY MW-120
Overview
Description

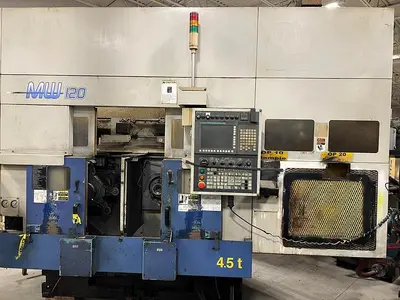

Experience optimal machining with the MURATEC MW-120 Turning Center, a tested gem from Gizmo Machine Tools' inventory. This single gantry-style machine promises precision and reliability. With chip conveyors, it ensures smooth and uninterrupted operations, minimizing the hassle of manual chip management. Its built-in coolant tank enhances tool life and maintains thermal stability during prolonged machining tasks. To facilitate its operators, the MW-120 is accompanied by comprehensive books and manuals, ensuring smooth setup and troubleshooting. Trust in Gizmo Machine Tools' rigorous testing to bring you a turning center that meets the highest standards of performance and durability.
Specifications
Spindle Bore: 1.85

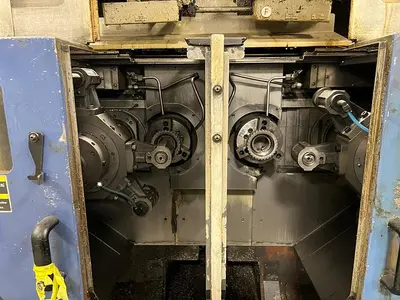

Distance between spindles: 13.38 IN
Max Swing: 11.61 IN
chuck size: 8 IN
Max diameter w/ Loader: 4.75 IN
Max diameter without Loader: 9.05 IN

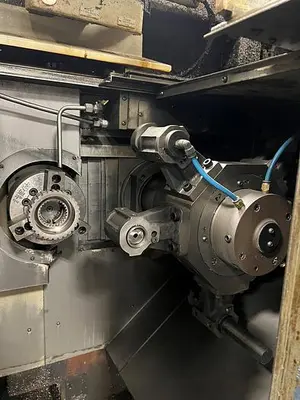

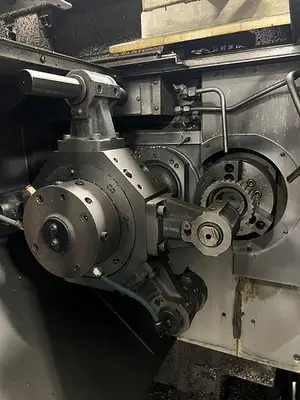

Number of turret stations: 8 X 2
Stroke - X-axis radius: 5.11 IN
Stroke - Z-axis: 5.7 IN
Rapid Traverse rate X-axis: 944.8 IPM
Rapid Traverse rate Z-axis: 944.8 IPM
Max spindle speed: 4500 RPM
Standard tools - Shank size OD tools: .787 IN
Standard tools - Max shank diam boring bar: 1.57 IN
Machine foot print Length x width: 74.8 IN X 69.2 IN
Machine weight: 4400 kg
GANTRY LOADER (X,Y,Z): X axis adjusted to layout , Y- 21.73 IN, Z- 8.07 IN
Equipped With

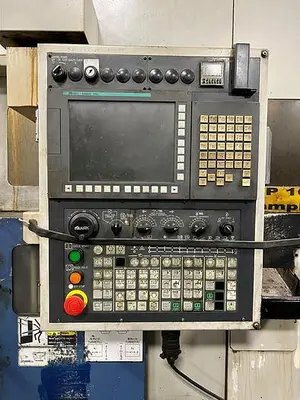

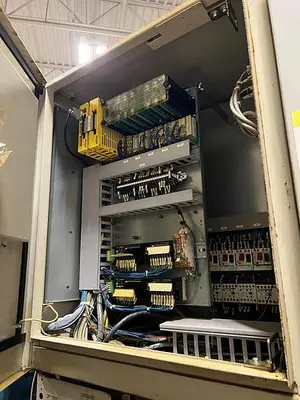

Controller Muratec Fanuc CNC
Gantry loader

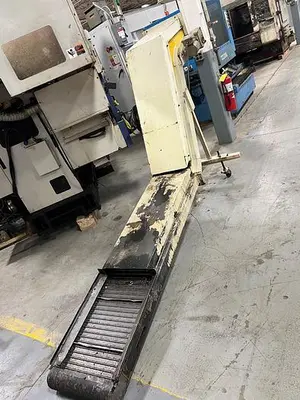

Chip conveyor
Coolant Tank
Books and Manuals
