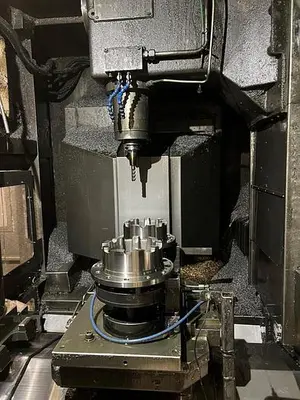

Elevate your machining prowess with the ENSHU EV-450 Vertical Machining Center, a reliable workhorse outfitted with the advanced FANUC SERIES 21i-MB Controller. Whether you're keen on precision tapping or intricate probing, this machine has you covered with its Rigid Tapping and Renishaw Probing features. The dual 20.9" x 15.7" pallets, combined with a Rotary Type Pallet Change, guarantee efficient job transitions. The Coolant Thru Spindle ensures effective cooling, while the MD Chip Conveyor efficiently manages waste. And with added bonuses like Leveling Pads, Jergens Bock Vises, and accompanying transformers and manuals, it's a holistic solution. Trust in Gizmo Machine Tools, as we've rigorously tested its performance!
Number of Travels: 3
X- Axis: 22”
Y-Axis: 18.11 ”
Z Axis: 18.1”
Number of Pallets: 2
Spindle: CAT 40
Spindle Speed Range: 40-10,000 RPM
Distance from Top of Table to Spindle: 7.9”- 26”
Distance Front of Column to Spindle Center Line: 20.1”
Feed Rate (X/Y/Z): 1,575 IPM
Rapid Traverse (X/Y/Z): 0.04-591 IPM
Acceleration (X/Y/Z-G): 0.5G
Thrust (X/Y/Z): (674/674/1100 lbs.)
Spindle Ramp Up Time: 1.6 Sec.
Automatic Tool Changer: 20
Tool change Time (Tool to Tool): 1 Sec.
Tool Change Time (Chip to Chip): 3.5 Sec.
Maximum Pallet Load: 550 lbs.
Pallet Change Time: 4.8 Sec.
Approximate Dimensions: 83”x 96” x 106”
Approximate Weight: 9,900 lbs.

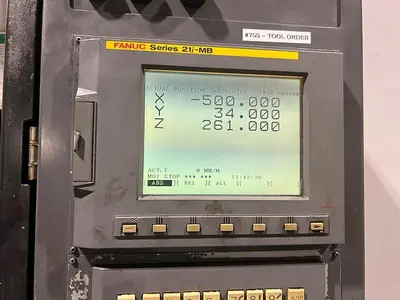

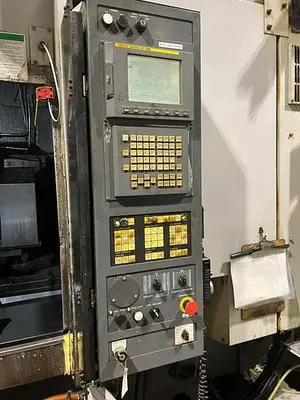

Controller FANUC SERIES 21i-MB
Renishaw Probe
Tool Offset Memory C,

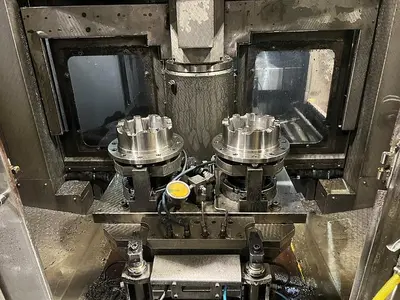

(2) 20.9" x 15.7" Pallets
Rotary Type Pallet Changer
Coolant Thru Spindle

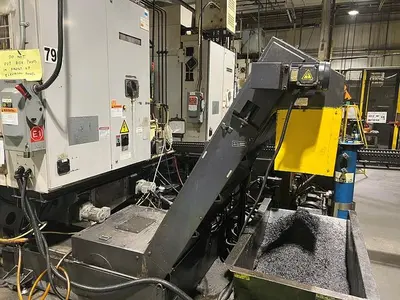

MD Chip Conveyor
Levelling Pads
Several 6" Jergens Bock Interlocking Vises
Step Down Transformer
Books and Manuals
