Used

USED 2014 CHEVALIER FCL-1028

Ontario, Canada
332Listings|14Followers
Overview
CNC Lathes

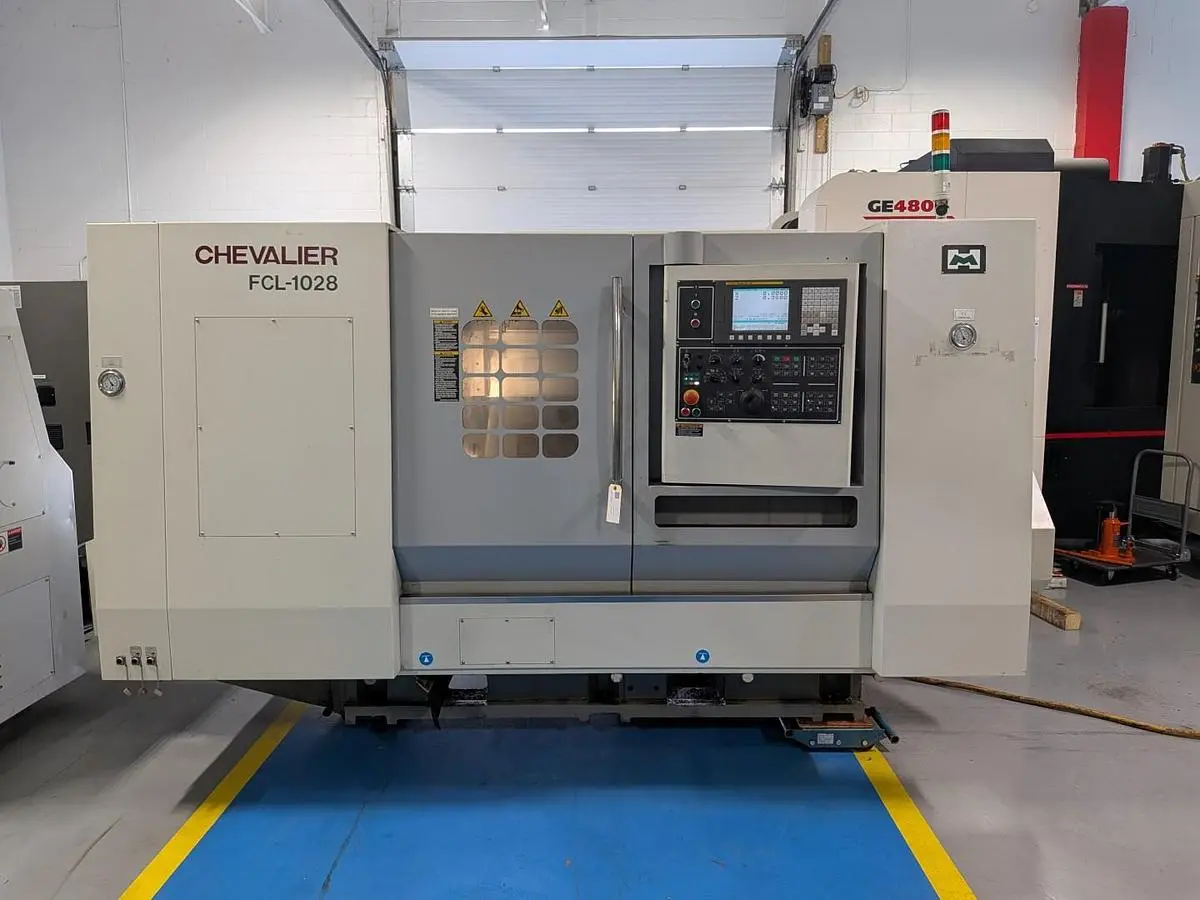

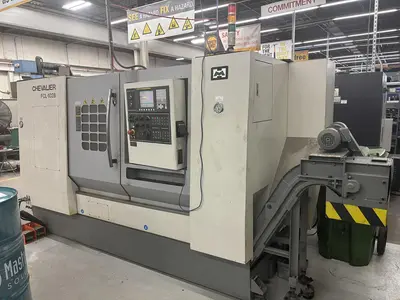

CHEVALIER FCL-1028 Turning Center (2014) with FANUC Oi-TC CNC Controller – Precision, Reliability, Performance
Enhance your machining capabilities with the CHEVALIER FCL-1028 Turning Center, manufactured in 2014 and equipped with the trusted FANUC Oi-TC CNC controller. This high-performance CNC lathe is engineered for precision turning and robust production output, making it ideal for job shops, tooling centers, and high-volume production environments.
Key Features:
Year: 2014 – reliable, well-maintained, and production-ready.
Controller: FANUC Oi-TC – user-friendly interface with industry-standard reliability and programming flexibility.
Turning Capacity: Designed to handle medium-to-large workpieces with consistent accuracy.
Construction: Rigid cast-iron bed and heavy-duty design for superior stability and vibration dampening.
Applications: Ideal for complex turning operations across automotive, aerospace, industrial, and general manufacturing sectors.
Why Choose the CHEVALIER FCL-1028?
Proven CHEVALIER engineering for durability and performance.
FANUC Oi-TC CNC system ensures efficient and precise machining.
A cost-effective solution for boosting shop productivity without compromising quality.

Specs
Swing
23.6"
599.44 mm
Machining Length
28"
711.2 mm
Chuck Size
10"
254 mm
Bar Capacity
3"
76.2 mm
Power
30 hp
22.4 kW
Max RPM
3,500 RPM
3,500 RPM

Chuck Size: 10"
X Axis: 9.44"
Z Axis: 30"
Max. Swing over bed: 23.6"
Max. Turning diameter: 17.7"
Distance B/W Centers ( IN ): 31.8"
Max. Turning length: 27.5"
Spindle Speed (RPM): 3500

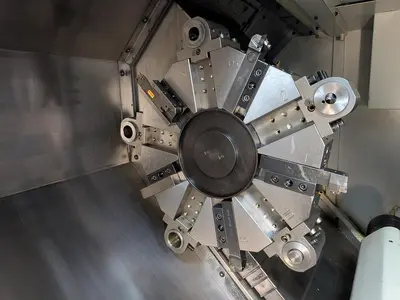

Turret: 10
Approx Weight (Lbs): 11000

Equipped With

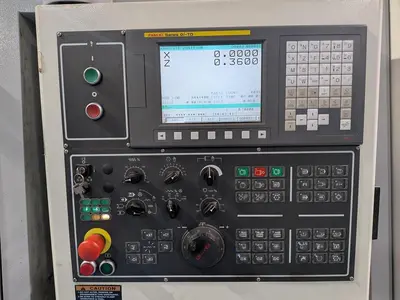

Fanuc Oi-TC CNC controller

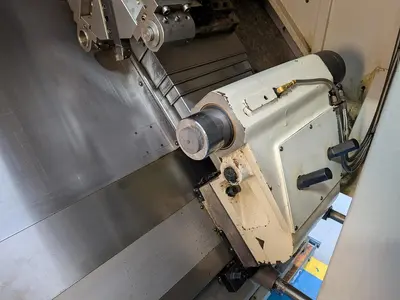

Tailstock

Coolant tank

Chip Conveyor
