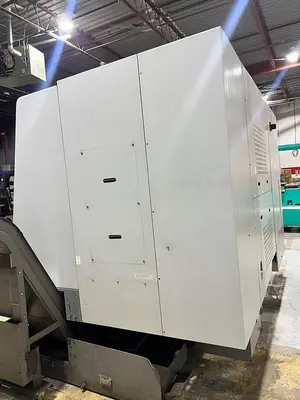

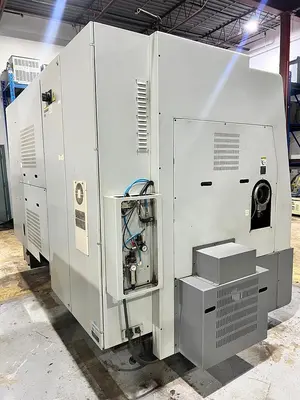

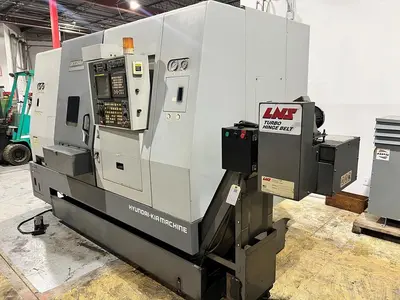

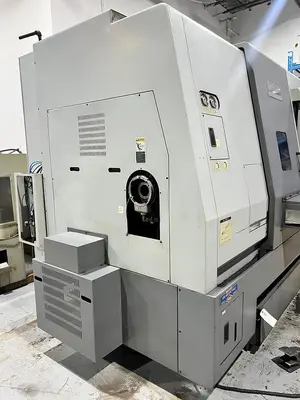

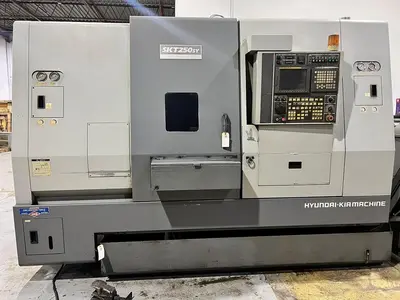

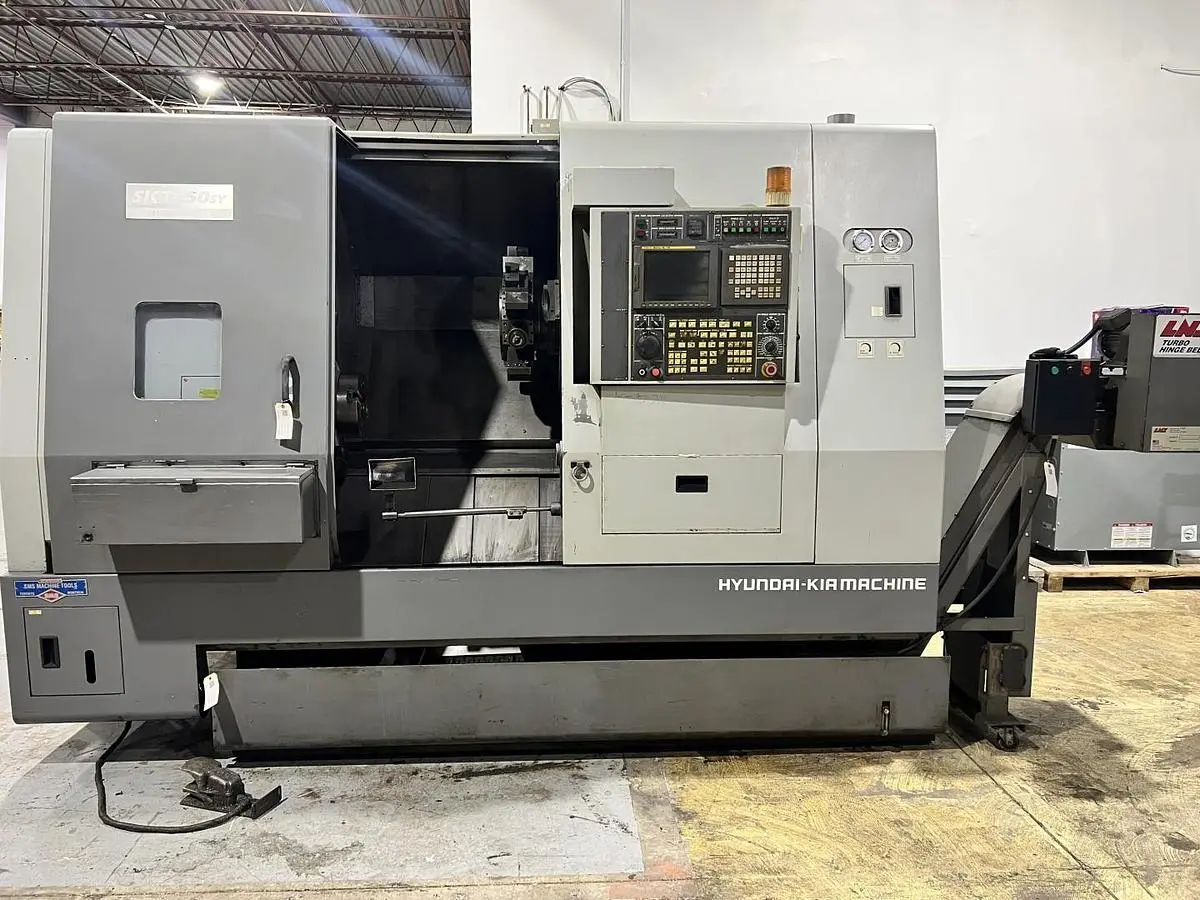

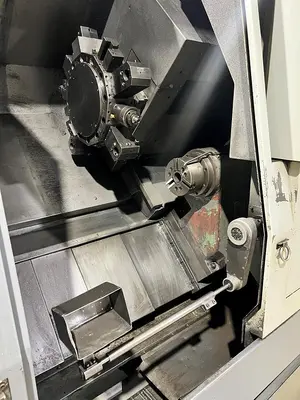

HYUNDAI KIA – SKT250SY TURNING CENTER
Overview
Description

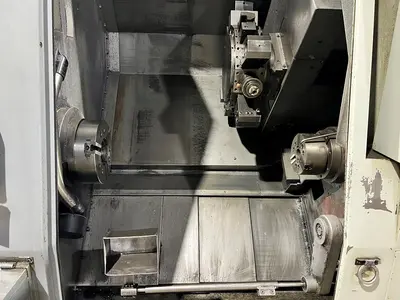

The Hyundai KIA SKT250SY is a high-performance C-axis, Y-axis CNC turning center designed for multi-tasking and precision machining. With a 410 mm max machining diameter, 700 mm machining length, and 76 mm bar capacity, this machine is built to handle complex parts in a single setup. Featuring a 3500 RPM A2-8 main spindle, 6000 RPM sub-spindle, 12-station turret with live tooling (up to 4000 RPM), and rigid box-way construction, the SKT250SY delivers excellent stability and cutting power. Fast axis feeds, 0.001° C-axis control, and strong turret clamping make it ideal for production of high-accuracy components.
Includes chip conveyor, manuals, parts catcher, and a set of live tools (2 radial + 2 axial).
Specifications
Standard Chuck Size: 254 mm
Max Swing: 620 mm
Max Machining Diameter: 410 mm
Max Machining Length: 700 mm
Cylindrical Rod Machining Capacity: 76 mm
Feed Length (X/Z/B/Y): 230 / 675 / 700 / 110 (+55) mm
Quick Feed Speed (X/Z/B/Y): 20 / 24 / 20 / 10 m/min
Guide Structure: Box Type
Main Spindle Speed: 3500 RPM
Main Spindle Nose: A2-8
Through Hole Diameter: 95 mm
Max Spindle Torque: 24 kgf/m
Drive Type: Belt
C-Axis Split Capacity: 0.001°
Sub-Spindle Chuck Size: 152.4 mm
Sub-Spindle Max RPM: 6000 RPM
Sub-Spindle Motor Power: 5.5 / 7.5 kW

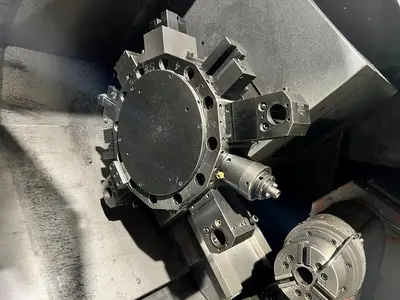

Tools Attached: 12
Tool Size OD/ID: 25 / 40 mm
Turret Clamp Force: 4120 kgf
Max RPM (Live Tooling): 4000 RPM
Cutting Capability (E/M, DR): 20 mm
Tapping Capacity: 16 mm
Equipped With

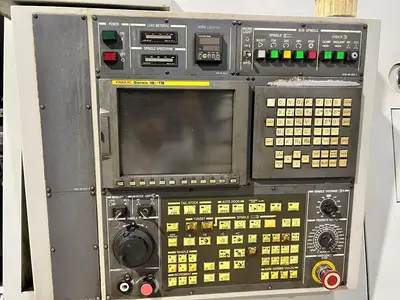

Fanuc 18i-TB CNC controller

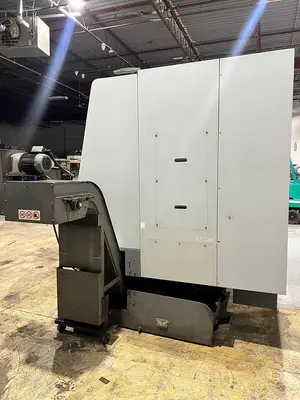

Chip Conveyor
Manuals

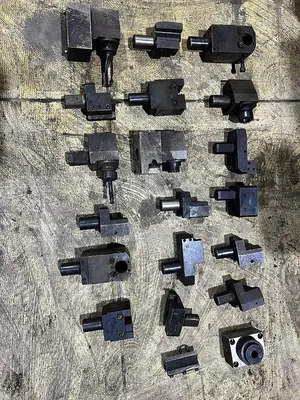

Misc static tool holders

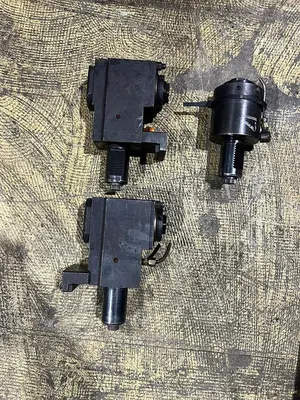

2 Raidal Live tools
2 Axial Live tools

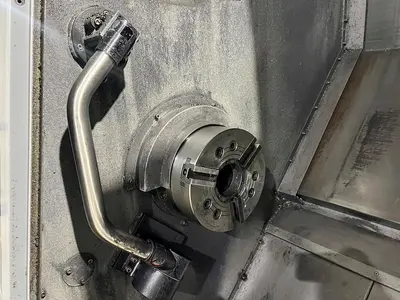

Parts Catcher
