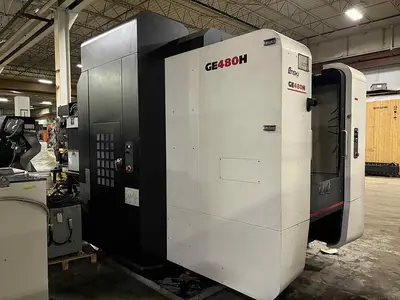

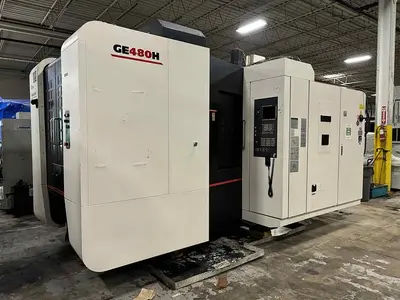

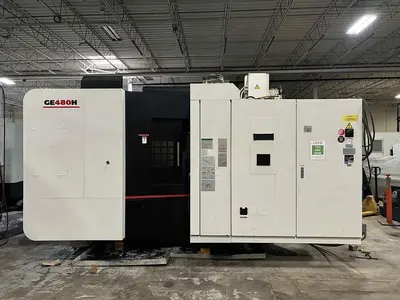

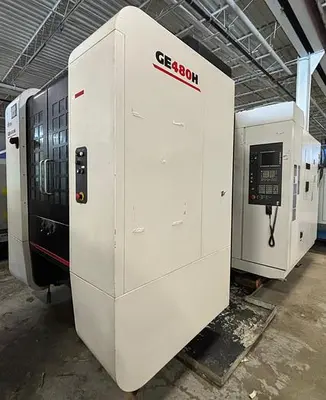

USED 2019 ENSHU LTD. GE 480H
Overview
2019 ENSHU GE 480H Horizontal Machining Center offers high-speed precision with a 20,000 RPM HSK63A spindle and is equipped with Fanuc Series 31i Model B Control. Key features include a Coolant Through-Spindle at 100 psi, a Full Rotary Bi-Directional B Axis, and a powerful 74 HP Fanuc Spindle Drive. The machine boasts a Rotary Automatic Pallet Changer, Chip Blaster, and a high-volume rolling filter chip conveyor with a magnetic separator for superior chip management.Other advanced capabilities include Linear Guides (Cross Roller), Helical Interpolation, Spindle Air Curtain, and a Spindle Oil Chiller to maintain performance and accuracy. The refrigerated and temperature-controlled spindle, ball screws, and motor mounts ensure precision even during long operations. Additionally, it features Flood Coolant, Ceiling Shower Coolant, and an impressive 2MB Program Memory with Tool Offset Memory Type C and Custom Macro B functionality. Ideal for high-performance machining environments.
Specs
Axis: 4
X Axis: 31.5”
Y Axis: 31.5”
Z Axis: 31.5”

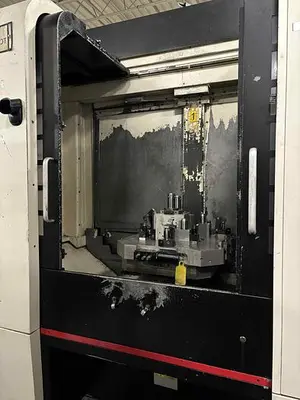

Pallet Size: 19.7 x19.7 INCHES
DISTANCE PALLET TOP TO SPINDLE CENTERLINE (Y): 2.75/34.2 INCHES
DISTANCE PALLET CENTERLINE TO SPINDLE FACE (Z): 5.9/37.4 INCHES
Rapid Traverse (x/y/z): 3543 IPM
Max. Programmable Feedrate: 3543 IPM
Feed Motors: 7.4 HP

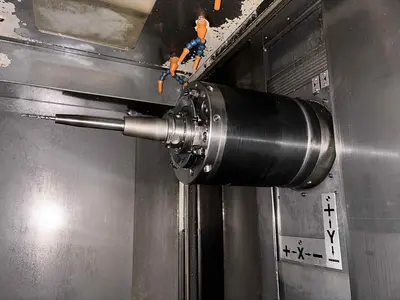

Spindle Power/Type: 30 HP/ Integral
Max spindle speed: 20000 RPM
Spindle Taper: HSK-A63

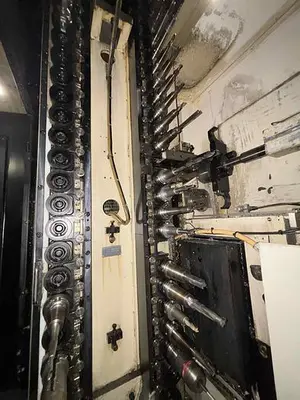

ATC MAGAZINE: 60
Pallet Load Capacity Per Side: 1100 lbs
Power Requirement: 60 KVA
Max Workpiece Weight (lbs): 1,100
Number of pallets: 2
PALLET CHANGE TIME: 7 S
Max Tool Weight: 17.6 lbs
CHIP TO CHIP TIME: 3.2 s
Pallet Clamp force: 57.6 Kn
Rigid Tapping Max RPM: 4000
TOOL CHANGE TIME: 1.2 S
Approximate Machine Dimensions L x W x H: 190 x 110 x 117 INCHES
Equipped With

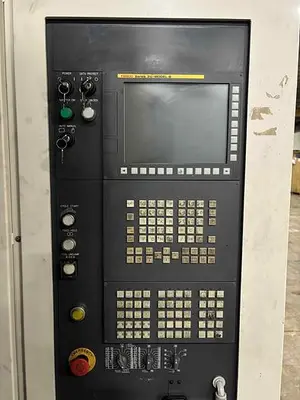

Fanuc Series 31i Model B, Coolant though-spindle,

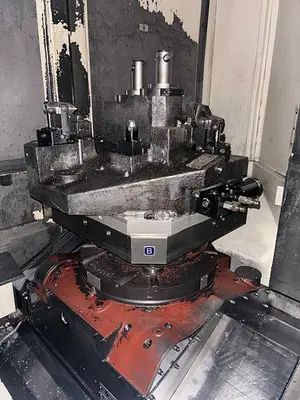

Full Rotary Bi-Directional B Axis FANUC 74
HP Spindle Drive
Rotary automatic pallet changer
Chip Blaster 1200mm high

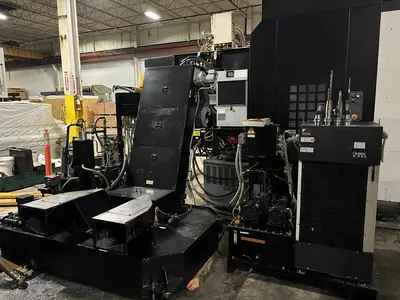

Rear discharge rolling filter chip conveyor with magnetic separator
High-volume rolling filter chip conveyor, Linear Guides (Cross roller)
Through spindle coolant 100 psi
Ceiling shower coolant
Refrigerated and temperature-controlled spindle,
Ball screws and motor mounts
Helical interpolation
Spindle air curtain
Spindle oil chiller
Flood coolant
2 MB Total program memory
Tool offset memory type C
Custom Macro B
