16000 LB RANSOME "160" VARIABLE-SPEED WELDING POSITIONER - Updated Motors & Pendant Control
Variable Speed Rotation - Power Tilt - Fixed Base
| Max Weight Capacity | 16,000 lb | 7,257.5 kg |
| Dimensions | 108" x 78" x 60" | 108" x 78" x 60" |

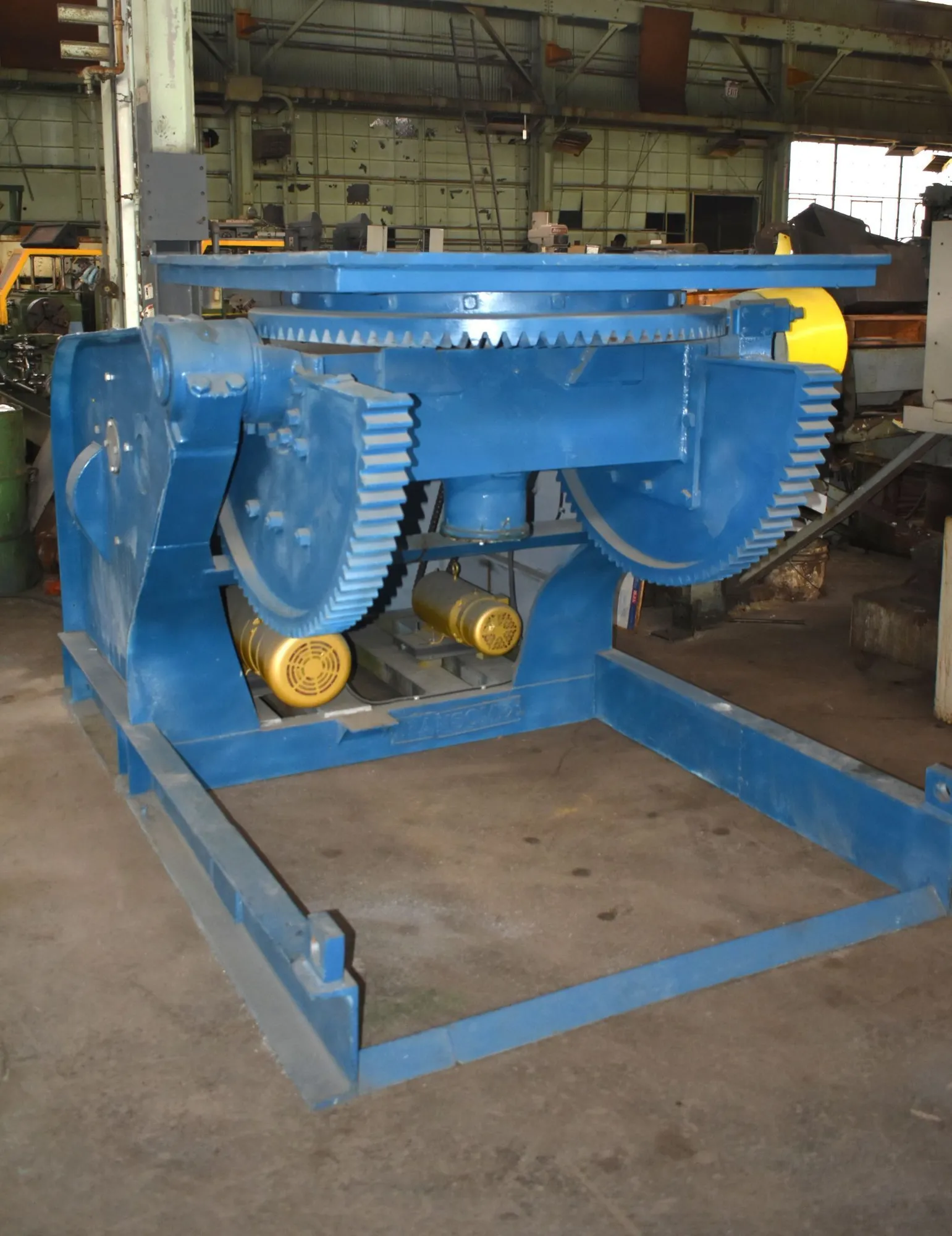

16000 LB RANSOME VARIABLE-SPEED WELDING POSITIONER
Serial No 6986. Model 160
EQUIPPED WITH:
Updated Motors, Pendant Control & Electrics
53" x 53" T-Slotted Table
Variable Speed Power Rotation
Power Tilt - Fixed Base
CATALOG SPECIFICATIONS:
Table Dimensions, L x W 53" x 53"
Table Weight at 12" Eccentricity 16,000 LBS.
Table Rotation, Degrees 360 DEGREES
Table Tilt, Degrees 135 DEGREES
Table Height 60"
Overall Dimensions, L-R x F-B 78" x 108"
NOTE: The Motors, Pendant Control, And Electrics Have Been Updated
On This Machine.
F.O.B. OUR WAREHOUSE
