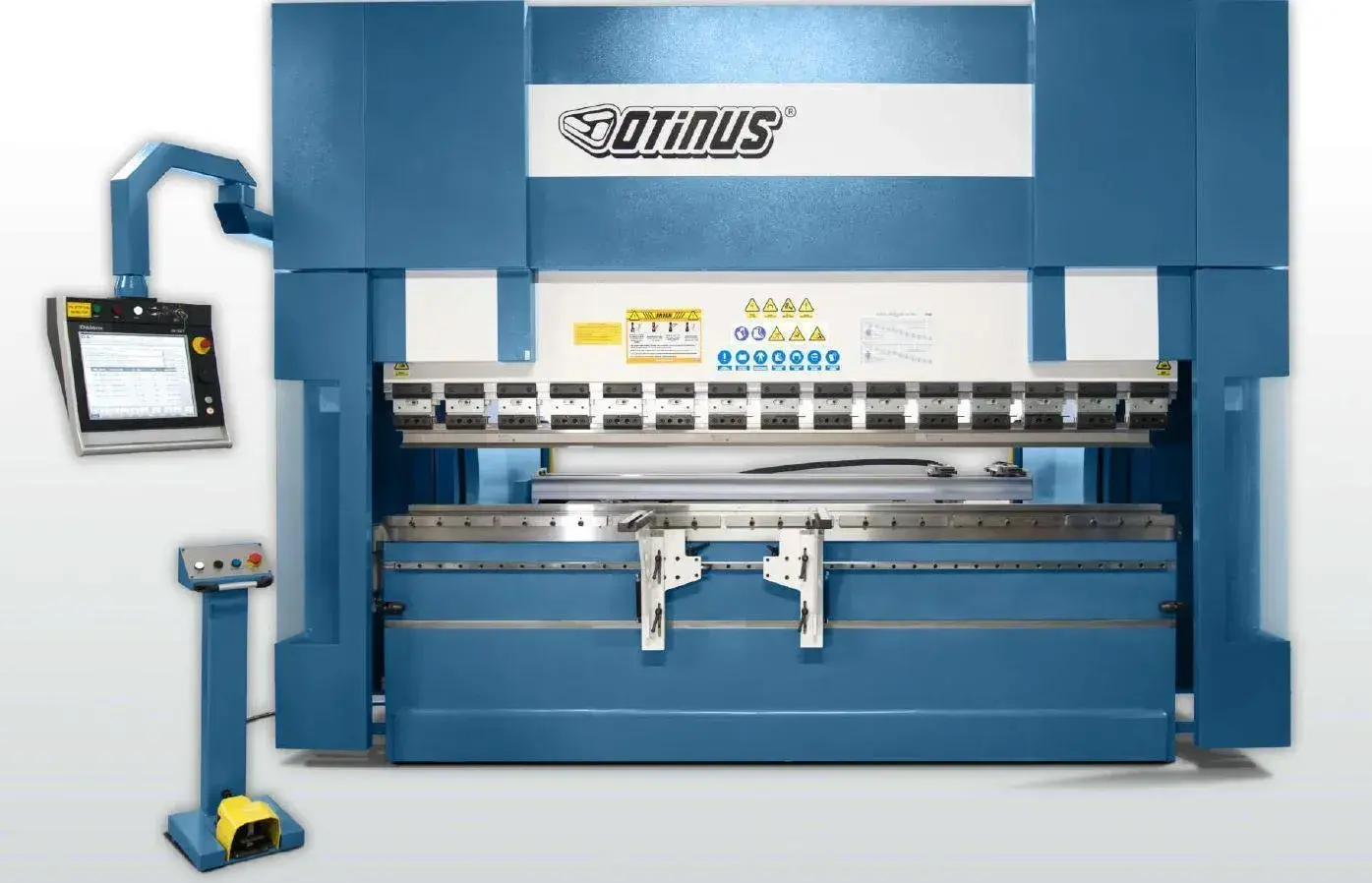

NEW OTINUS HYDRAULIC PRESS BRAKE 176t X 122" DELEM 66 T
Overview
OTINUS HYDRAULIC PRESS BRAKE 176 T X 122" w/ DELEM DA-66T control
Price includes
2-day training including machine installation
1st day up to 8 hours - machine installation and learning how to use the controller.
2nd day up to 8 hours - independent work on the machine under the supervision of our technician - possibility of
programming specific parts that are made by the Client.
Telephone consultation with a specialist from 7.30 to 21.00 (Mon-Sat) – 8 hour time package to be used within 12 months
Terms of cooperation
24 month warranty.
The machine is brand new.
Warranty and after-sales warranty service
The Client is responsible for the machine during unloading and transport on-site.
Specs
Tonnage: 176 Ton (approx. 1600 kN)
Bending Length: 122 inches (3100 mm)
Control: Delem DA66T CNC
Stroke: ~7 - 10 inches (180-250 mm)
160 mm/s
Working 10 mm/s
Return 130 mm/s
Approx. Weight 21,388 Lbs
Inside Frames 100"
Bending Length [A] 122"
Distance between side frames [B] 9'
Side Frame Width [C] 63"
Bed Height [G] 35"
Daylight Opening [K] 21"
Stroke [L] 10"
Table Width [M] 2"
Throat Gap [N] 16
Dimensions: ~130" L x 65" W x 98" H (approximate)
Delem DA-69T controller
2D and 3D graphical touch programming module
3D visualization for simulation and processing
17" colour TFT screen of high resolution
Full Windows operating system
Compatibility with the Modusys Delem system (modular scalability and adaptability)
External USB port
Detailed user support in a multitasking environment
Bending using the sensors in parameter adjustment menu
Profile-T3D offline software
Equipped With
Hydraulic cylinders (Y1/Y2 independent control)
Automatic crowning for deflection compensation
Segmented lower die & die holder
Amada-style upper tool clamps
Price includes
2-day training including machine installation
1st day up to 8 hours - machine installation and learning how to use the controller.
2nd day up to 8 hours - independent work on the machine under the supervision of our technician - possibility of
programming specific parts that are made by the Client.
Telephone consultation with a specialist from 7.30 to 21.00 (Mon-Sat) – 8 hour time package to be used within 12 months
Terms of cooperation
24 month warranty.
The machine is brand new.
Warranty and after-sales warranty service
The Client is responsible for the machine during unloading and transport on-site.
