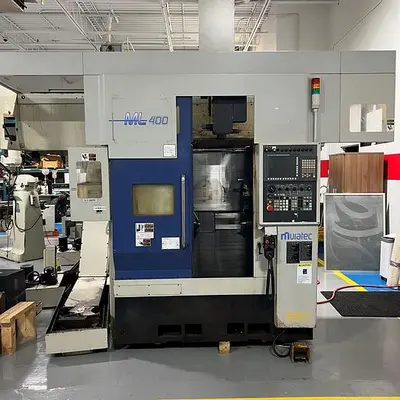

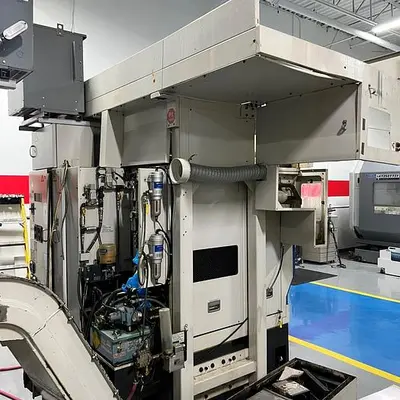

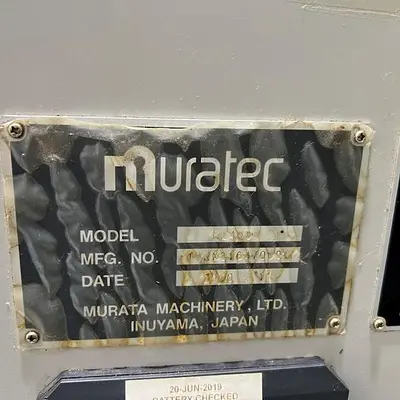

USED 2010 MURATEC ML-400

Ontario, Canada
332Listings|14Followers
Overview
CNC Lathes

Boost your productivity with the Muratec Turning Center, a state-of-the-art machine offering a host of essential features for streamlined operations. Equipped with a Fanuc Gantry Loader for effortless material handling, this turning center is designed for maximum efficiency. Additional features like a tail stock, collet chuck, and chip conveyor make it a comprehensive solution for all your turning needs. To keep your operations smooth, it also comes with a coolant tank and all available manuals for easy reference. Every unit undergoes a stringent inspection by Gizmo Machine Tools INC to ensure it meets industry-leading quality standards. Trust in Muratec's world-class engineering and Gizmo's commitment to quality for a turning center that delivers both reliability and performance.

Specs

Max Swing: 340 MM
Standard Chuck Size: 165 MM
Max Cutting Diameter: 200 MM
Max Workpiece Length: 390 MM

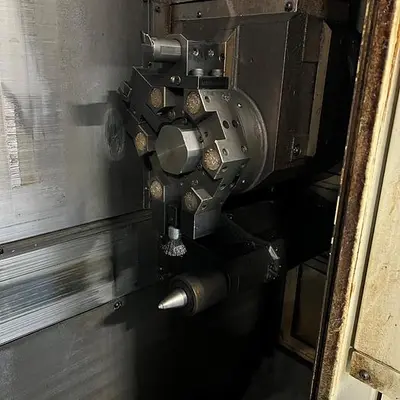

Turret Stations: 6
Spindle Speed: 3000 RPM
X Axis Stroke: 130 MM
Z Axis Stroke: 430 MM
Quill Axis: 300 MM
Rapid Traverse X Axis: 20 M/MIN
Rapid Traverse Z Axis: 32 M/MIN
Rapid Quill Axis: 16 M/MIN
Max Diameter of Boring Bar: 32 MM
Main Machine Floor Space: 1700 MM x 1650 MM
Approx Weight with loader: 4400 KGS

Equipped With

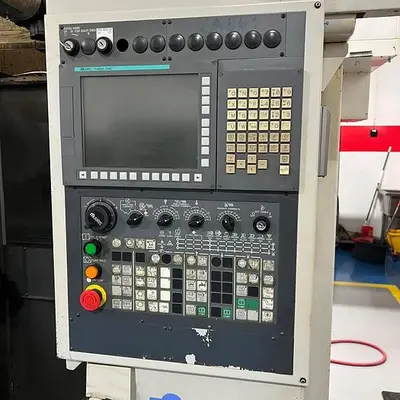

Muratec Fanuc CNC FS-32i

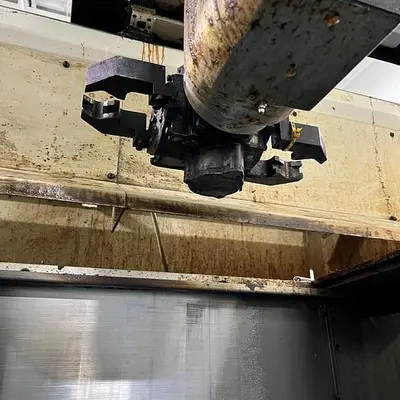

Fanuc Gantry Loader

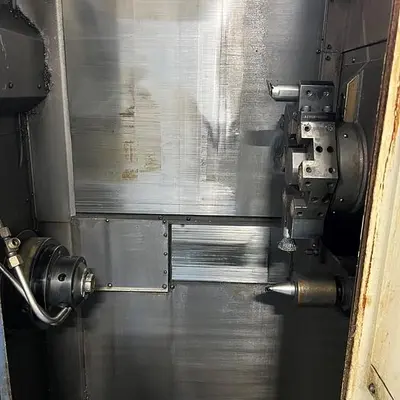

Tail Stock

Collet Chuck

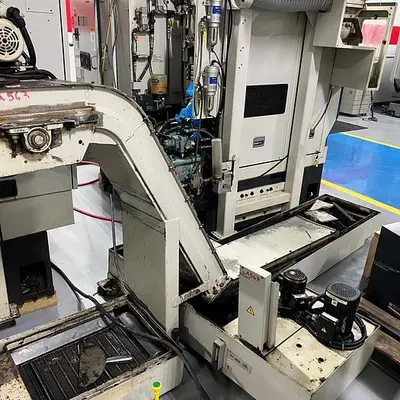

Chip Conveyor

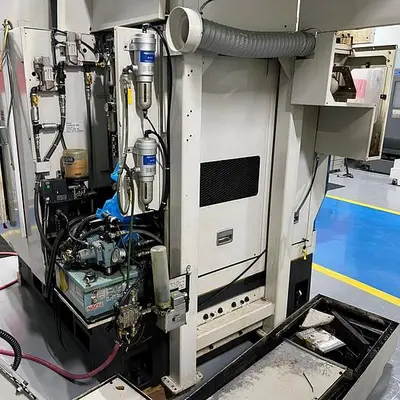

Coolant tank

All Manuals Available
