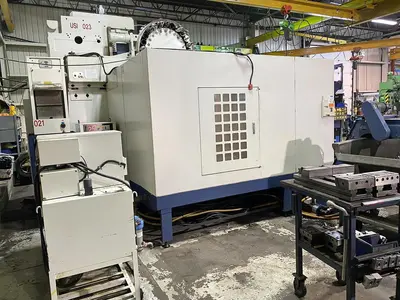

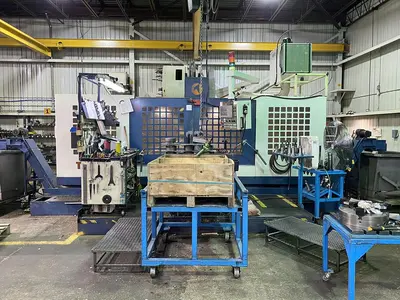

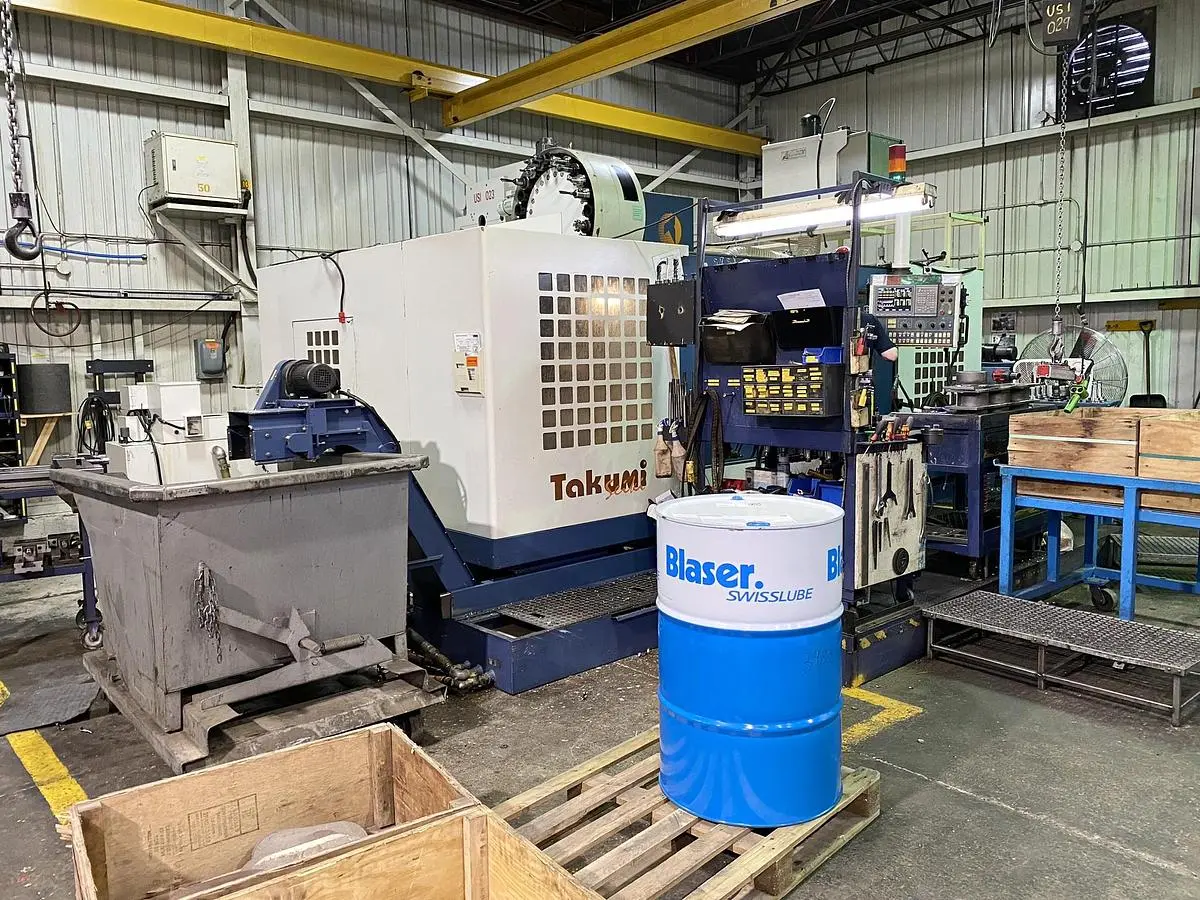

USED 2005 TAKUMI V22
Overview
Upgrade your machining capabilities with the Takumi V22, a heavy-duty Taiwan-built vertical machining center engineered for precision, stability, and high-productivity milling. Known for its rigid construction and powerful cutting performance, the V22 is ideal for mold making, die work, aerospace components, and general high-tolerance machining.

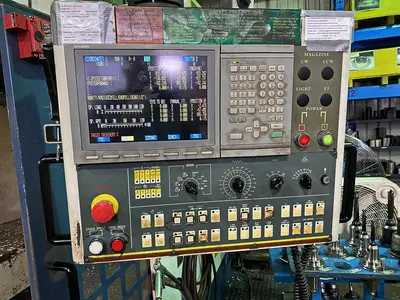

This model features a large 2200 × 1025 mm table, a robust ISO 50 spindle, and a dependable Mitsubishi CNC control, offering fast processing, accurate motion control, and excellent reliability. Equipped with a 24-tool arm-type ATC, 6000 RPM geared spindle, and 12 m/min rapid traverse, the V22 delivers consistent performance in demanding applications.
Takumi’s proven box-way design ensures maximum rigidity and vibration dampening, making the V22 an excellent solution for heavy cuts, long cycle times, and precision surface finishing. With a large working envelope and 3000 kg table capacity, this machine handles oversized workpieces with ease.
Specs
X-Axis Travel: 2200 mm
Y-Axis Travel: 1020 mm
Z-Axis Travel: 750 mm
Distance Spindle Nose to Table: 200 – 950 mm
Distance Spindle Center to Column: 1120 mm

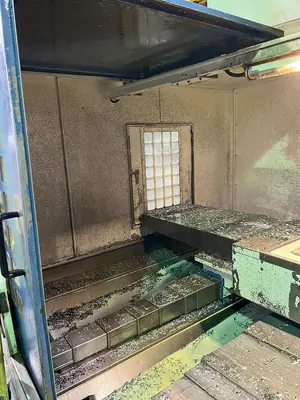

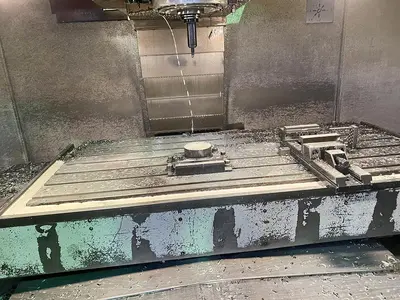

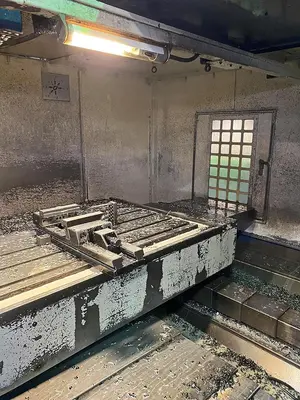

Table Size: 2200 × 1025 mm
Table Load Capacity: 3000 kg
T‑Slot Size: 22 mm × 7
Spindle Speed: 6000 RPM (Gear)
Spindle Motor: 26 HP
Spindle Taper: ISO 50
ATC Magazine Capacity: 24T Arm Type
Max Tool Diameter (Adjacent Empty): 200 mm
Max Tool Diameter (Adjacent Installed): 110 mm
Max Tool Length: 300 mm
Max Tool Weight: 15 kg
Rapid Feedrate (X/Y/Z): 12 / 12 / 12 m/min
Cutting Feed Rate: 5000 mm/min
Machine Weight: 19,700 kg
Equipped With

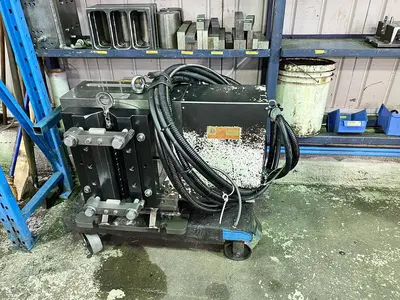

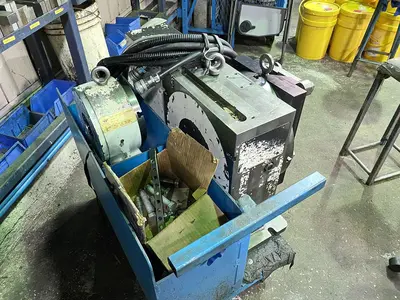

Full 4th Axis

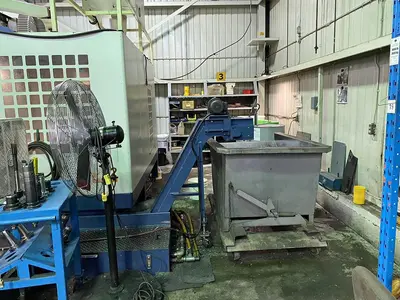

Chip Conveyor
Coolant Tank

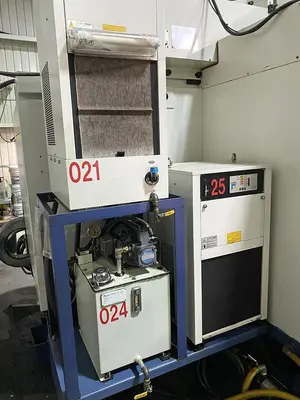

Chiller
