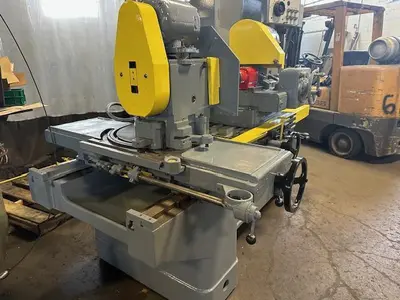

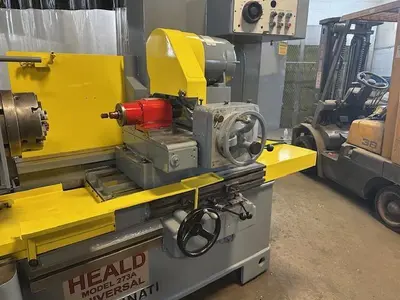

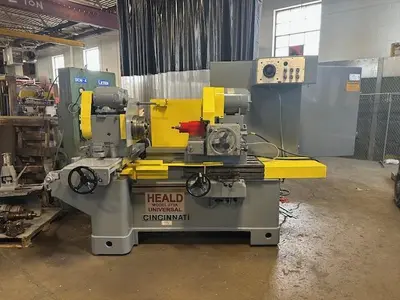

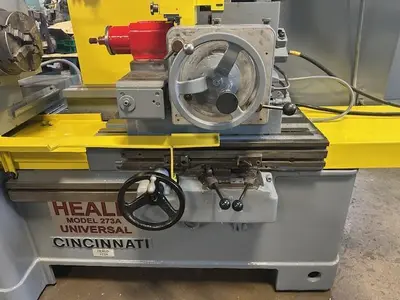

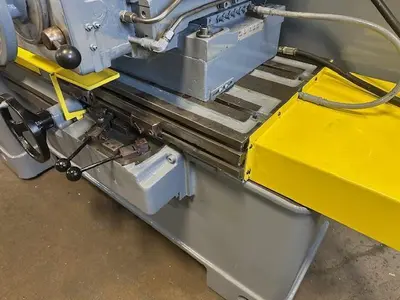

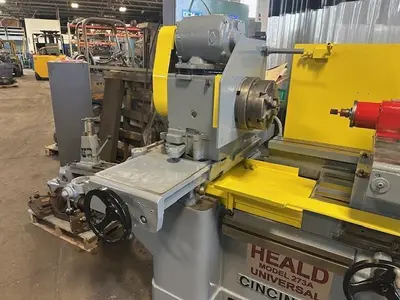

HEALD MODEL 273A UNIVERSAL INTERNAL GRINDER

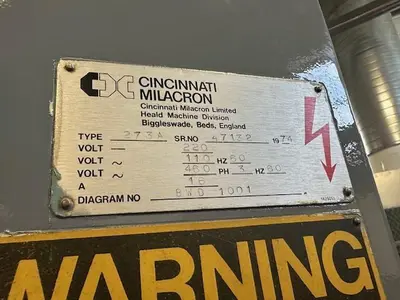

Serial No. 47132
SPECIFICATIONS:
Swing over Table: 28”
Angular adjustment of Workhead: 90 Degrees
Workhead Cross Slide Travel: 11 1/2″
Table Travel: 20″ Max.
Wheelhead Cross Slide Travel: 1 1/2″
Table Speed Range: 0 to 18 FPM
Rapid Traverse of Table: 18 FPM

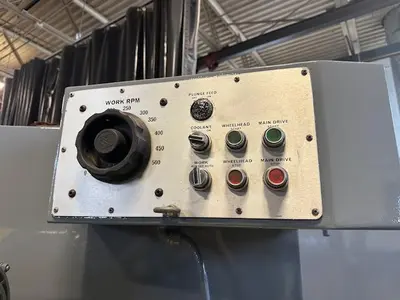

Workhead Speeds from 0 to 500 RPM, Variable
EQUIPPED WITH:
(1) 12" Magnetic Chuck & Adapter Plate

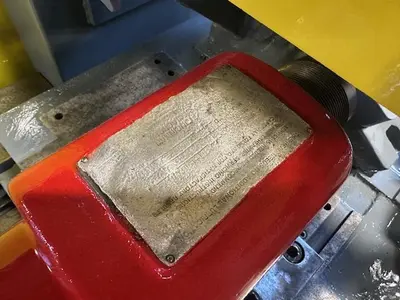

(1) 11,000 RPM Heavy Duty Red Head Spindle
(1) 7" Flat Belt Pulley
(1) 6" Flat Belt Pulley
Table mounted dresser
4” risers
12″ Extended base
Workhead Sine bar
Hydrostatic Ways

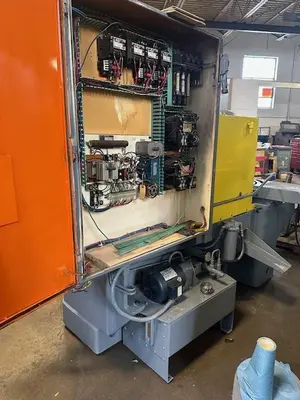

Electrical Motors & Controls 220/3/60
Dimensions: FB X RL – 62″ X 92″
Height: 77″
Est. Weight: 7,000 lbs
