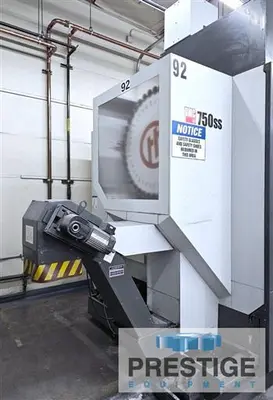

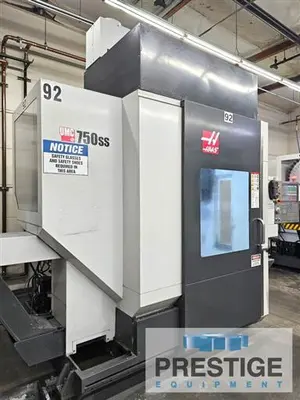

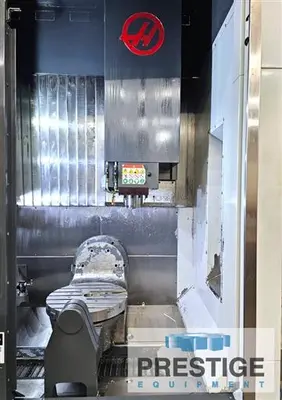

USED 2017 HAAS UMC-750SS 5-AXIS

SPECIFICATIONS:
X-Axis Travel: 30"
Y-Axis Travel: 20"
Z-Axis Travel: 20"
Max. Part Swing: 27"

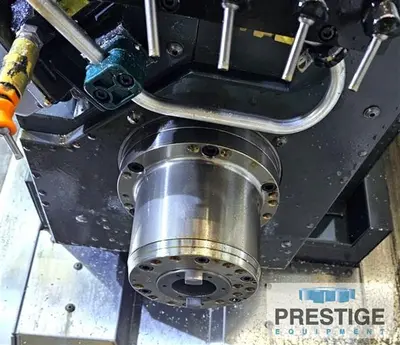

SPINDLE:
Spindle Motor: 30 HP
Spindle Speeds: To 15,000 RPM
Spindle Taper: CAT 40
Spindle Nose to Table: 4"-24"

TABLE:
B-Axis Tilt/Travel: +120/-35 Degrees
C-Axis Rotation: 360 Degrees
Table Diameter: 19.7"
Table Work Weight Capacity: 660 Lbs.

Equipped With:
Haas CNC Control With 1 GB Memory Expansion
RJH-C - Remote Jog Handle with Color LCD
Ethernet Interface
Haas Connect Option

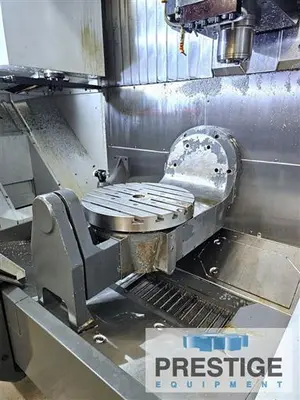

2-Axis Programmable Trunnion Table

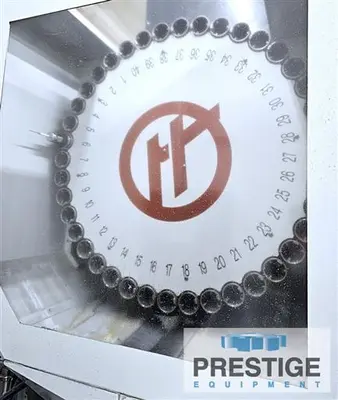

40-Position Automatic Tool Changer
15,000 RPM Spindle
High Speed Machining VPS Editing
HOME - Second Home Position
Media Display - Media Display M-Code
WIPS-R-EC Renishaw Intuitive Probing

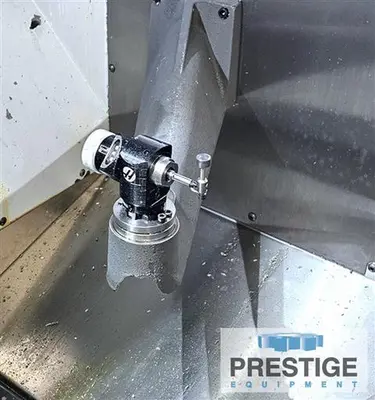

Renishaw OTS Touch-Off Probe
Macros
UMC-750SS - VMC UMC Medium
Rotation and Scaling
RTAP-3 Rigid Tapping
DWO-Dynamic Work Offsets & TCPC-Tool Center Point Control
M19 Spindle Orientation
Compensation Tables
Programmable Coolant Nozzle

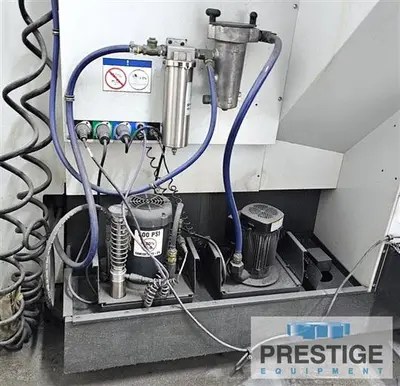

300 PSI Thru Spindle Coolant
EC-E4 Belt-Type Chip Conveyor

NOTE:
This Machine Came Out of a West Coast Semiconductor Facility and is Located in Los Angeles, CA

Features:

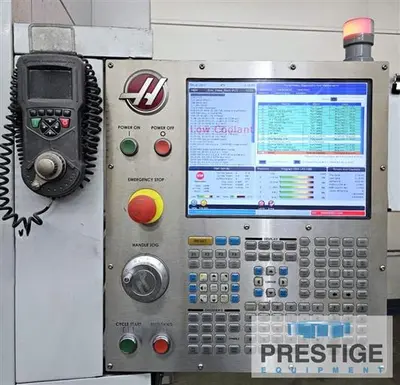

Haas CNC Control With Digital Hand Wheel

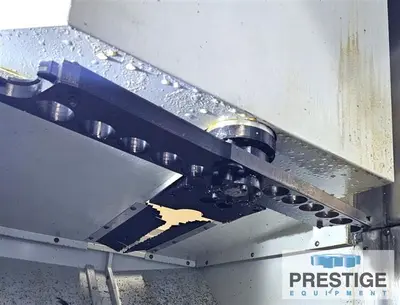

2-Axis Trunnion Table
40-Position ATC
15,000 RPM Spindle
High Speed Machining
Thru Spindle Coolant
Rigid Tapping

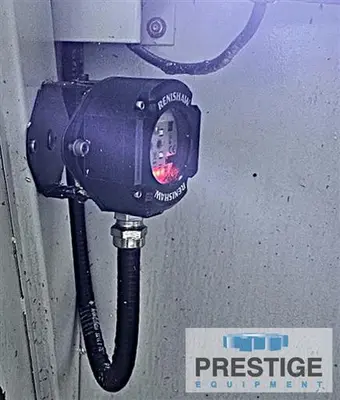

Renishaw Wireless System
Renishaw OTS Touch-Off Probe
Macros
Rotation and Scaling
DWO -Dynamic Work Offsets
TCPC - Tool Center Point Control
M19 Spindle Orientation
High Speed Machining, VPS Editing
Compensation Tables
Chip Conveyor
Coolant
