| Dimensions | 12′ x 4′ 6″ x 6′ 2″ | 12′ x 4′ 6″ x 6′ 2″ |

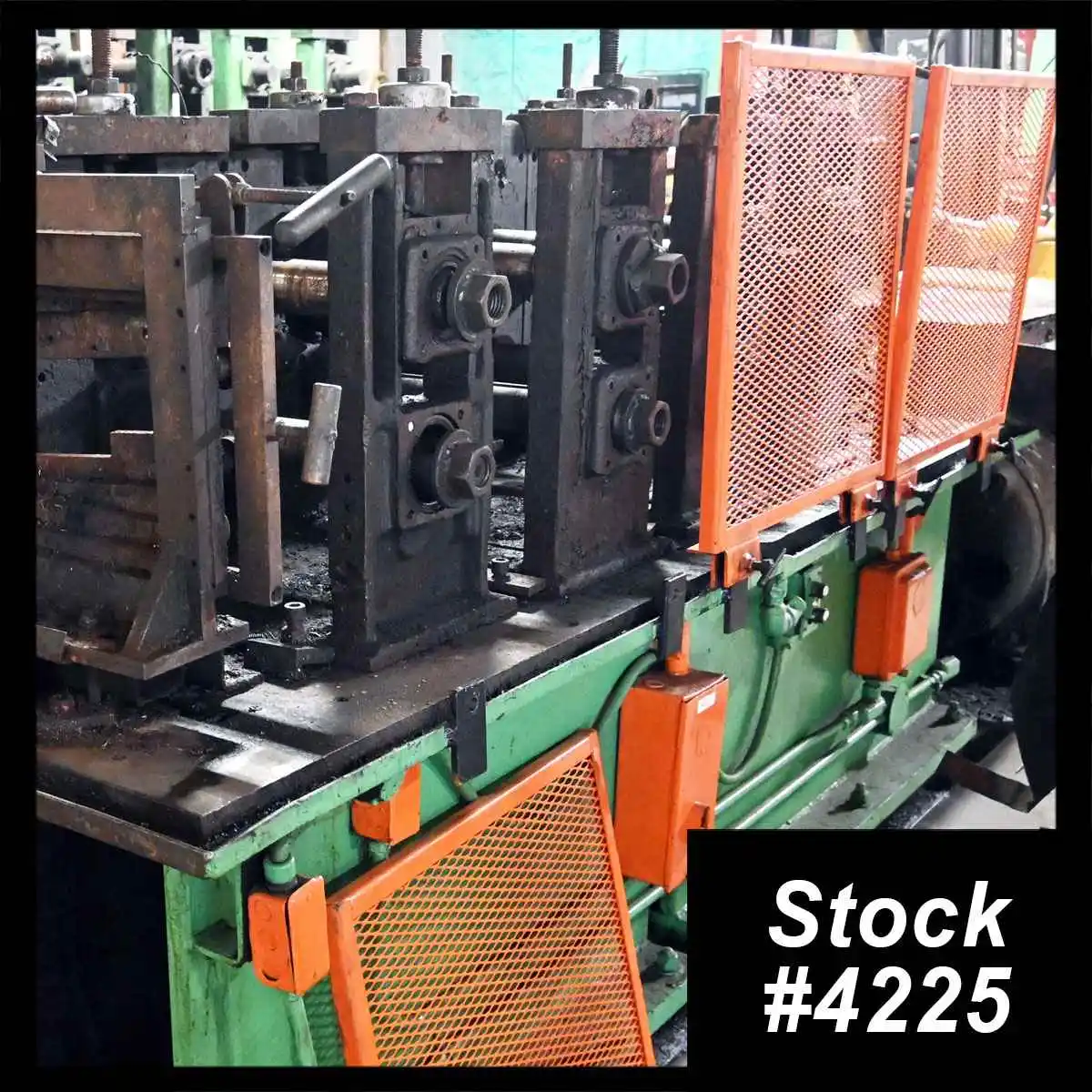

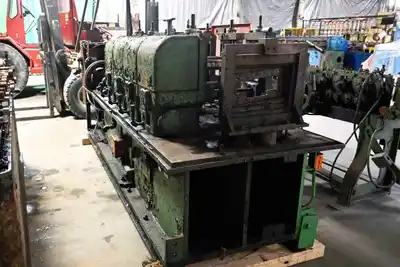

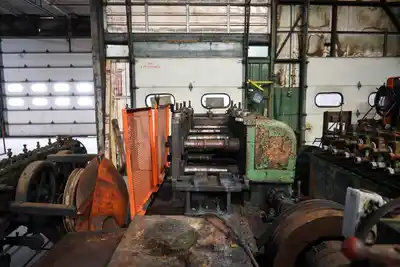

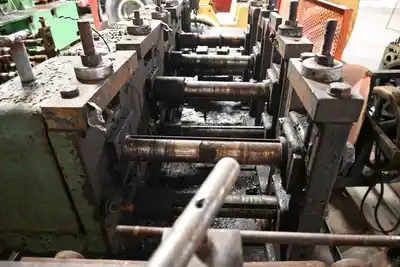

SPECIFICATIONS:
Number of Stands: 4
Line Direction: Right – Left
Spindle Diameter: 2-1/2″
Roll Space: 15-1/2″
Horizontal Center: 15″
Vertical Adjustment: 5-1/2″ – 8″
Base Top to Center Lower Spindles: 8″
Spindle Key Size: 5/8″
Gearing Ratio: 9.25 – 1 Equal
EQUIPPED WITH:
25 HP Motor, 220-440, 3 PH
Entry Guide
Forward & Reverse Control
OVERALL DIMENSIONS: 12′ x 4′ 6″ x 6′ 2″
APPROXIMATE WEIGHT:
LOCATION: Universal Warehouse, Perrysburg, Ohio
EQUIPPED WITH: 25 HP Motor, 220-440, 3 PH Entry Guide Forward & Reverse Control
