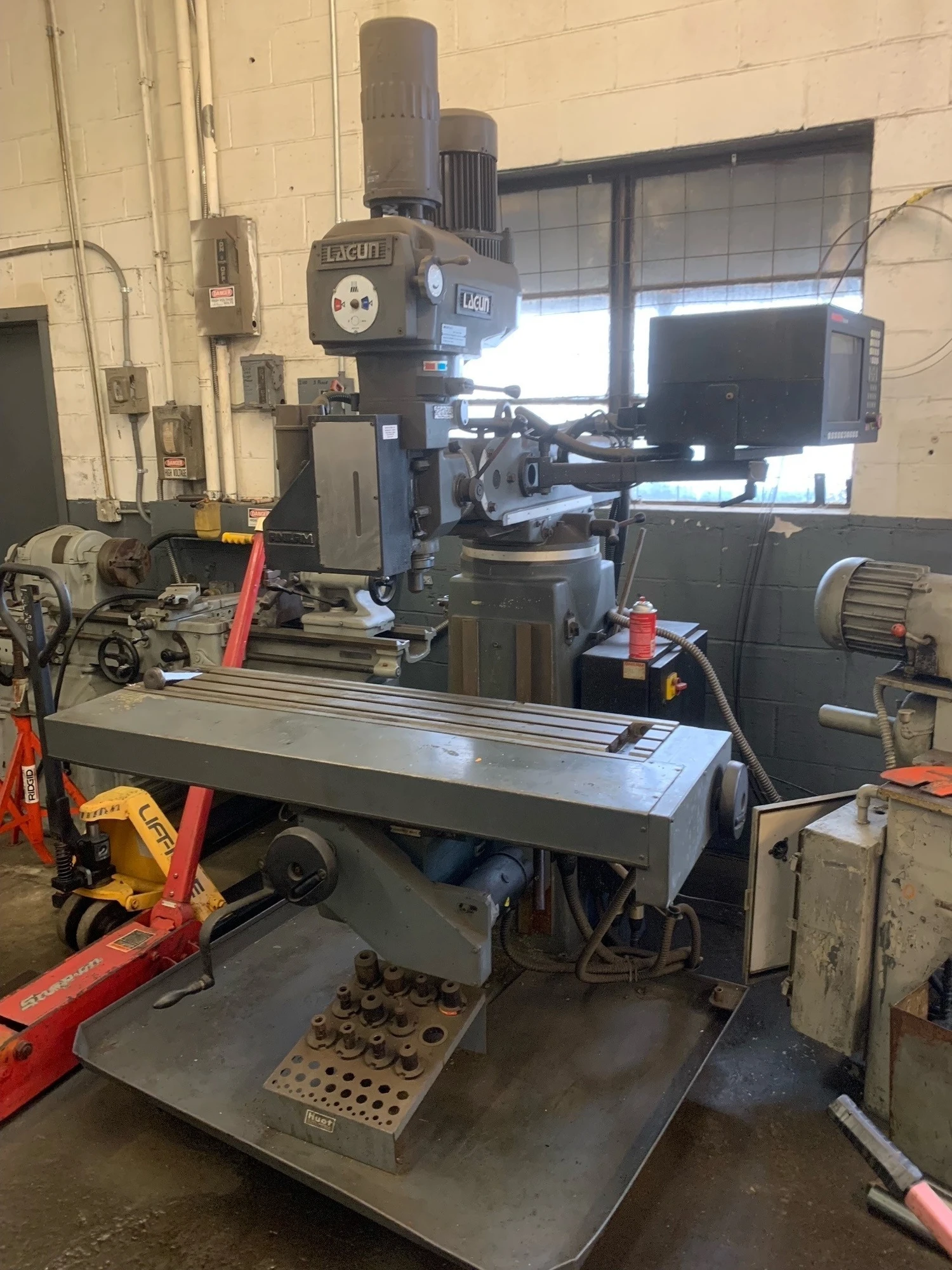

Republic Lagun Millmatic III 3-Axis CNC Knee Mill - Anilam 3300MK, Power Drive, 5 HP Motor.
| Table-W | 10" | 254 mm |
| Table-L | 50" | 1,270 mm |
| Travel-Long | 26.25" | 666.75 mm |
| Travel-Cross | 15.5" | 393.7 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,250 RPM | 4,250 RPM |
| Taper | R-8 | R-8 |
| Dimensions | 67" x 63" x 108" | 67" x 63" x 108" |
| Weight | 2,850 LBS | 2,850 LBS |
Table Size...................55.25" x 10"
Weight Capacity..............750 LBS
X-Axis Travel................36"
Y-Axis Travel................15.25"
Z-Axis Travel................16"
Ram Travel...................22"
Spindle Motor................5 HP
Spindle Speed................4,250 RPM
Spindle Taper................R8
Quill Diameter...............3.38
Quill Travel.................5"
Dimensions...................67" x 63" x 108"
Machine Weight...............2,850 LBS
Anilam 3300MK CNC Control
Power Draw Bar
5 HP spindle drive
Flood coolant system
Table and saddle locks
All high precision ball screws X, Y, and Z axis
11 1/2 (292 mm) wide knee
R8 spindle taper
23″ (584 mm) saddle
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
