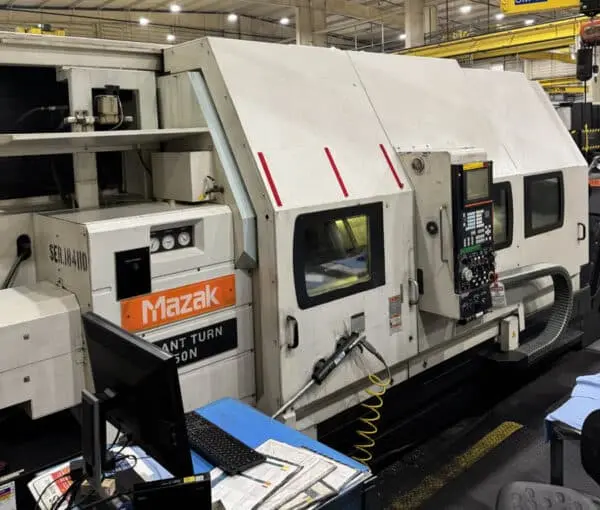

MAZAK SLANT TURN 50N – 2006

MAZAK Slant Turn 50N CNC Lathe (2006)

# Axis: 2

Chuck Size: 18″

Tailstock: Yes

Turning Diameter: 28″

Center Distance: 80″

Spindle Bore: 4″

X Axis Travel: 22.6″

Z Axis Travel: 80″

Rapid Traverse (X/Z): 473/552 IPM

Spindle Speed (RPM): 750 RPM

Main Motor: 50 HP

Mazatrol 640T CNC Control

Chuck Size 18″

Coordinate Rotation and Scaling

Helical Interpolation

Macros

EIA/ISO Code Input Function

Thread Start Point Compensation

Direct DWG Size Input

600 Macro Variables

User Macro Interrupt

Work Coordinates Select

Polar Coordinates Input

EIA Helical Tap

Re-Thread

Pitch Error Comp.

Chip Conveyor

Tailstock: yes

Steady Rest Capacity 10″
