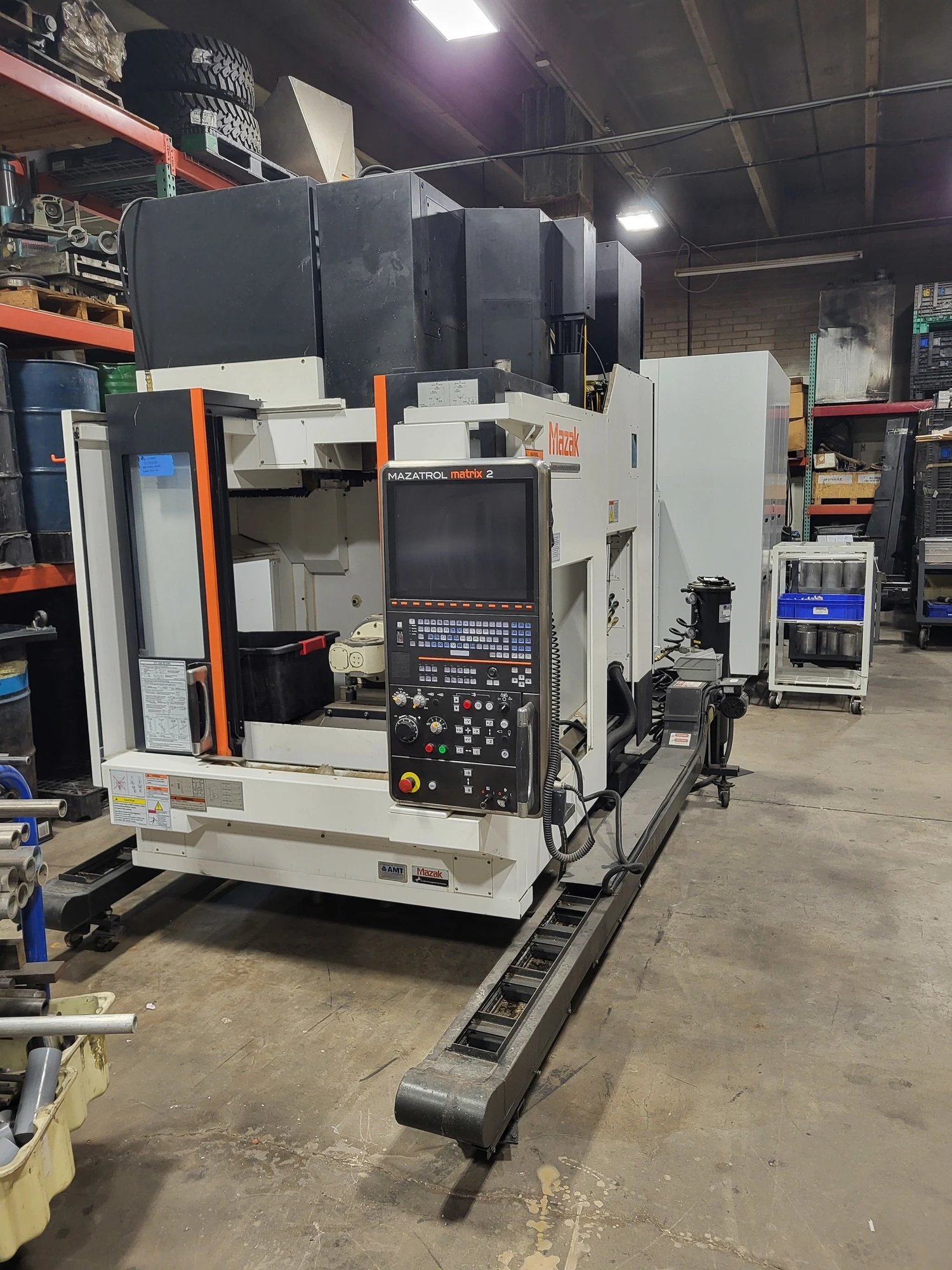

USED 2013 MAZAK VCC-5X 20K
Overview
Description
2013 Mazak VCC 5X 5-Axis Machining Center with Matrix 2 Control, 20,000 RPM High Precision Spindle, 30 ATC, Through Spindle Coolant, Roller Drive RT100 3.94" 5th Axis.
Specifications
| X | 20.49 mm | 0.8067" |
|---|---|---|
| Y | 16.95 mm | 0.6673" |
| Z | 20.04 mm | 0.789" |
| # Axis | 5 | 5 |
| Power | 30 kW | 40.2 hp |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-40 | CAT-40 |
| Control | CNC (Matrix 2) | CNC (Matrix 2) |
| Dimensions | 120" x 73" x 106" | 120" x 73" x 106" |
| Weight | 12,000 LBS | 12,000 LBS |
Table Size.................20.49" x 15.7"
Max Weight on Table........660 LBS
Table to Spindle Nose......3.9" - 23.6"
X-Axis Travel..............20.49"
Y-Axis Travel..............16.95"
Z-Axis Travel..............20.04"
A-Axis.....................-140° -15° ( Table Tilt )
C-Axis.....................360° ( Table Rotate )
Min. Increment.............0.001°
Taper Size.................CAT-40
Speed......................20,000 RPM
Spindle Power..............30 HP
ATC Capacity...............30 Tools
Max Tool Size..............4.92" X 7.5"
Max Tool Weight............18 LBS
Tool Change Time...........1.7 Second
Rapids (X & Y).............1575 Inch Per Minute
Z-Axis Rapids..............2047 Inch Per Minute
A-Axis Rapids..............40 RPM
C-Axis Rapids..............50 RPM
Cutting Feedrate...........984 IPM
Overall Dimensions.........120" X 73" X 106" High
Weight.....................12,000 LBS
Equipped With
Mazatrol Matrix 2 CNC Control w/ 19" Display
Simultaneous/Contouring 5 Axis Cutting
20,000 RPM High Precision Spindle
Coolant through Spindle
30 Tools High Speed ATC
Roller Drive RT100 3.94" 5th Axis Rotary
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
