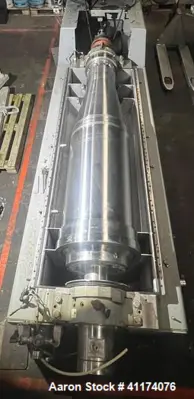

USED GEA WESTFALIA CF 5000 FISHMASTER

🏭 Manufacturer Information

Manufacturer: GEA Westfalia Separator Group

Product Line: Fishmaster

Model / Type: CF 5000

Equipment Type: Solid Bowl Decanter Centrifuge

Year Built: 2015

Condition: Used – Reported Rebuild

Previous Application: Fish oil processing

⚙️ Description

This Used GEA Westfalia Fishmaster CF 5000 Decanter Centrifuge is a purpose-built, heavy-duty separation system designed specifically for fish oil, fish meal, and protein recovery applications. GEA Westfalia’s Fishmaster series is widely used in the marine and rendering industries for its robust construction, high separation efficiency, and continuous-duty reliability.
The centrifuge features Alloy 2304 (EN 1.4462) duplex stainless steel in all product contact areas, providing excellent corrosion resistance and long service life in aggressive, high-solids environments. Designed for 2-phase separation (liquid/solids), the CF 5000 operates at bowl speeds of up to 4,000 RPM and includes a single row of lined cake discharge ports to reduce wear and extend component life.

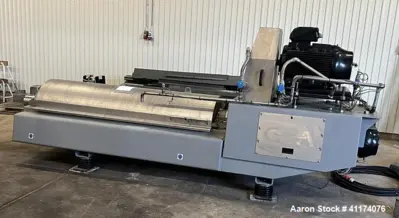

This unit is offered complete with base, casing, gearbox, back drive, and control panel, making it well suited for integration into existing fish oil, protein, or rendering process lines.

📏 Specifications

Model: CF 5000

Series: Fishmaster

Centrifuge Type: Solid bowl decanter

Separation Design: 2-phase (liquid / solids)

Maximum Bowl Speed: 4,000 RPM

Product Contact Material: Alloy 2304 (1.4462) Duplex Stainless Steel

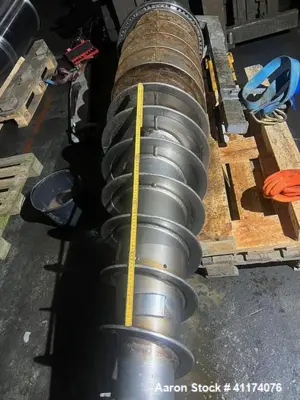

Conveyor: Single lead

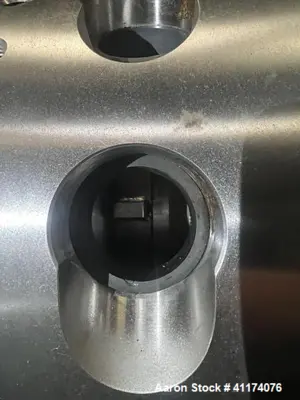

Cake Discharge: Single row of lined solids discharge ports

Included Components:

Base frame

Casing

Gearbox

Back drive

Control panel

Year Built: 2015

Condition: Used, reported rebuilt

🧩 Applications

Fish oil separation and recovery

Fish meal processing

Marine protein recovery

Rendering and byproduct processing

Animal feed ingredient production

Food-grade oil clarification

Industrial sludge separation (light solids)

Continuous solid/liquid separation

High-fat content slurry processing

Marine and aquaculture operations

⚗️ What This Might Be Used For

Separating oil from fish solids

Recovering valuable proteins and oils

Clarifying fish oil streams

Reducing moisture in fish meal solids

Continuous processing in rendering plants

📦 Products This Is Commonly Used For

Fish oil

Fish meal

Marine proteins

Animal feed oils

Aquaculture byproducts

Food-grade marine oils

Protein slurries

Rendering residues

Process effluents

High-fat organic slurries
