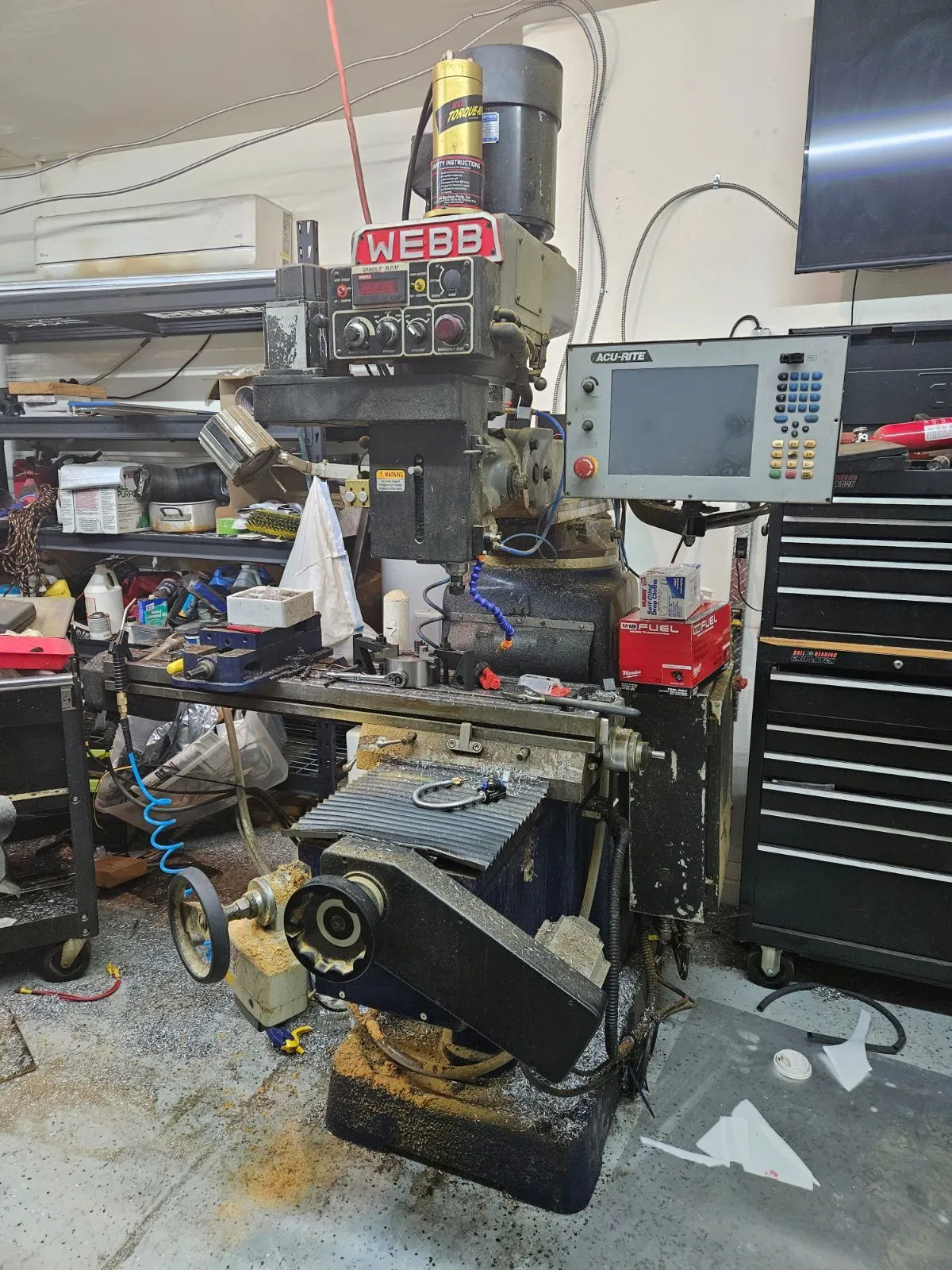

2013 Webb Champ 3EVS 4-Axis CNC Vertical Milling Machine with Acu-Rite 4-Axis CNC Control, Power Draw Bar, Automatic Oiler, and 4th Axis Rotary Table.
| X | 36" | 914.4 mm |
| Y | 16" | 406.4 mm |
| Z | 0" | 0 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,200 RPM | 4,200 RPM |
| Taper | R8 | R8 |
| Table-W | 10" | 254 mm |
| Table-L | 48" | 1,219.2 mm |
| # Axis | 4 | 4 |
| Control | CNC (Acu-Rite) | CNC (Acu-Rite) |
| Dimensions | 64" x 54" x 96" | 64" x 54" x 96" |
| Weight | 3,500 LBS | 3,500 LBS |
Table Size.........................48" x 10"
Longitudinal Travel................36"
Corss Travel.......................16"
Vertical Travel....................18-1/2"
Swivel of Head.....................90 Degrees
Head Tilt..........................45 Degrees
Ram Travel.........................24"
Spindle Motor......................3 HP
Spindle Taper......................R8
Variable Speed.....................50-4,200 RPM
Electrics..........................3PH/220V
Machine Dimensions.................64" x 54" x 96"
Machine Weight.....................3,500 LBS
ACU-RITE CNC Control
Power Draw Bar
Automatic Oiler
Post Processor
4th Axis Rotary Table
VIDEO:
https://www.youtube.com/watch?v=Yj88Xz8aPsI
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
